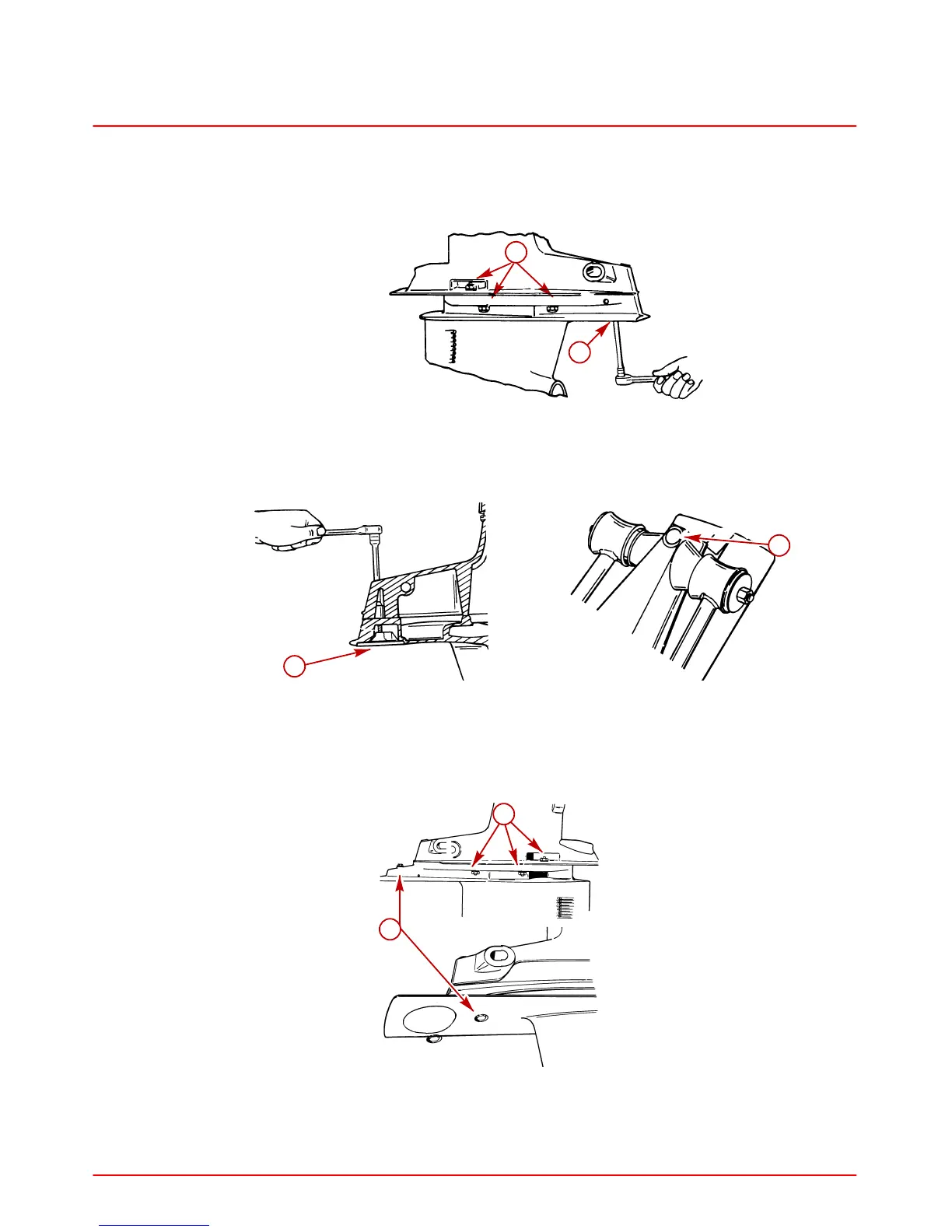

Install Gear Housing To Drive Shaft Housing
1. Bravo One, Bravo XZ, Bravo XR, and Diesel Bravo One X:
a. Install gear housing to drive shaft housing. Torque nuts and bolt to 35 lb-ft (47 Nm).
a
b
76801
a-Nuts and Washers (6)
b-Bolt (Located in Trim Tab Cavity) (1)
b. Install anodic plate. Torque to 20 lb-ft (27 Nm). Install rubber plug.
22093
76800
a
b
a-Anodic Plate
b-Rubber Plug
2. Bravo Two and Diesel Bravo Two X:
a. Install gear housing to drive shaft housing. Torque nuts and bolt to 35 lb-ft (47 Nm).
76802
b
a
a-Nuts and Washers (6)
b-Bolt (Located in Front of Trim Tab) (1)
