Mercury 90-863160

DUAL POWER TRIM SYSTEM SERVICE MANUAL NUMBER 28
Page 5C-10 90-863160 MAY 2000

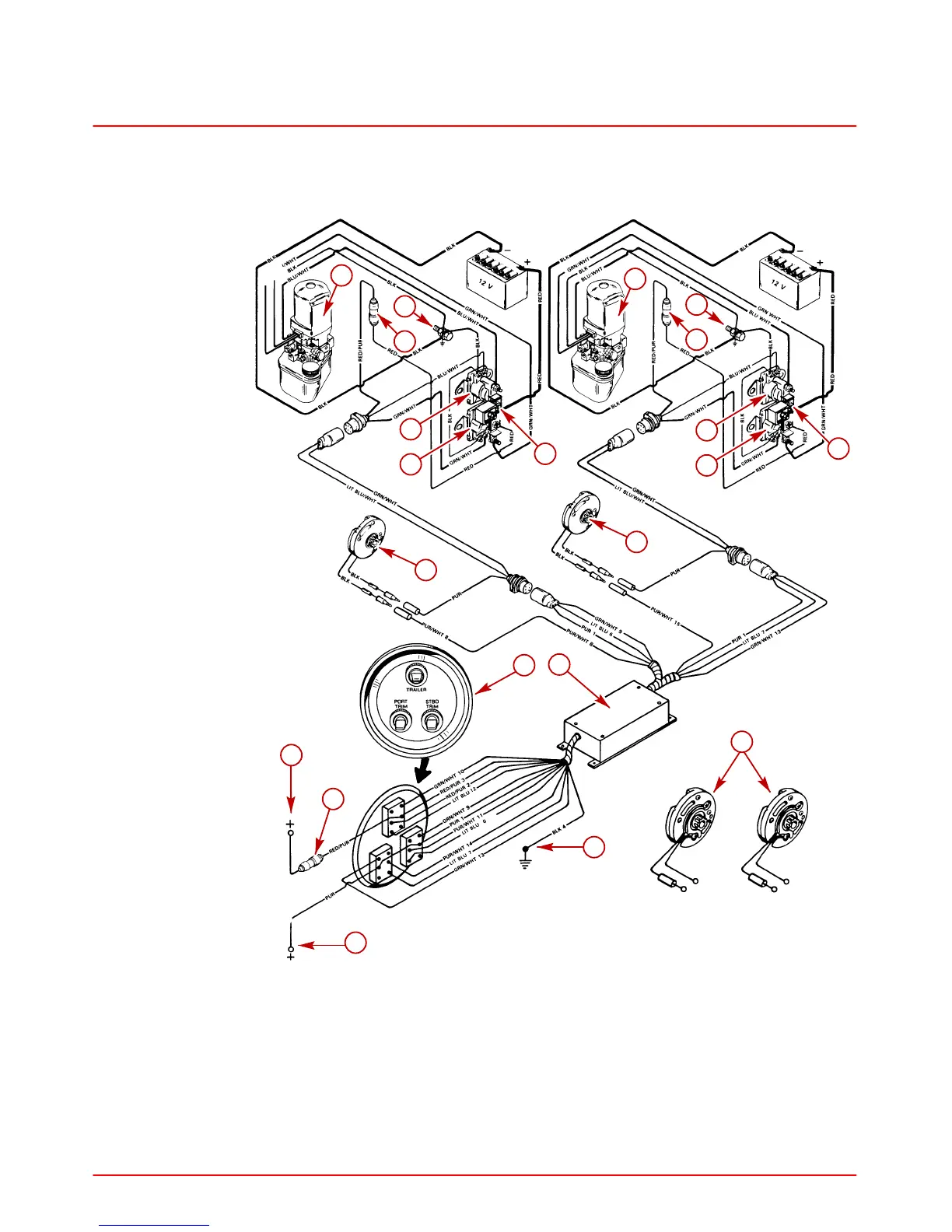

Wiring Diagrams
Dual Trim Harnesses
BLK D Black
BLU D Blue
BRN D Brown
GRY D Gray
GRN D Green
ORN D Orange
PNK D Pink
PUR D Purple
RED D Red
TAN D Tan
WHT D White
YEL D Yellow
LIT D Light
DRK D Dark
e
a
b
c
d
c
d
f
g
e
f
g
h
h
k
j
n
m
l
c
i
76903
a-Starboard Trim Pump
b-Port Trim Pump
c-20 Amp Fuse
d-Ground Bolt (Floor Mount)
e-UP Solenoid
f-DOWN Solenoid
g-110 Amp Fuse
h-Trim Limit Switch
i-Trim Switch (Various Styles)
j-Control Module
k-Trim Position Sender
l-12 Volt Power From Battery
m- Ground Wire
n-12 Volt Power From Switched Side Of
Ignition Switch
