Mercury 90-863160

OILDYNE TRIM PUMP SERVICE MANUAL NUMBER 28
Page 5A-44 90-863160 MAY 2000

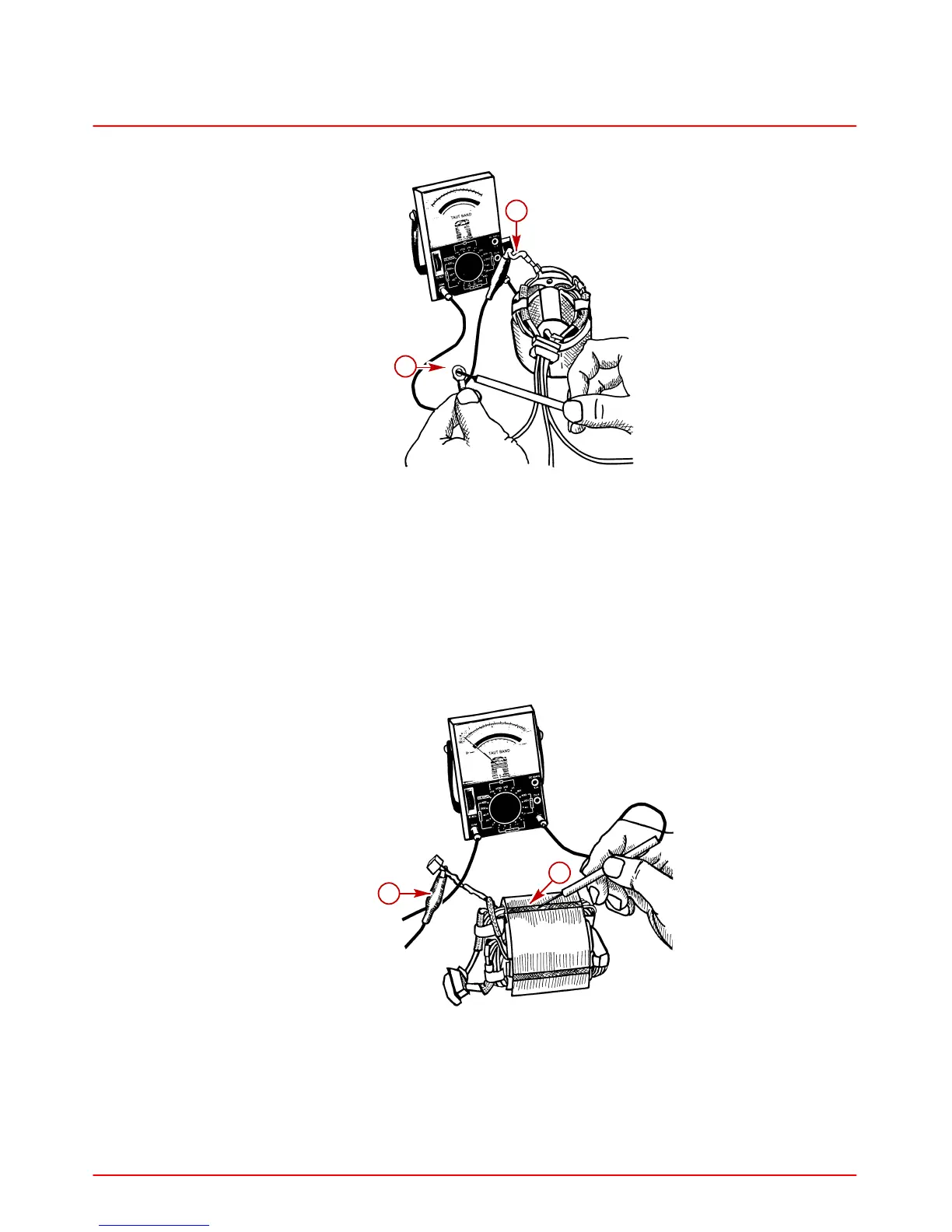

3. Connect the ohmmeter between the field brush lead and the GREEN/WHITE lead.
22642
a
b
a-Ohmmeter Lead - Connected to Brush Lead
b-Ohmmeter Lead - Connected to GREEN/WHITE Lead
4. Zero ohms indicated (full continuity) - Field OK.
Zero ohms not indicated (no continuity) - Replace field assembly.
Test for Short in Field
1. Connect the ohmmeter between the field brush lead and the field frame.
22643
a
b
a-Field Frame
b-Field Brush Lead
2. Zero ohms indicated (full continuity) - Short indicated (replace field assembly).
Zero ohms not indicated (no continuity) - Field OK.
