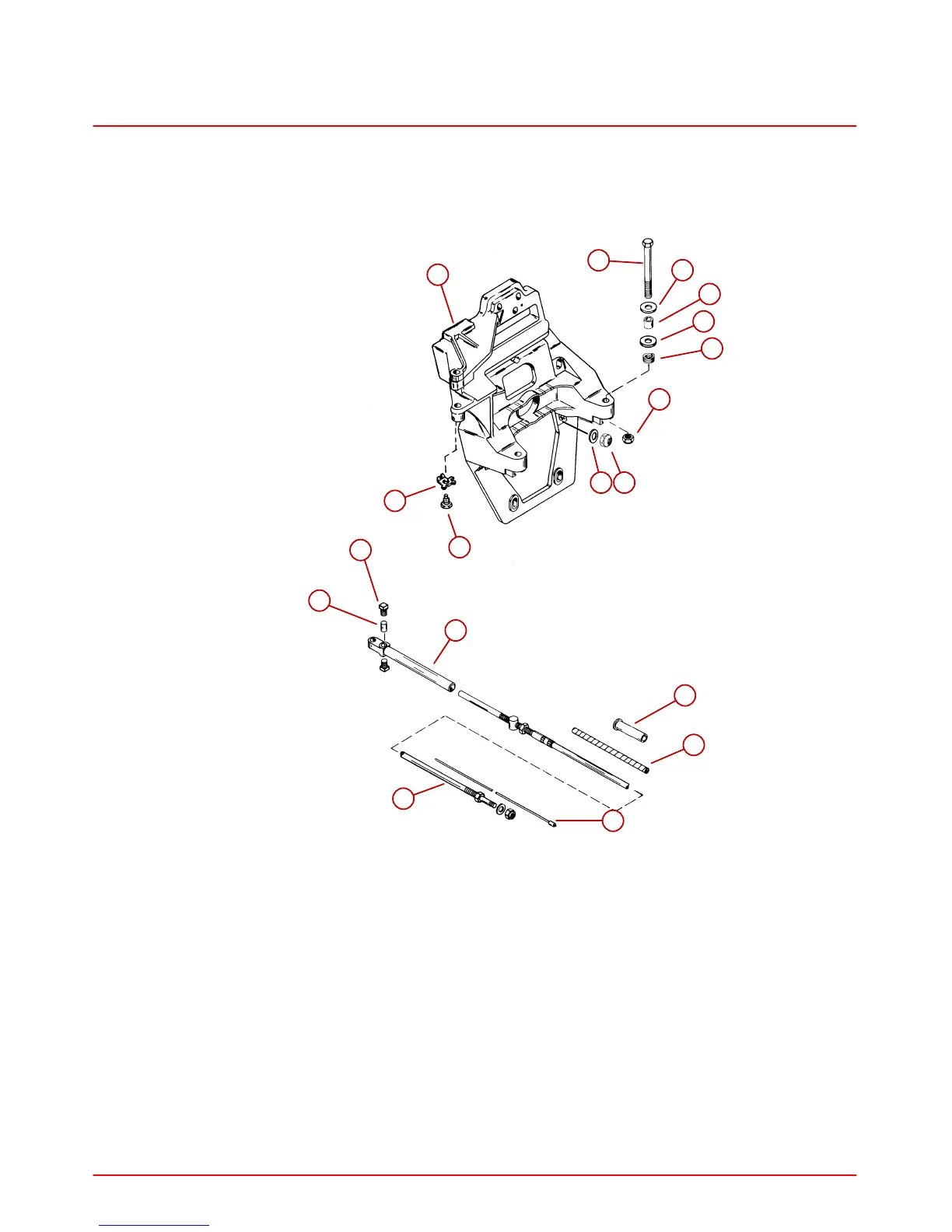

Bravo Transom Assembly Exploded Views
Inner Transom Plate Components
76626
1
2
3
4
5
6
7
8
9
10 11
12
13
14
15
16
17
18
1-Transom Plate Assembly
2-Pivot Bolts
3-Tab Washers
4-Rear Engine Mounting Bolt
5-Washer
6-Spacer
7-Washer - Fiber
8-Lockwasher - Double Wound
9-Locknut
10 - Washer
11 - Locknut
12 - Shift Cable Casing
13 - Core Wire Anchor
14 - Anchor Screws (2)
15 - End Guide
16 - Gimbal Housing Insert
17 - Core Wire
