BRAVO ONE GEAR HOUSING
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 3B-29
Speedometer Water Passage
Pickup Inspection and Cleaning

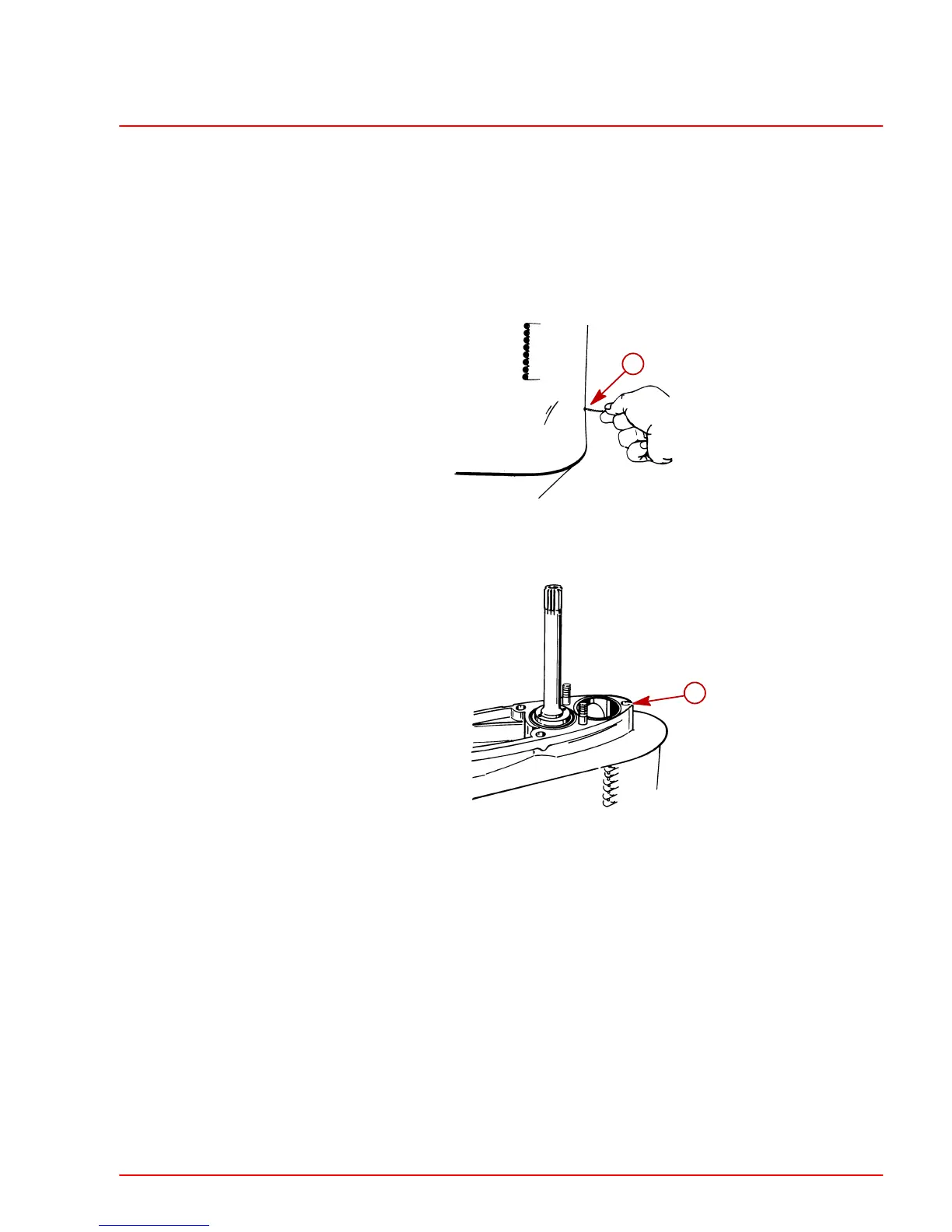

1. Inspect opening (pitot tube), on leading edge of gear housing, for obstruction. Clean
opening with a short piece of wire. If obstruction can not be removed with wire, carefully
reopen tube using a 5/64 in. (2 mm) diameter drill bit. Do not drill beyond a depth of
2-7/16 in. (62 mm).
22462
a
a-Pitot Tube
2. Inspect water passage seal for nicks, cuts or distortion. Replace if necessary.
22085
a
a-Water Passage Seal
