TRIM CYLINDERS SERVICE MANUAL NUMBER 28
Page 5B-14 90-863160 MAY 2000
Reassembly
CAUTION
Ensure that work area and all components are clean before reassembling trim cylin-
ders. Power Trim components can become damaged if dirt gets into system.
1. Install small O-ring into end of piston rod.

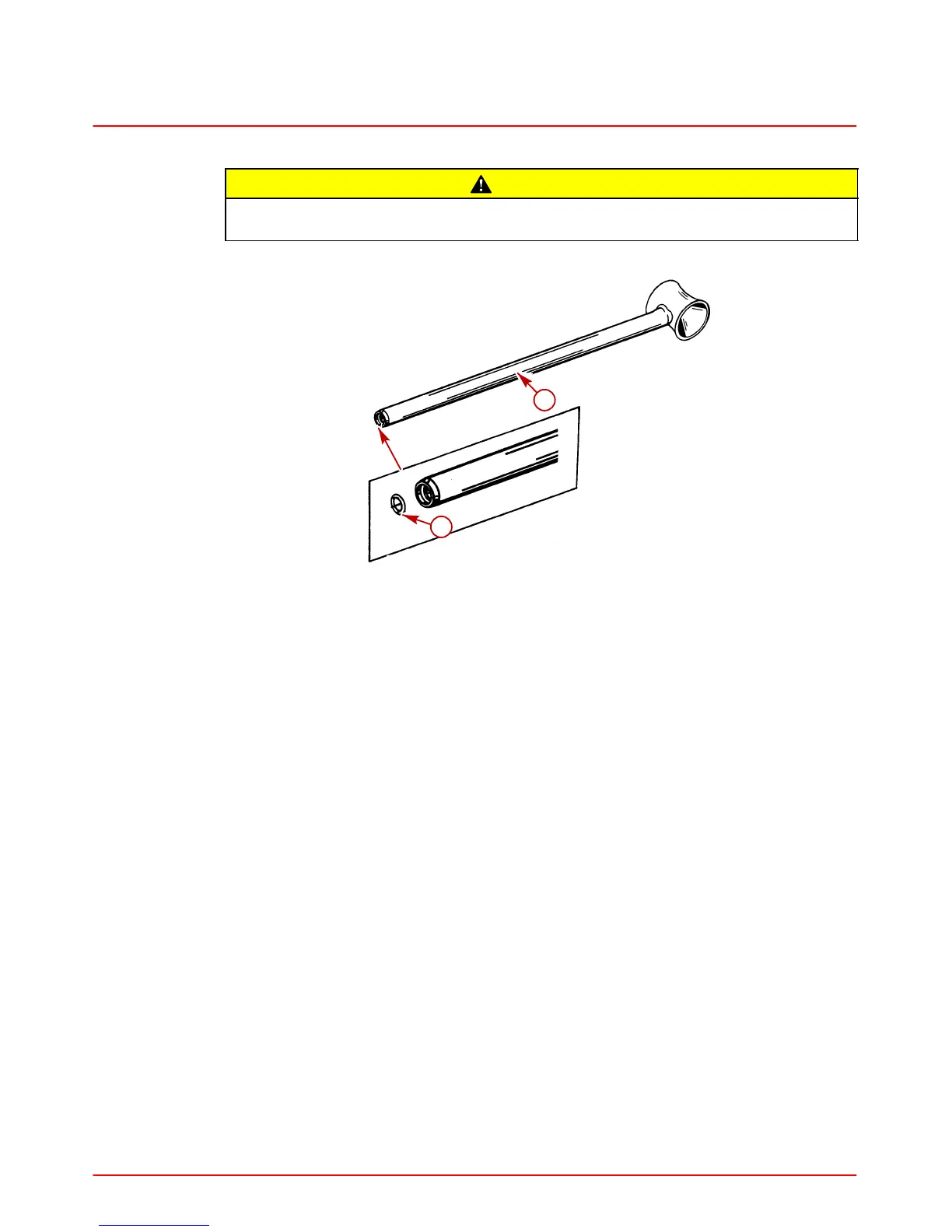

22132
b
a
a-Small O-ring
b-End Of Piston Rod
2. Install small O-rings and continuity spring into end cap.
3. Install rod scraper, plain washer and retaining ring into end cap.
4. Install large O-ring onto outside diameter of end cap.
