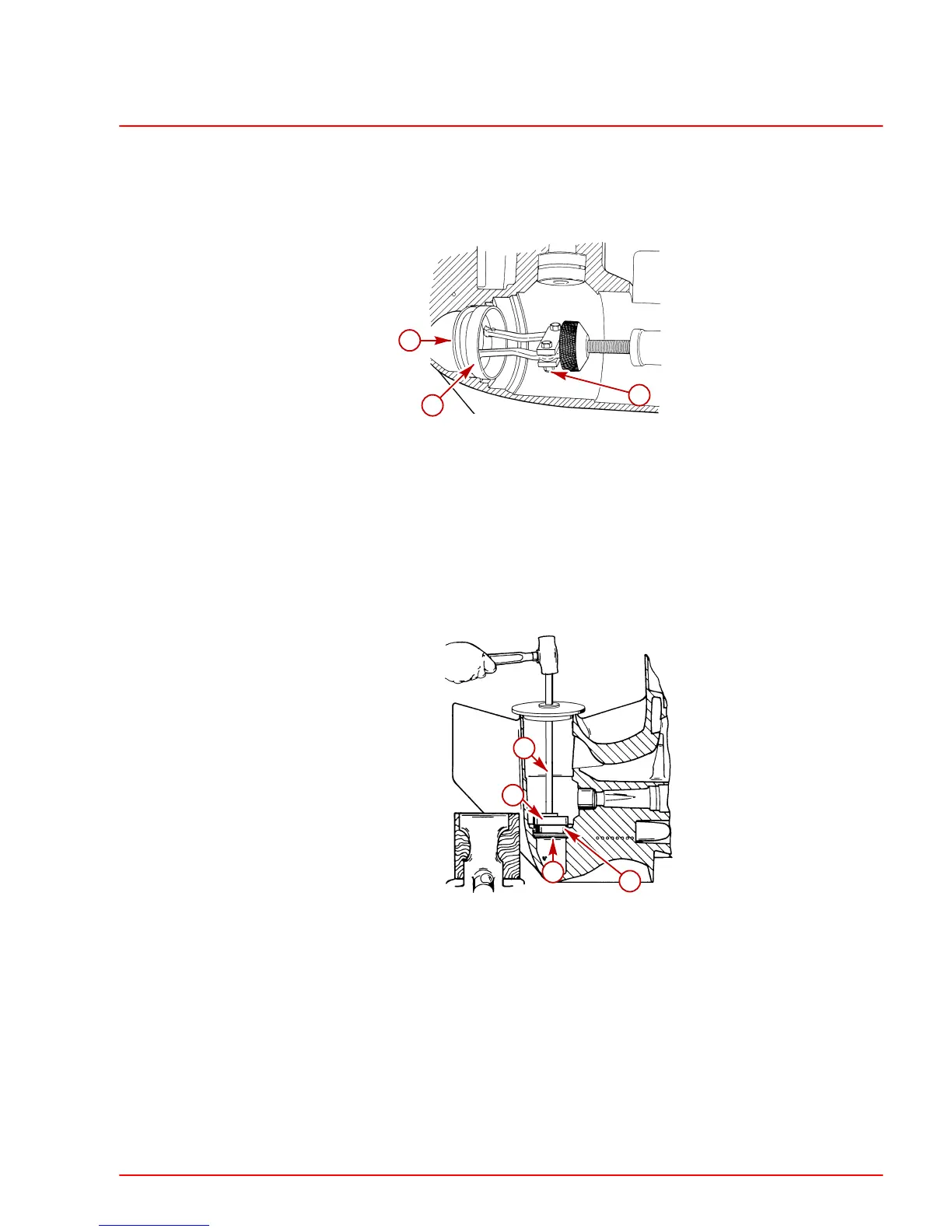

Bearing Cup Removal
1. Remove bearing cup and shims using slide hammer puller. Measure shims for reas-
sembly reference.
NOTE: When pulling bearing cup with puller, shims will be damaged. DO NOT reuse shims.
19808
b
c
a
a-Slide Hammer Puller (P/N 91-34569A1)
b-Bearing Cup
c-Shims
Bearing Cup Installation
1. Install front driven gear bearing cup and original thickness shims using bearing cup driv-
er and driver rod. If shims were lost or damaged where original thickness cannot be de-
termined, install a .015 in. (0.38 mm) shim for a starting point. Ensure cup is not canted.
Coat cup outer diameter with Quicksilver High Performance Gear Lube.
75958
b
a
c
d
a-Shim(s)
b-Bearing Cup
c-Driver (P/N 91-805454)
d-Old Propeller Shaft or Driver Rod
