OILDYNE TRIM PUMP SERVICE MANUAL NUMBER 28
Page 5A-12 90-863160 MAY 2000
Trim Cylinder Internal Leak Test
IMPORTANT: Before performing the following test, ensure that OUT/UP pressure
meets specifications designated in OUT/UP pressure test.
1. Reconnect the trim cylinder hoses if disconnected.
a. Remove the plugs and caps.
b. Install the OUT/UP hose to the forward hole on the hydraulic connector. Tighten se-
curely.
c. Install the IN/DOWN hose to the aft hole on the hydraulic connector. Tighten secure-
ly.

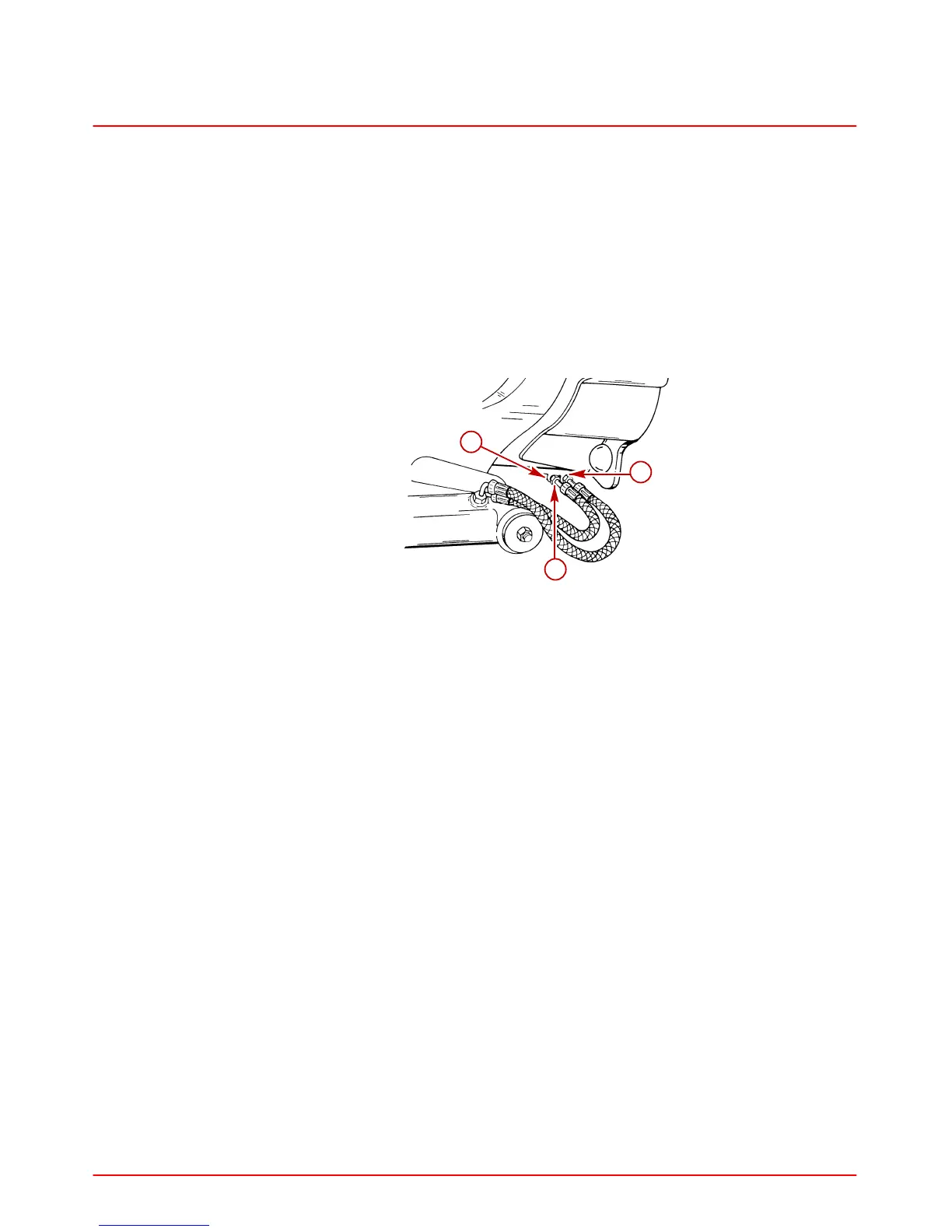

50391
a
b
c
a-OUT/UP Hose
b-IN/DOWN Hose
c-Hydraulic Connector
