Gimbal Ring Servicing

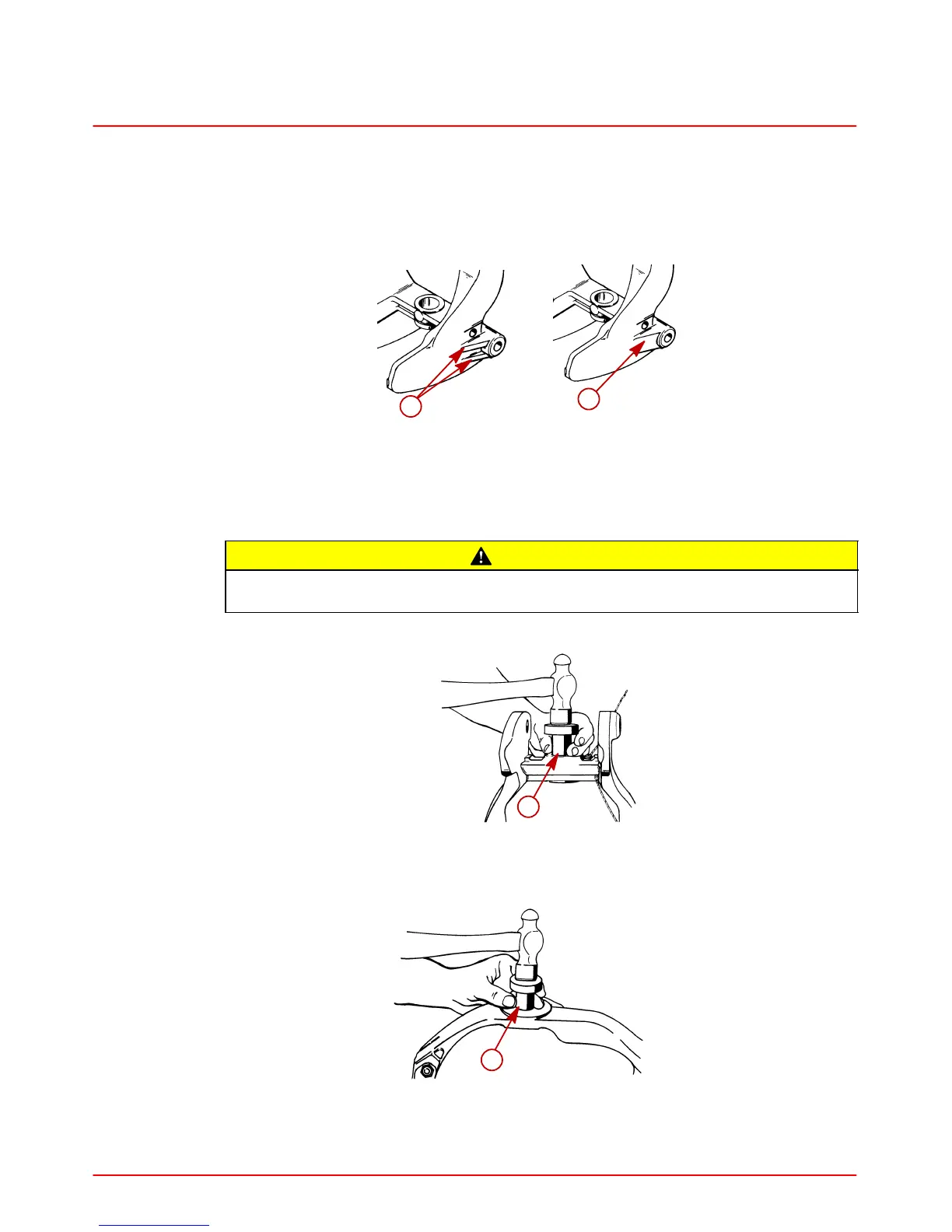

GIMBAL RING IDENTIFICATION
The gimbal ring used on various model transom assemblies can be identified as shown in
the following illustration:
75272
b
a
a-Standard Gimbal Ring Identification (Two Ribs)
b-Magnum and High Performance Gimbal Ring Identification (Filled Area)
REMOVING BUSHINGS
CAUTION
Be careful not to damage bores when removing self-lubricating bushings in the fol-
lowing steps.
1. Tap out and remove gimbal ring lower swivel pin bushing using a suitable mandrel.
22451
a
a-Suitable Mandrel
2. Remove gimbal ring hinge pin bushings (port and starboard) using a suitable mandrel.
22452
a
a-Suitable Mandrel
