Exhaust Bellows Replacement
NOTE: (For Exhaust Tube Replacement, see Section 4A)

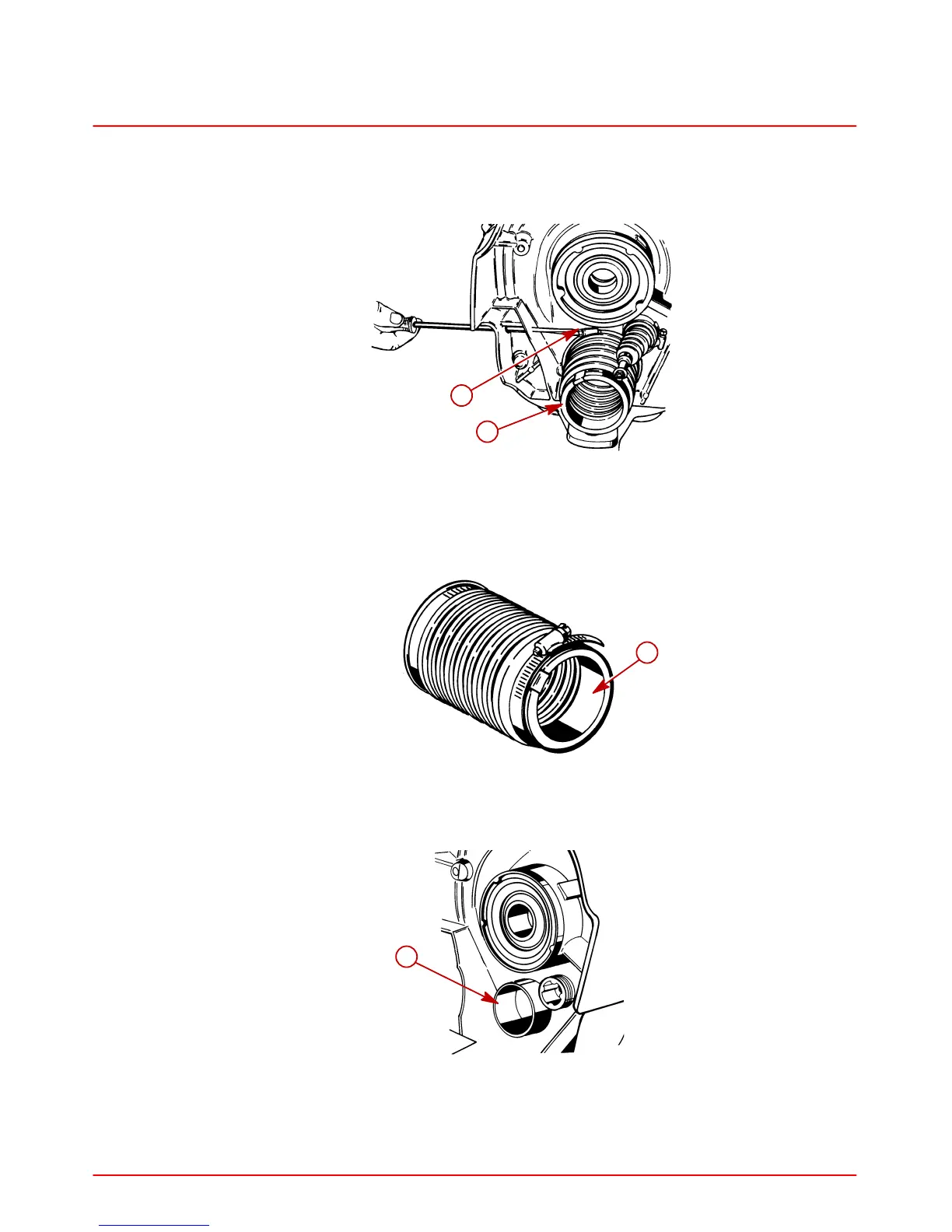

1. Remove exhaust bellows from gimbal housing.
76660
b
a
a-Exhaust Bellows
b-Hose Clamp
2. If old exhaust bellows will be reinstalled, remove old adhesive from exhaust bellows
mounting surfaces with lacquer thinner.
22450
a
a-Mounting Surface
3. Clean exhaust bellows mounting flange with sandpaper and wipe clean with lacquer
thinner.
76662
a
a-Mounting Flange
