POWER STEERING SERVICE MANUAL NUMBER 28
Page 6A-8 90-863160 MAY 2000
CAUTION
POWER STEERING EQUIPPED UNITS ONLY - If cables with improper dimensions
are installed, severe damage to transom assembly and/or steering system may re-
sult.
1. Steering cable must be the correct length, particularly when installed in larger boats.
2. Avoid sharp bends, kinks or loops in cable.
3. Power Steering Models: Fully extended steering cable end dimension must be correct.

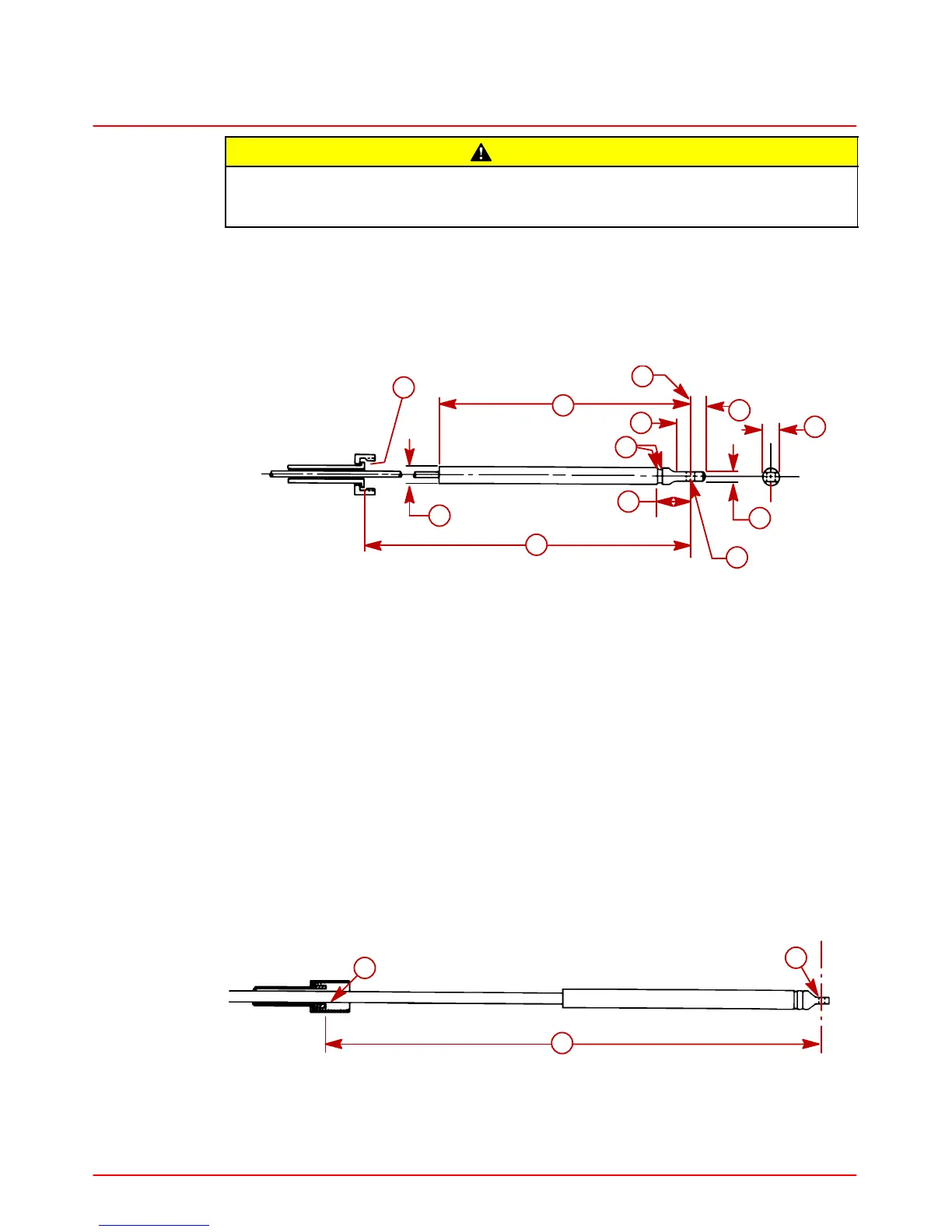

Steering Cable Specifications
21435
C
L
a
b
c
d
e
f
g
h
i
j
k
l
a-Coupler Nut - 7/8 - 14 UNF - 2B Thread
b-11-3/4 in. (298 mm) Min.
c-Interface Point
d-1/2 in. (12.7 mm) Max.
e-27/64 in. (10.7 mm) Min. Flat
f-7/64 in. (3.1 mm) Min. Radius
g-5/8 in. (15.9 mm) Max. Diameter End Fitting
h-3/8 in. (9.5 mm)
i-3/8 in. (9.8 mm) Diameter Thru Hole, Chamfered Each Side
j-1-3/8 in. (34.9 mm) Max.
k-5/8 in. (15.9 mm) Diameter Tube
l-Cable Travel:
-Mid-Travel Position - 16-7/8 in. (428.6 mm).
-Total Travel To Be 8 in. (203.2 mm) Min., to 9 in. (228.6 mm) Max.
-Travel Each Side of Mid-Travel Position - 4 in. (101.6 mm) Min., 4-1/2 in.
(114.3 mm) Max.
a
b
c
a-Steering Cable Mounting Flange
b-Center of Hole in Steering Cable End
c-21-3/8 in. (543 mm) Maximum
