DRIVE SHAFT HOUSING
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 3A-39

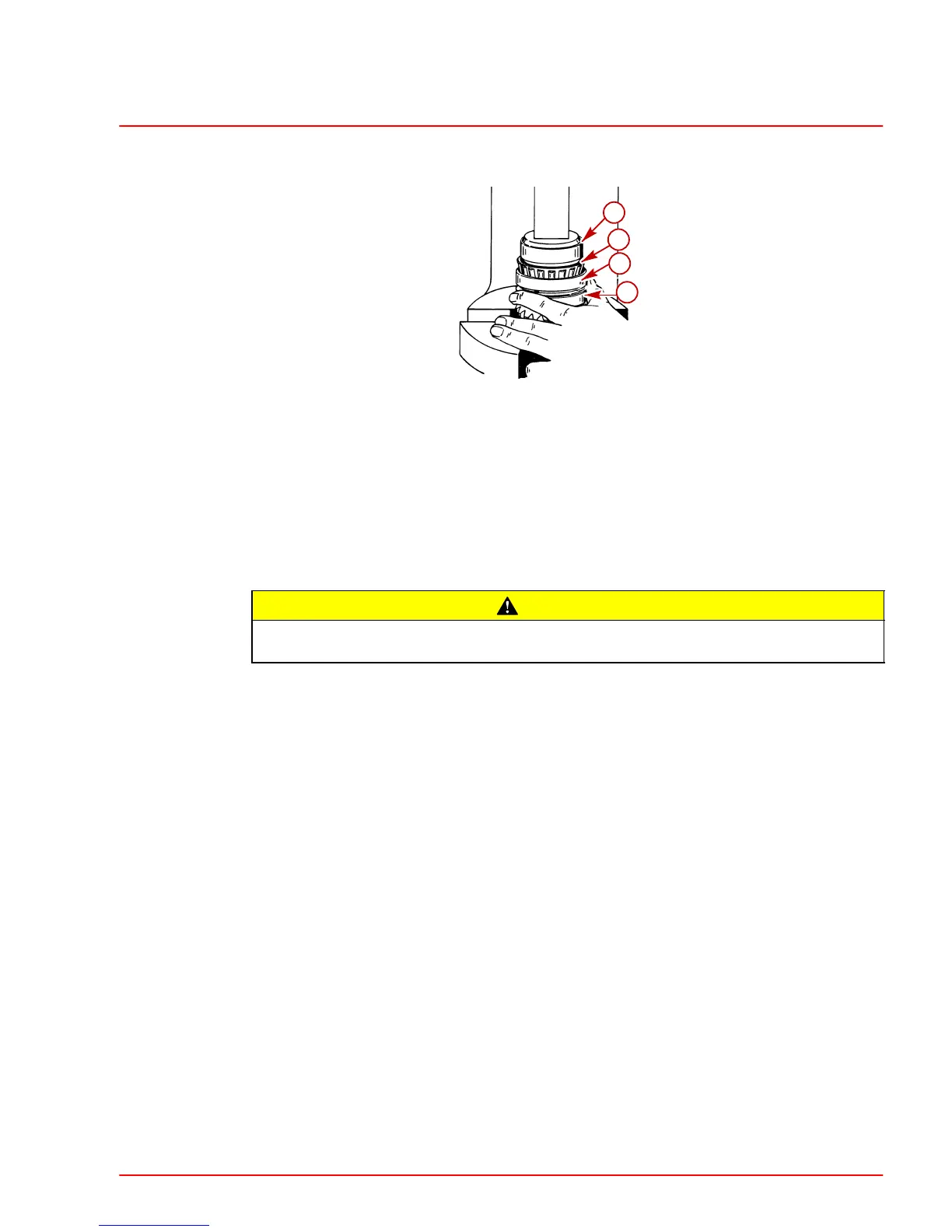

e. Press larger outside diameter bearing onto gear. Press bearing to the point where
bearing rollers initially make contact with tapered bearing cup.
22393
d
a
b
c
a-Bearing – Larger Outside Diameter.
b-Larger Outside Diameter Bearing Cup
c-Spacer – Must Move Freely
d-Suitable Mandrel – Must Push on Inner Bearing Race
NOTE: If a slight over press condition occurs (spacer does not move freely) – support large
O.D. bearing cup with universal puller plate and lightly tap end of pinion gear with a soft ham-
mer. Failure to do this can result in premature bearing failure.
CAUTION
U-joint and pinion gear assembly must be reassembled as shown in following steps
or damage to drive unit will occur during reassembly.
