DRIVE SHAFT HOUSING SERVICE MANUAL NUMBER 28
Page 3A-58 90-863160 MAY 2000

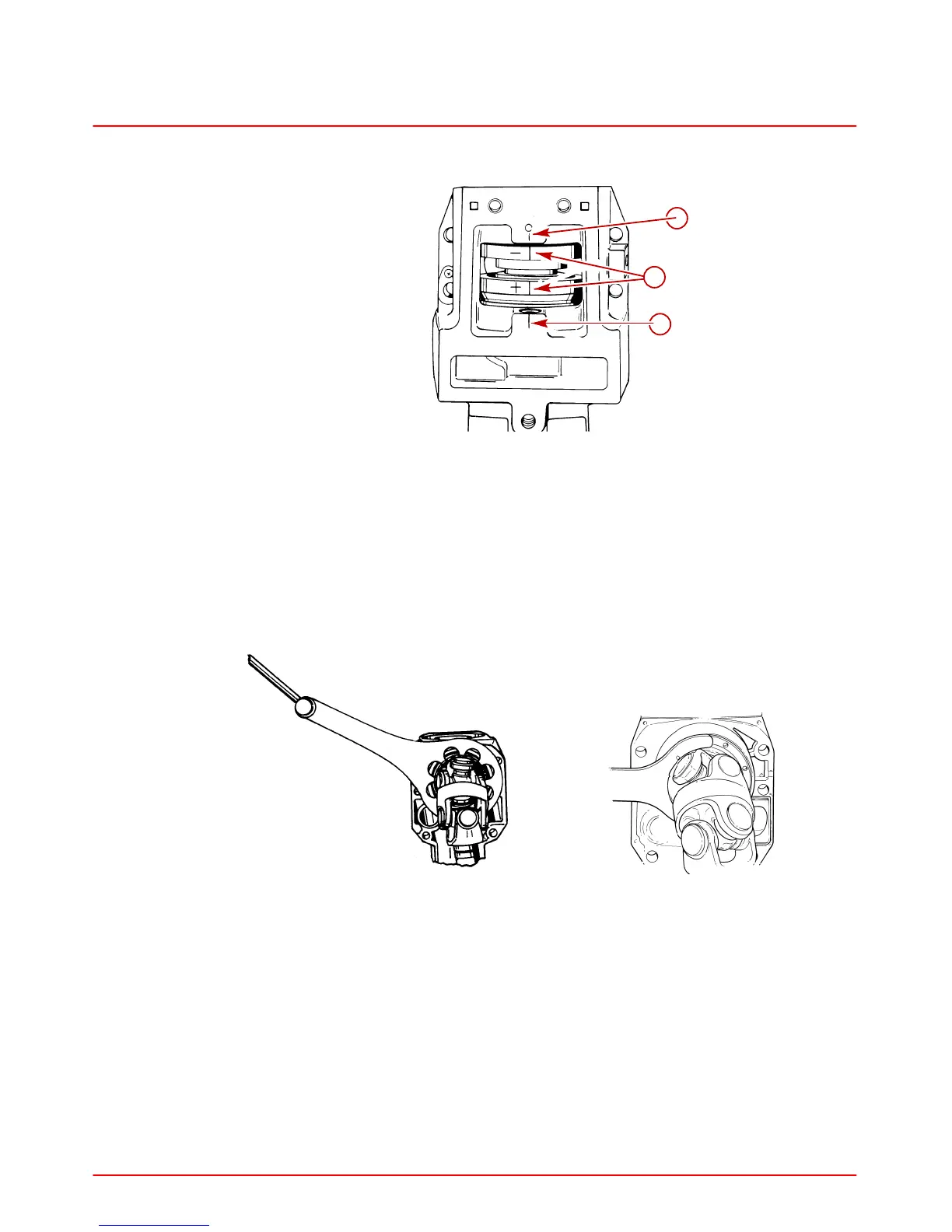

4. Align clutch gear timing marks with index marks on drive shaft housing as close as pos-
sible.
a
b
b
6
4
6
1
76805
a-Timing Marks
b-Index Marks
IMPORTANT: Ensure that the retainer nut is not cross-threaded by turning the retainer nut
counterclockwise until thread engagement is felt; then turn retainer nut clockwise.
5. Install U-joint assembly into drive shaft housing. Apply Special Lubricant 101 to threads
of retainer nut and install. Torque retainer nut to 200 lb-ft (271 Nm).
NOTE: On Bravo X, XZ, XR & Diesel Bravo, the retainer nut must be started using retainer
nut spanner wrench.
22094
77078
Standard Bravo Bravo X, XZ, XR, & Diesel Bravo
