BRAVO TWO GEAR HOUSING
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 3C-11

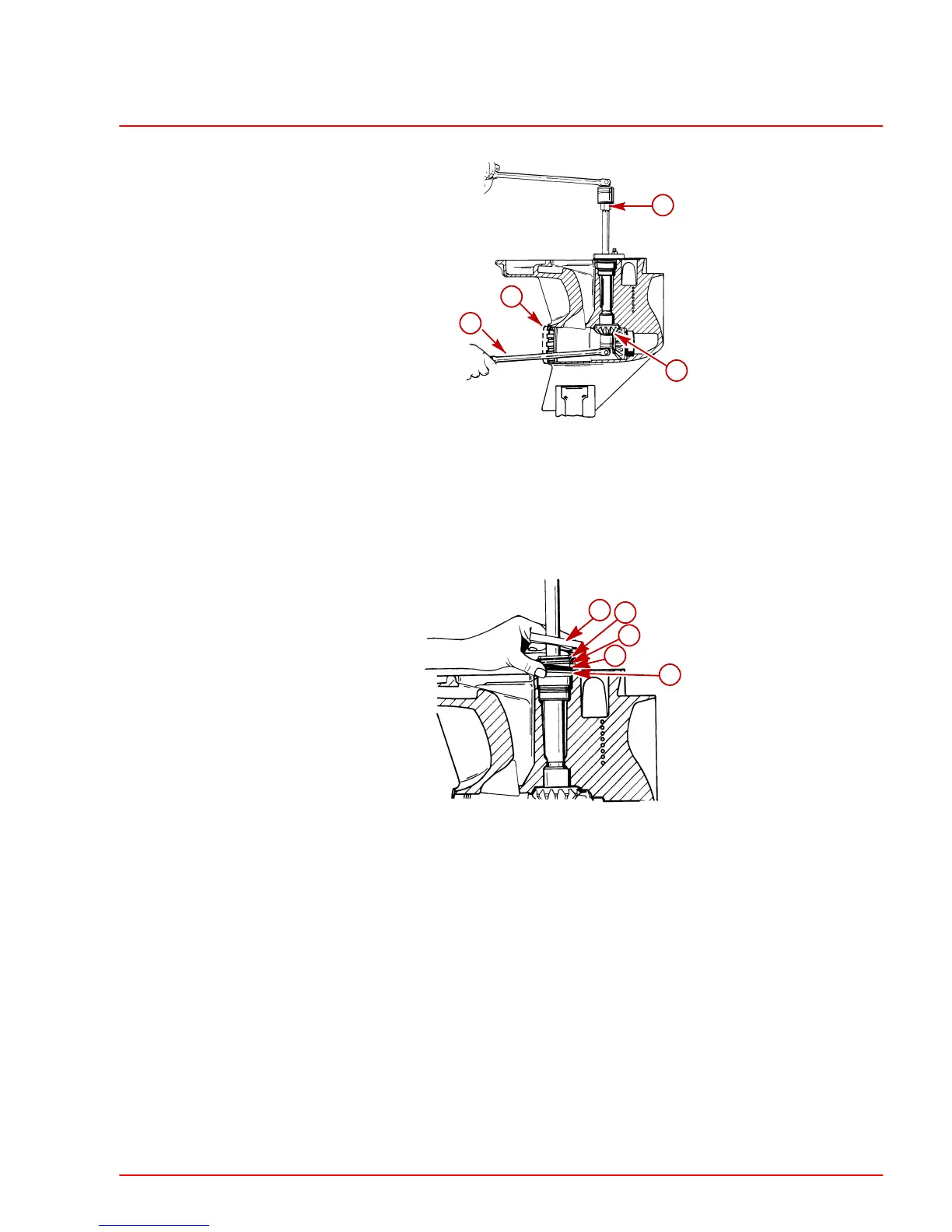

9. Remove pinion gear nut and washer. Hold drive shaft using drive shaft adaptor tool.
75921
c
b
d
a
a-Drive Shaft Adaptor Tool (91-61077T)
b-Breaker Bar And Socket
c-Pinion Gear
d-Bearing Carrier Retainer
10. Remove clamp plate (installed in Step 2), then remove O-ring, spacer, shim(s) and tab
washer. Retain shims for reassembly.
22262
a
b
c
d
e
a-Drive Shaft
b-Pinion Gear
c-Spacer
d-Shim(s)
e-Tab Washer
