SERVICE PROCEDURES REQUIRING MINOR DISASSEMBLY
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 4A-25

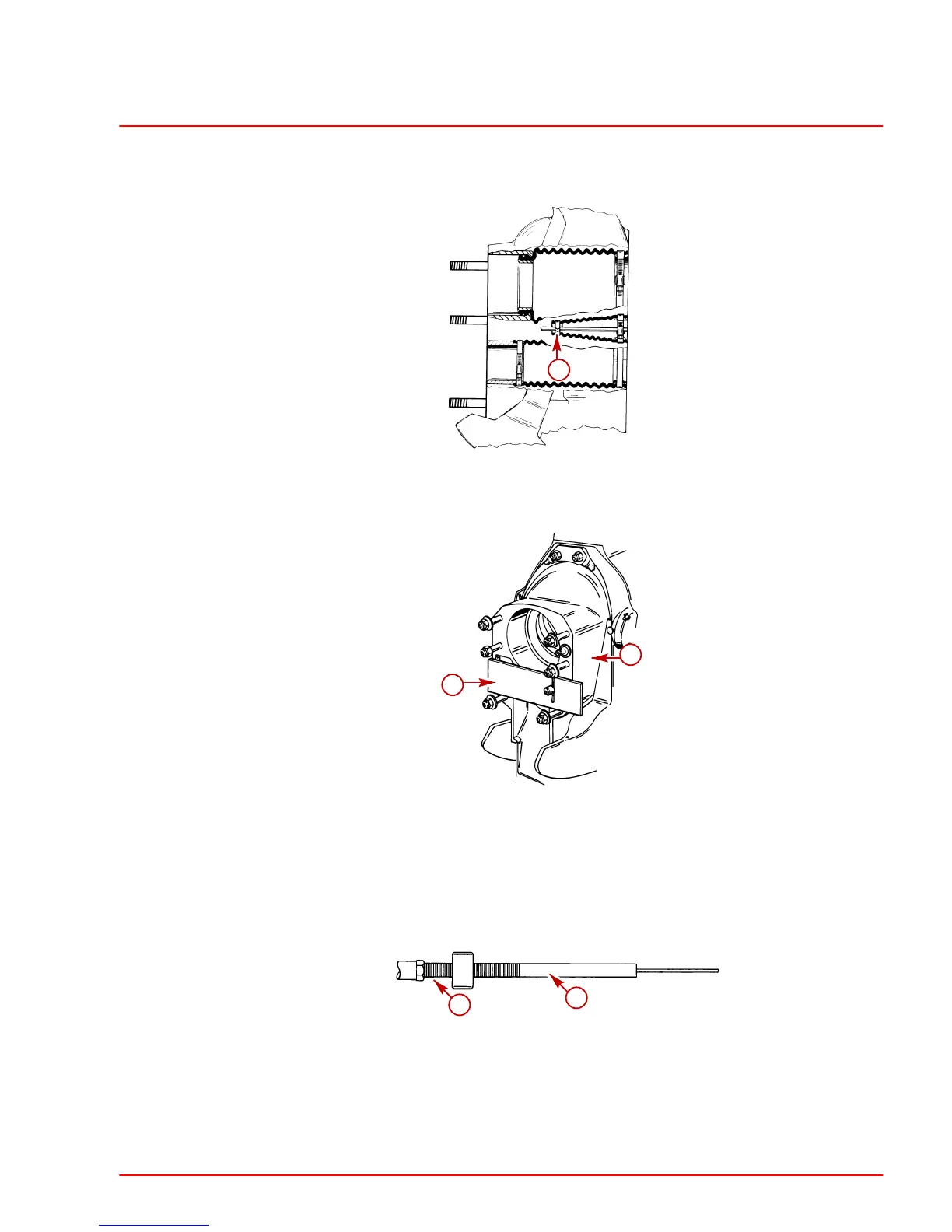

4. Install and compress shift cable bellows crimp clamp, maintaining a 1/2 in. diameter
round O.D. Ensure that clamp is crimped evenly to maintain a good seal between
bellows and shift cable. Refer to “Crimp Clamp Tool.” Do NOT allow bellows to flatten.
22117
a
a-Crimp Clamp
5. Install core wire locating tool on face of bell housing.
50327
a
b
a-Bell Housing
b-Core Wire Locating Tool (P/N 91-17263)
6. Install threaded tube until it bottoms.
7. Tighten finger tight.
8. Tighten jam nut securely.
22183
b
a
a-Threaded Tube
b-Jam Nut
