OILDYNE TRIM PUMP SERVICE MANUAL NUMBER 28
Page 5A-36 90-863160 MAY 2000

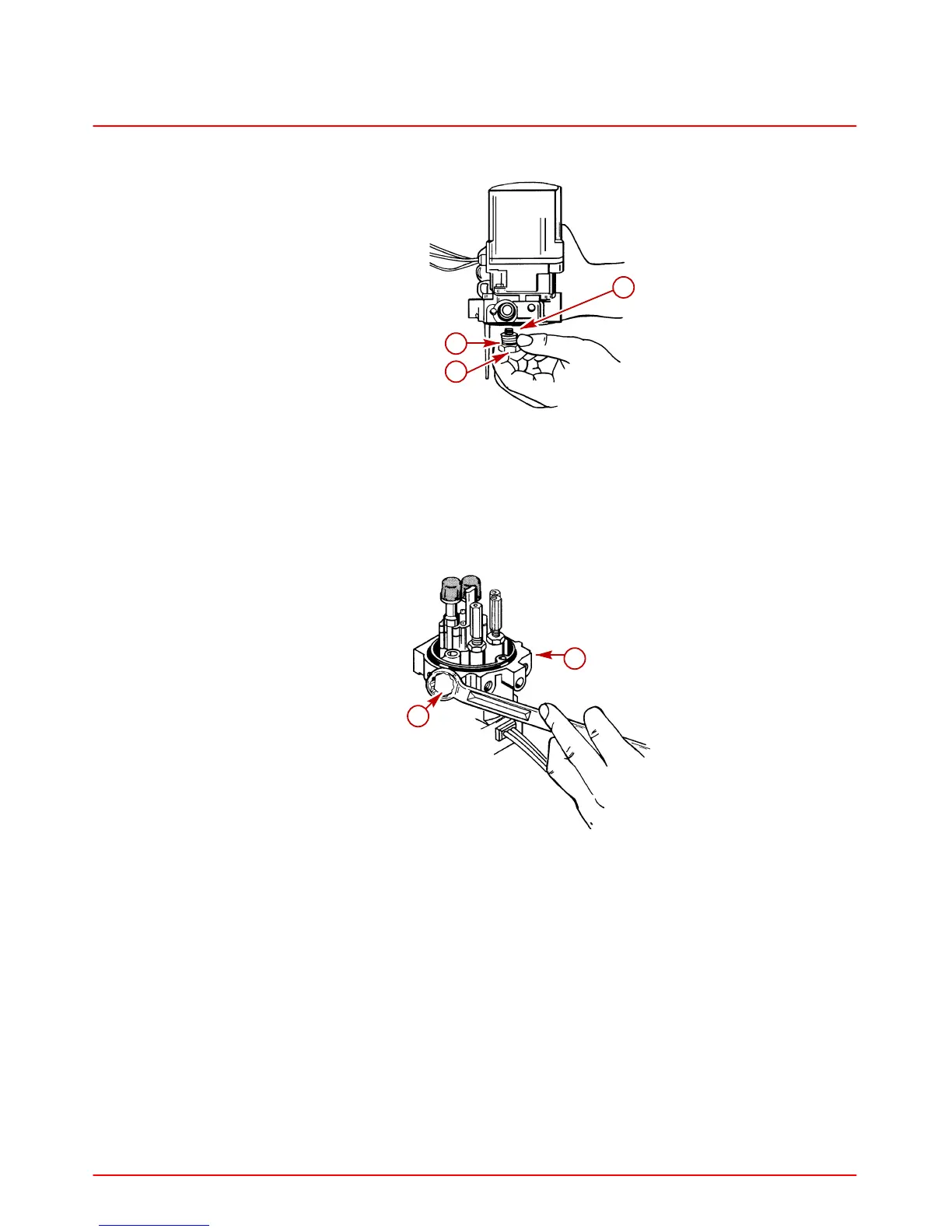

12. Thread the hex plug retainers into the adapter by hand until the retainer contacts the
check valve body.
70871
a
b
c
a-Spring (2)
b-O-ring
c-Hex Plug Retainer (2)
IMPORTANT: Hex plug retainers MUST BE turned into adapter exactly as outlined or
damage to check valve body O-rings may result.
13. Tighten the hex plug retainer securely on each side.
76893
a
a
a-Hex Plug Retainer
