OILDYNE TRIM PUMP SERVICE MANUAL NUMBER 28
Page 5A-38 90-863160 MAY 2000

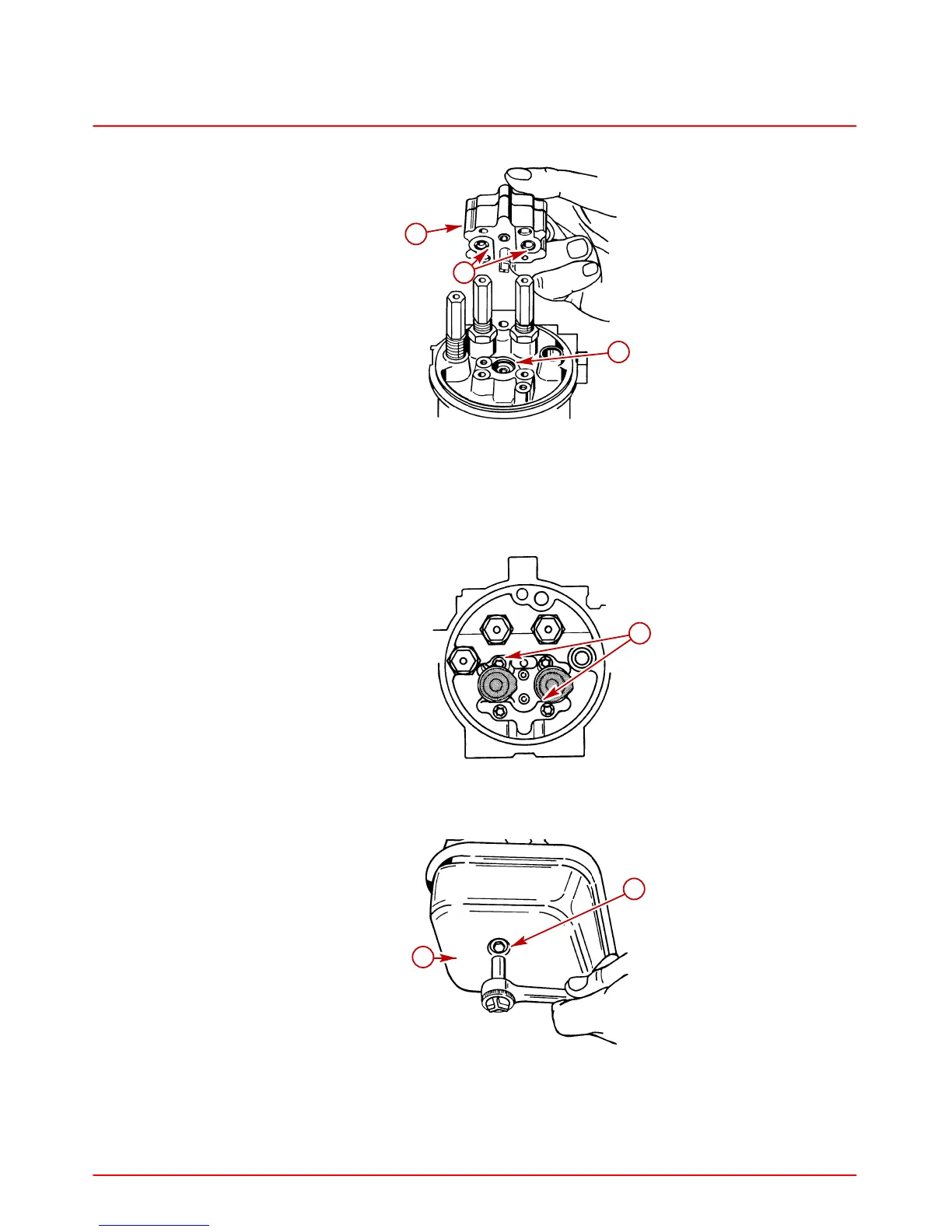

6. Lubricate the lip of the seal with light weight oil.
22545
c
b
a
a-Oil Seal
b-O-rings
c-Pump
7. Install the pump. Torque the attaching screws to 75 lb-in. (8 Nm) using a hex lobular
socket or standard 3/16 in. (5 mm) socket.
70870
a
a-Screws
8. Install the pump reservoir.
22547
b
a
a-Pump Reservoir
b-Bolt and O-ring
