POWER STEERING SERVICE MANUAL NUMBER 28
Page 6A-22 90-863160 MAY 2000

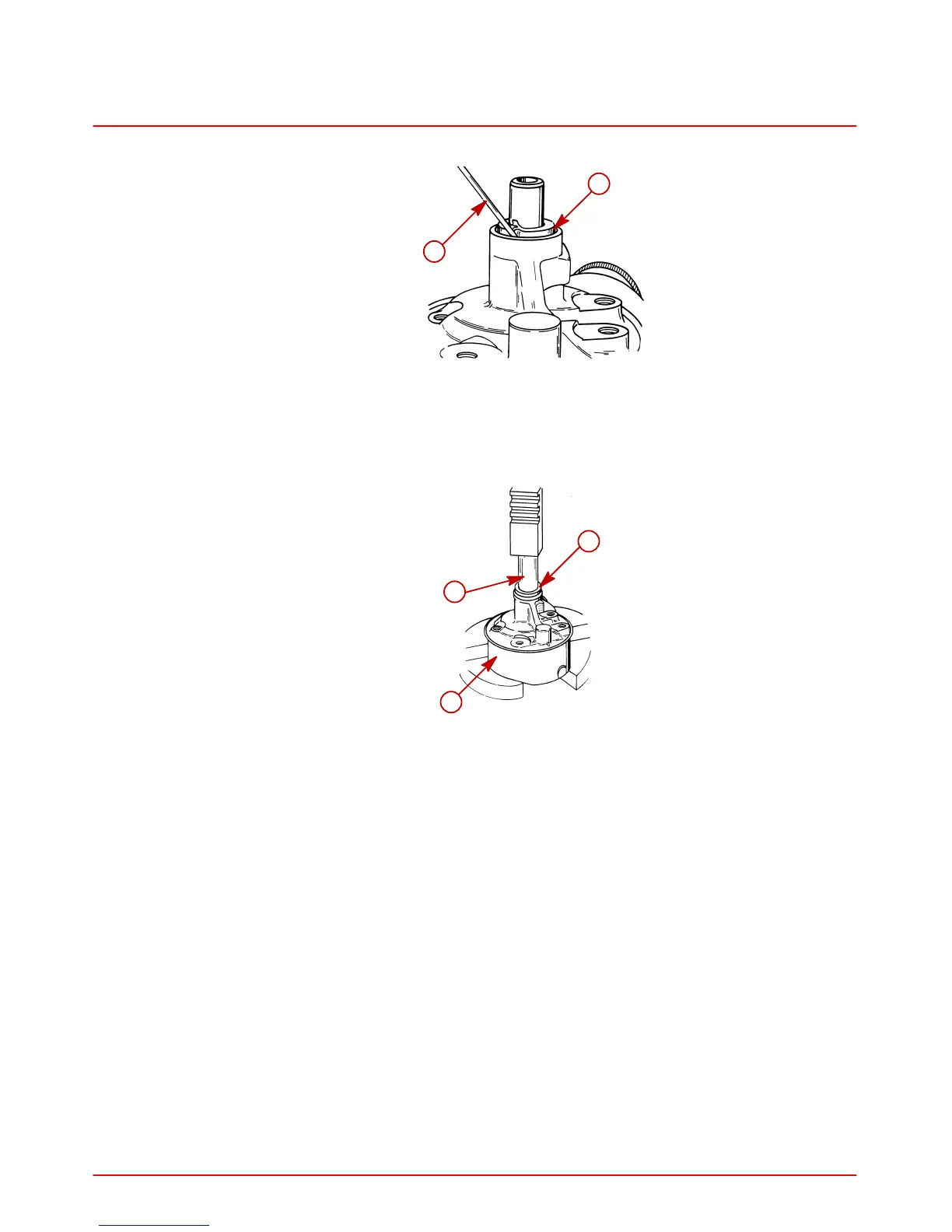

3. Remove oil seal. Remove shim stock.
22152
b
a
a-Seal
b-Suitable Tool
4. Install new oil seal. Properly support pump reservoir so that reservoir back does not dis-
tort.
22151
a
b
c
a-New Oil Seal - Metal Side Up
b-Suitable Mandrel
c-Pump Reservoir
5. Install pulley, as follows, using Pulley Pusher Assembly 91-93656A1, and a long straight
edge:
a. Place pulley on pump shaft.
b. Thread stud ALL-THE-WAY into pump shaft. Place bearing over stud. DO NOT use
spacer from kit.
c. Thread nut onto shaft. Thread shaft (and nut) ALL-THE-WAY onto stud.
d. Using a long straight edge (to check drive belt alignment), turn large pusher nut until
drive belt is parallel to straight edge.
