Mercury 90-863160

CORROSION PROTECTION - ALL MODELS
SERVICE MANUAL NUMBER 28
90-863160 MAY 2000 Page 7A-3
22650
a
77079
b

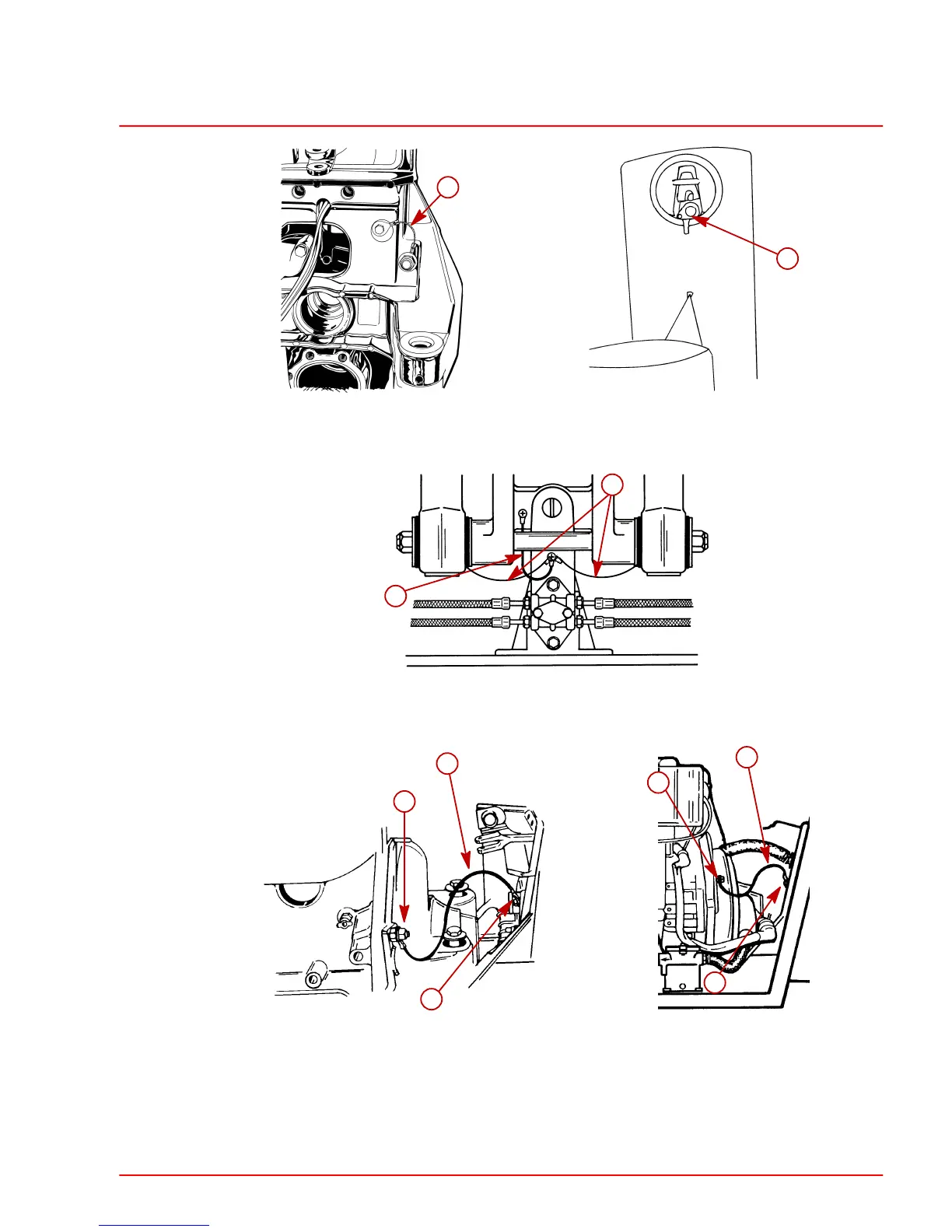

a-Inner Transom Plate To Gimbal Housing Ground Wire
b-Driveshaft Housing To Gear Housing Ground Plate (Inside Anode Cavity)
a
b
77100
a-Gimbal Housing To Gimbal Ring Ground Wire
b-Gimbal Ring To Trim Cylinder Ground Wires
22028 50242
a
c
c
a
b
b
Gasoline Models Diesel Models
a-Flywheel Housing Grounding Stud
b-Ground Wire
c-Inner Transom Plate Grounding Screw
