Mercury 90-863160

ACCESSORIES - ALL MODELS SERVICE MANUAL NUMBER 28
Page 8A-8 90-863160 MAY 2000

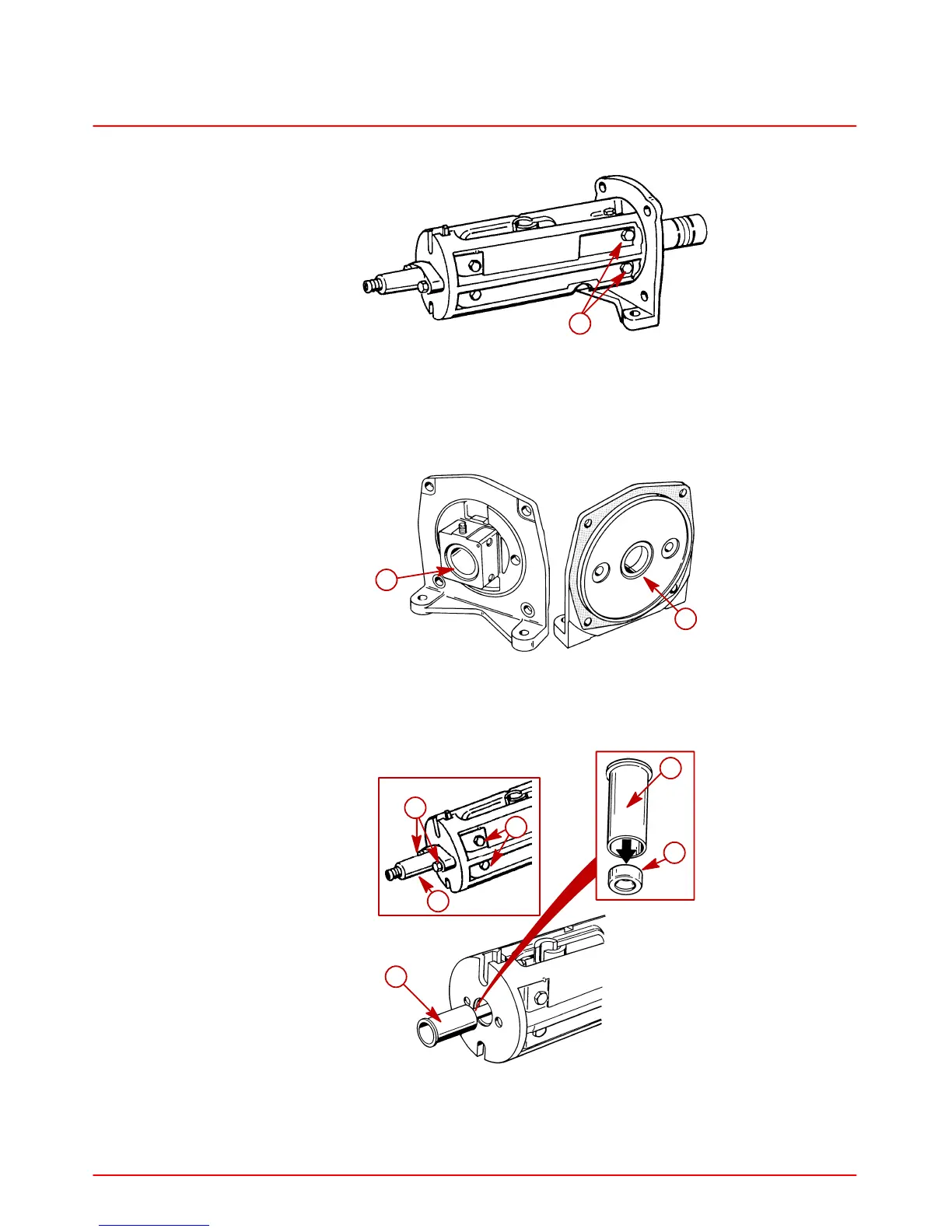

8. Remove the 2 thru-bolts which secure the end plate to the valve guide bracket.
50453
a
a-2 Thru-bolts
9. Slip the end plate from the valve guide bracket, and off of the shaft. It may be necessary
to tap off the plate with a rawhide mallet.
10. Drive the old seals out of the end plate.
50425
a
a
a-Old Seals
11. Remove the bolts, inlet flange, and gasket. Loosen the thru-bolts and tap out the seal
tube. Press or drive the old seal out of the tube.
50339
50339
50413
a
b
c
d
d
e
a-Bolts
b-Inlet Flange
c-Thru-bolts
d-Seal Tube
e-Old Seal
