Chapter 4—Front Panel Operation
59
General Setup Procedure The procedure below describes the general steps required to set up
alarm/relay functions. Figure 4-4 illustrates the procedure. For detailed
steps, see Detailed Setup Procedure on the following page.
The general steps required to set up alarm/relay functions are:
1. Enter [Setup] Mode.
2. Choose the Alarm/Relay (AL.rLy) option.
3. Select an alarm number to configure. (See Alarm Setup Information in
the Circuit Monitor Reference Manual for a list of alarm numbers.)
4. Define the required alarm/relay configuration items (priority level,
pickup setpoint, pickup delay, and so on).
5. Accept or reject the changes just made.
6. Repeat steps 3–5 until you’ve configured all desired alarms.
7. Exit to Meters mode.
Alarm/Relay Configuration Items
AL.rLY
Enter
Password
Select
Alarm No.
(ALr No)
Enable/Set Priority Level
Pickup Setpoint (PU SP)
Pickup Delay (PU DLY)
Dropout Setpoint (DO SP)
Dropout Delay (DO DLY)
Assign Relays (rLY)
Accept
Changes?
(No/Yes)
Exit to
Meters
Mode
MODE
For each item,
use the
SELECT
METER [Value]
buttons to change
the displayed
value (if desired).
Press the
PHASE
[ENTER]
button to
accept the value
and move to the
next item.
If you've made
no changes, the
Circuit Monitor
skips this step.
MODE

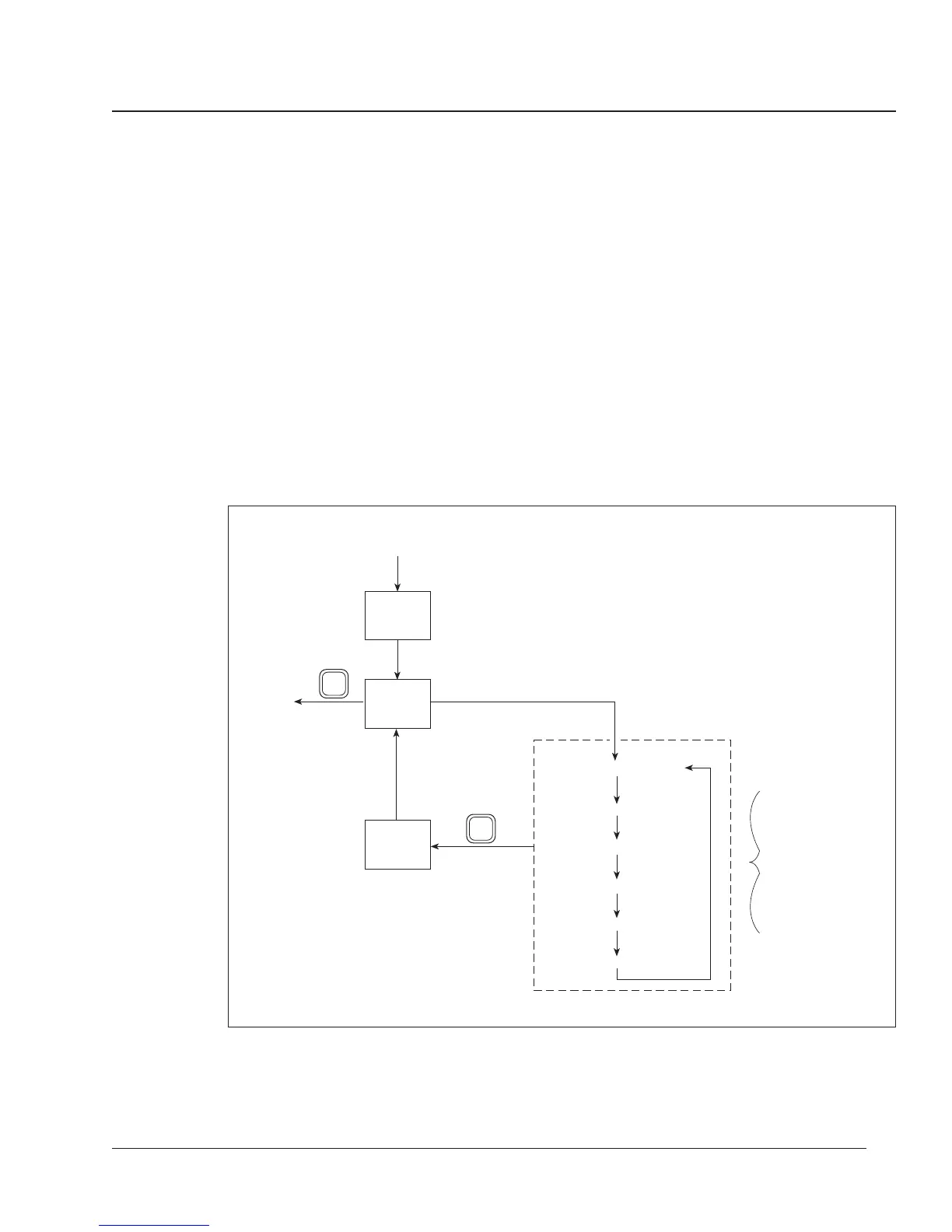

Figure 4-4: Alarm/Relay setup
To Next Page
