14
AQUALAB 3

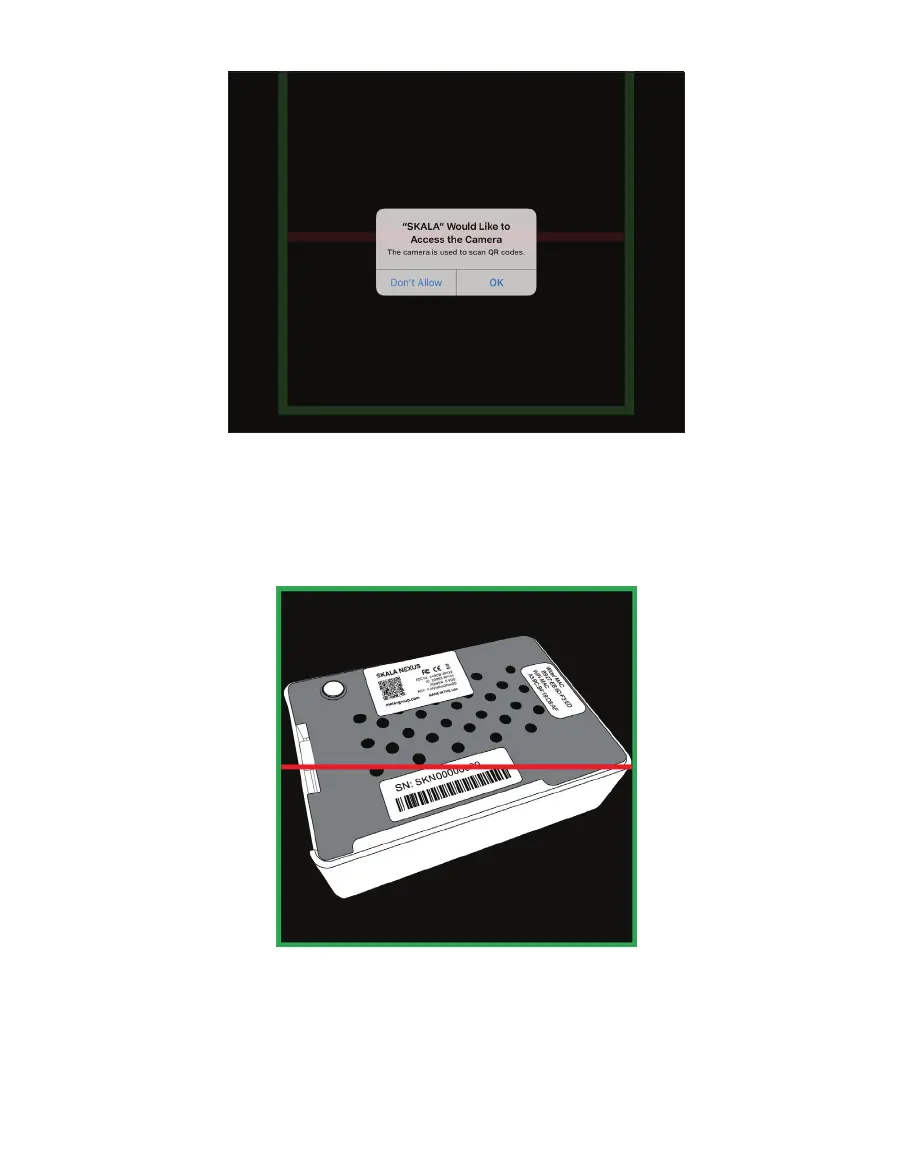

Figure14 SKALA requests access to iPad camera
5. Turn the NEXUS over to show the labels on the bottom.
6. Place the QR code in front of the camera window and inside the green box (Figure15).
When the camera recognizes the QR code, SKALA Mobile will automatically register the
QR Code.
Figure15 NEXUS in camera window
A dialog (Figure16) will appear indicating registration success!
