58
AQUALAB 3

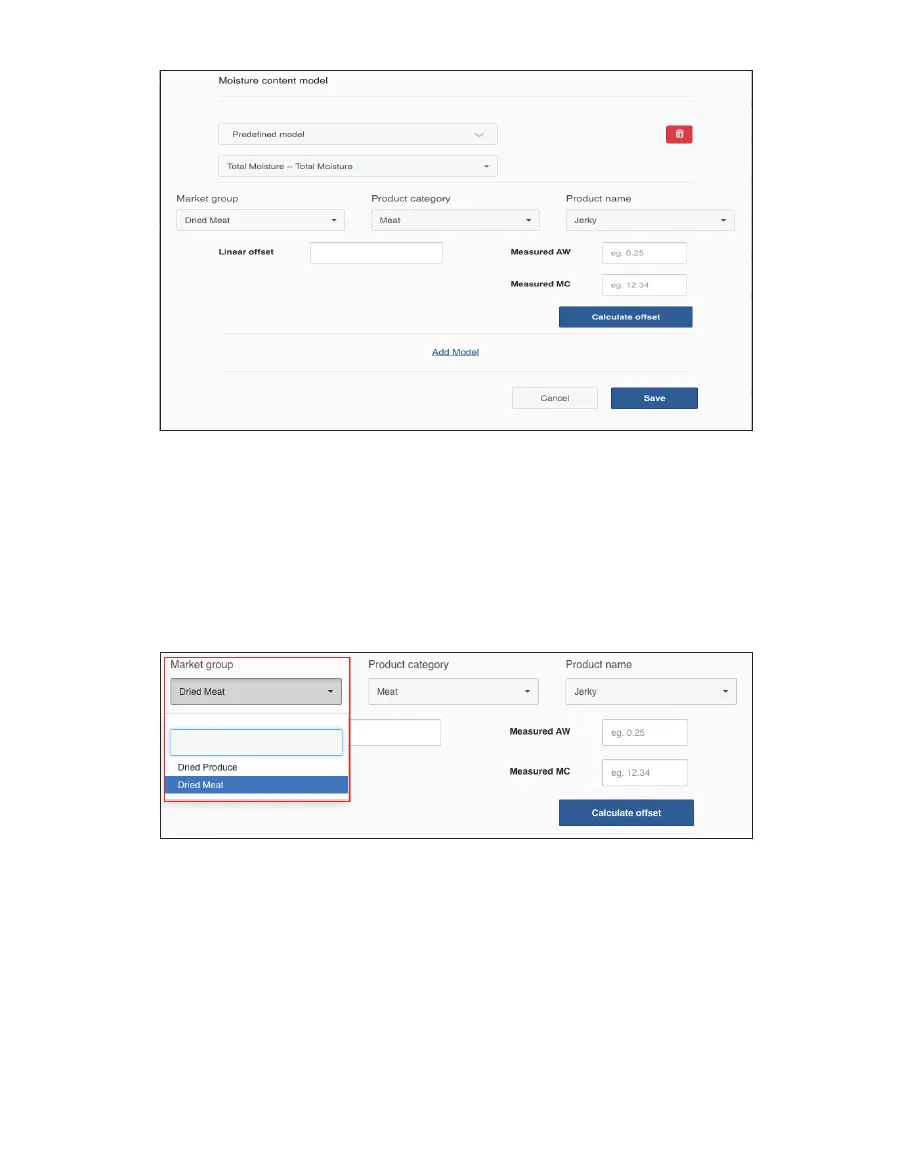

Figure76 Predefined model
b. Under Market group, select the general classification for the type of model
(Figure77).
The first time the Product is edited, the list of Market groups will be quite long. A
maximum of two market groups can be selected and a dialog will appear to confirm
the selections. In future sessions, the Market group dropdown will only show the
two groups selected in the initial product setup.
NOTE: Once Market groups are selected, they cannot be changed without contacting Customer Support.
Figure77 Market group
c. Under Product name, select the product category that most closely matches the
product being measured (Figure78).
