Metor 6M PAGE 21
Installation and Operating Manual
92102916 REV 5 6. ASSEMBLY
9. Lift the metal detector up to a vertical
position in its final mounting location.
Make sure that the coils are
parallel, i.e. the distance at
the top and at the bottom is
equal.
10.To eliminate the risk of overbalancing
the WTMD must be fastened to the floor.

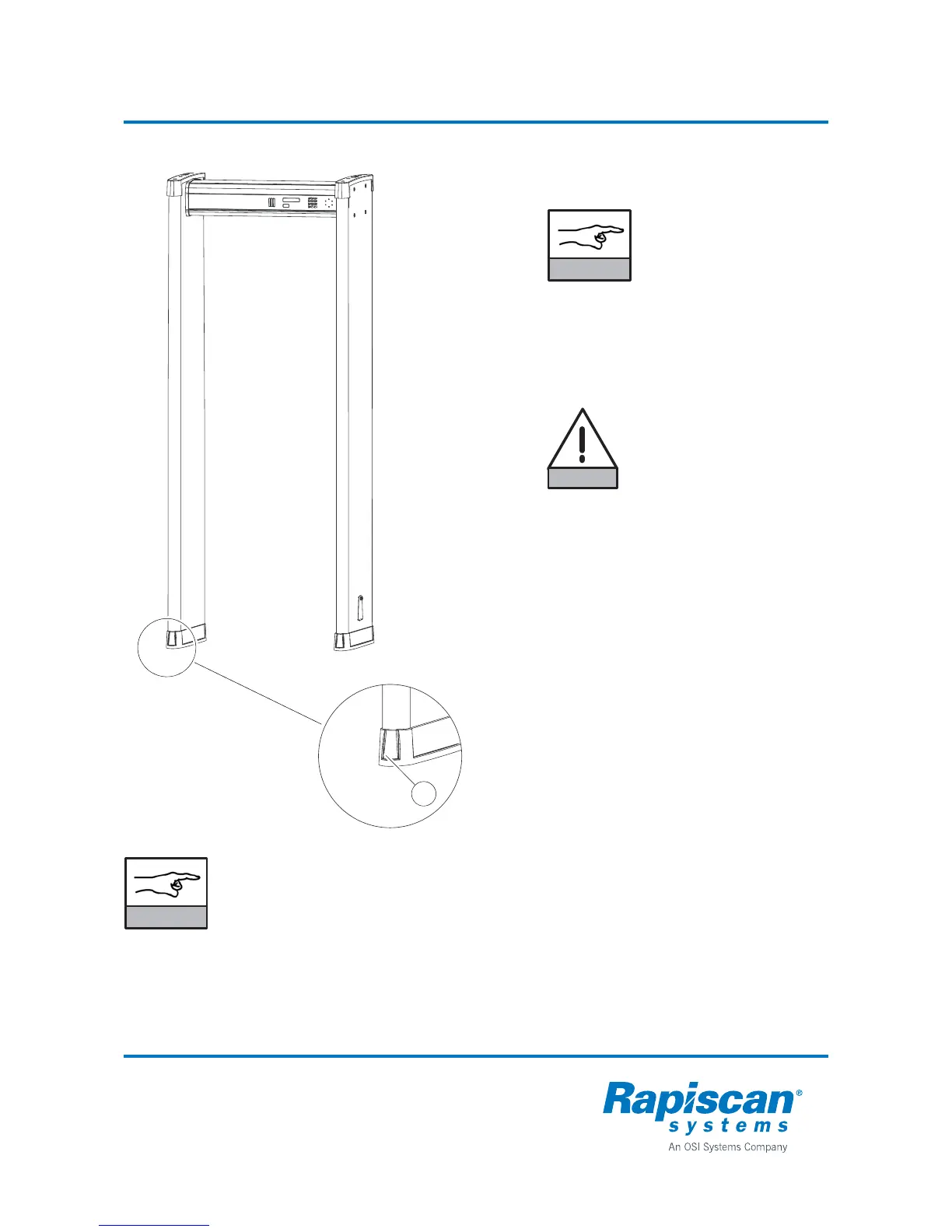

11.The mounting holes (1) are useful when
you want to ensure that the coil panels
stay parallel and to prevent gate from
falling.
It is absolutely forbidden
to make any holes on the
equipment elsewhere than
on the points indicated by
the manufacturer. If holes
must be made elsewhere,
contact the manufacturer or your local
representative.
NOTICE
This equipment must be disassembled before carrying by a single person or
suitable carrying equipment must be used. Care must be taken not to overbalance
the equipment when screws/bolts are removed from the floor.
While assembled three persons are recommended for lifting and lowering the
equipment.
