Metrohm 855 - Figure 3 Rear 855 Robotic Titrosampler

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
2 Overview of the instrument
855 Robotic Titrosampler
￭￭￭￭￭￭￭￭
11
USB 2
1
2
3
4
5
6
7
8
9

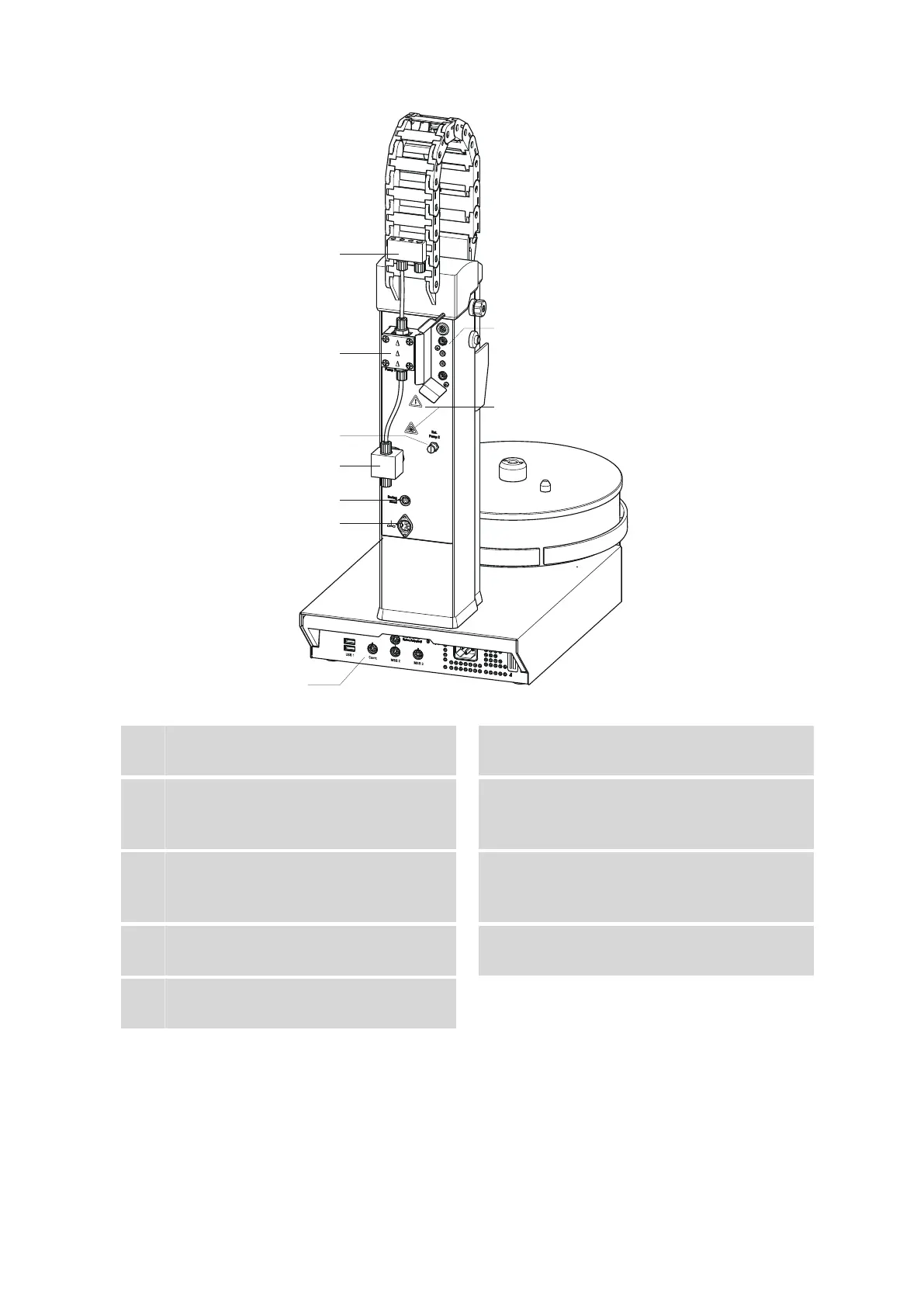

Figure 3 Rear 855 Robotic Titrosampler
1
Distributor
For rinsing equipment.
2
Membrane pump
Pump 1.
3
Pump connector
Pump 2. For external pumps (e.g. 772 Pump
Unit or 823 Pump Unit).
4
Pump valve
5
Connector "Swing Head"
Mini DIN socket (9-pin).
6
Stirrer connector
DIN socket. For rod stirrer (802 Stirrer) or
magnetic stirrer (741 Stirrer).
7
Back panel with connectors
8
Measuring interface
With various measuring inputs.
9
Warning symbols
See chapter Safety instructions.
