3.13 Connecting MSB devices
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
36
￭￭￭￭￭￭￭￭
855 Robotic Titrosampler

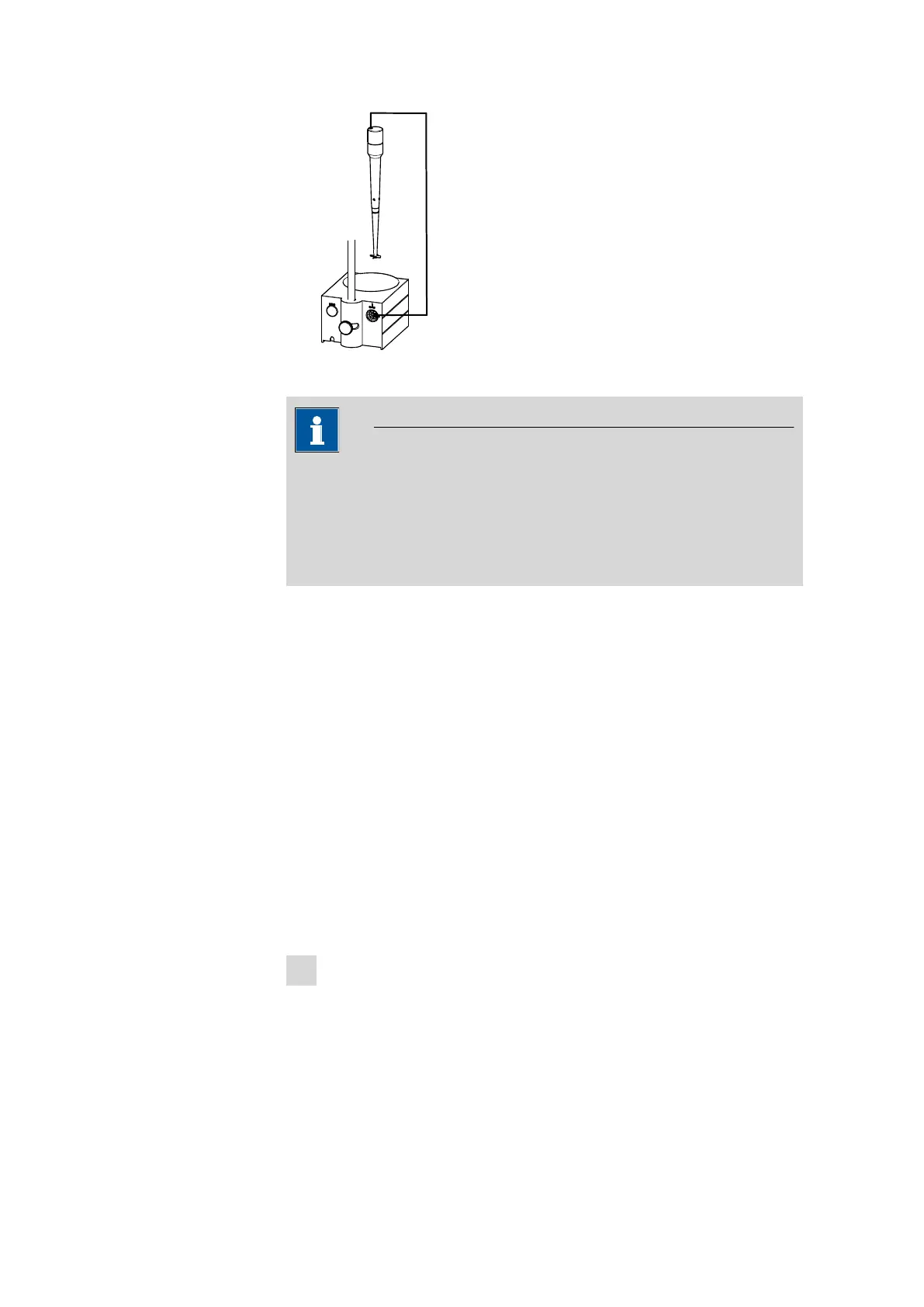

Figure 24 Connecting the rod stirrer to the titration stand
NOTICE
If an MSB stirrer is connected to the MSB1 socket, then the stirrer con-
nector at tower 1 cannot be used, because both sockets are controlled
internally via MSB1. In case of a 2-tower model of a USB Sample Pro-
cessor, this also applies for the MSB2 socket and the stirrer connector
on tower 2.
3.13.3 Connecting a Remote Box
Instruments that are controlled via remote lines and/or that send control
signals via remote lines can be connected via the 6.2148.010 Remote Box.
In addition to Metrohm, other instrument manufacturers also use similar
connectors that make it possible to connect different instruments
together. These interfaces are also frequently given the designations "TTL
Logic", "I/O Control" or "Relay Control" and they generally have a signal
level of 5 volts.
Control signals are understood to be electrical line statuses or electrical
pulses (> 200 ms) which display the operating status of an instrument or
which trigger or report an event. Sequences on a variety of instruments
can thus be coordinated in a single complex automation system. However,
no exchange of data is possible.
Proceed as follows:
1
Connecting the Remote Box
￭ Exit the control software.
￭ Connect the Remote Box connection cable to one of the sockets
marked with MSB on the rear of the control instrument.
￭ Start the control software.
To Next Page
