3 Installation
855 Robotic Titrosampler
￭￭￭￭￭￭￭￭
29
1
2
3
6.1805.060
6.1805.510
6.1543.170

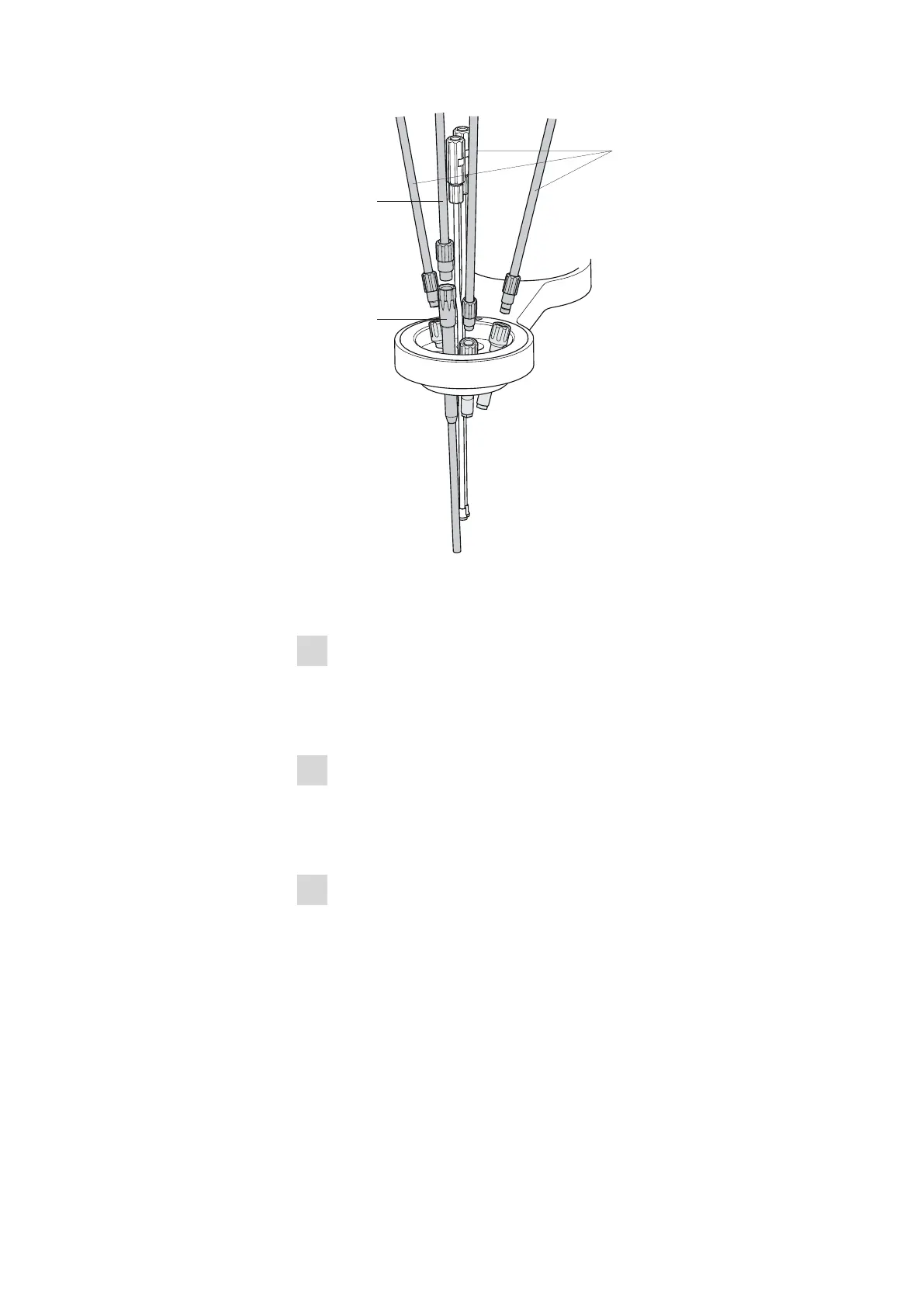

Figure 15 Installing the rinsing tubings and the aspiration tip
Proceed as follows:
1
Connecting the rinsing nozzles
￭ Connect the three rinsing tubings that are already connected to
the distributor on the tower to the preinstalled rinsing nozzles on
the titration head.
2
Inserting the aspiration tip
￭ Insert the 6.1543.170 aspiration tip into the left-side opening
on the front of the titration head (only with 6.1458.040 titration
head)
3
Connecting the aspiration tubing
￭ Connect the 6.1805.510 aspiration tubing already connected to
the distributor with the aspiration tip.
