3.10 Equipping the titration head
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
30
￭￭￭￭￭￭￭￭
855 Robotic Titrosampler
Inserting the stirrer and the electrode, connecting the dos-
ing tubings
1
2
3
4
802 Stirrer
6.1909.050
6.2104.030
6.1236.020
6.0229.100
6.1805.120

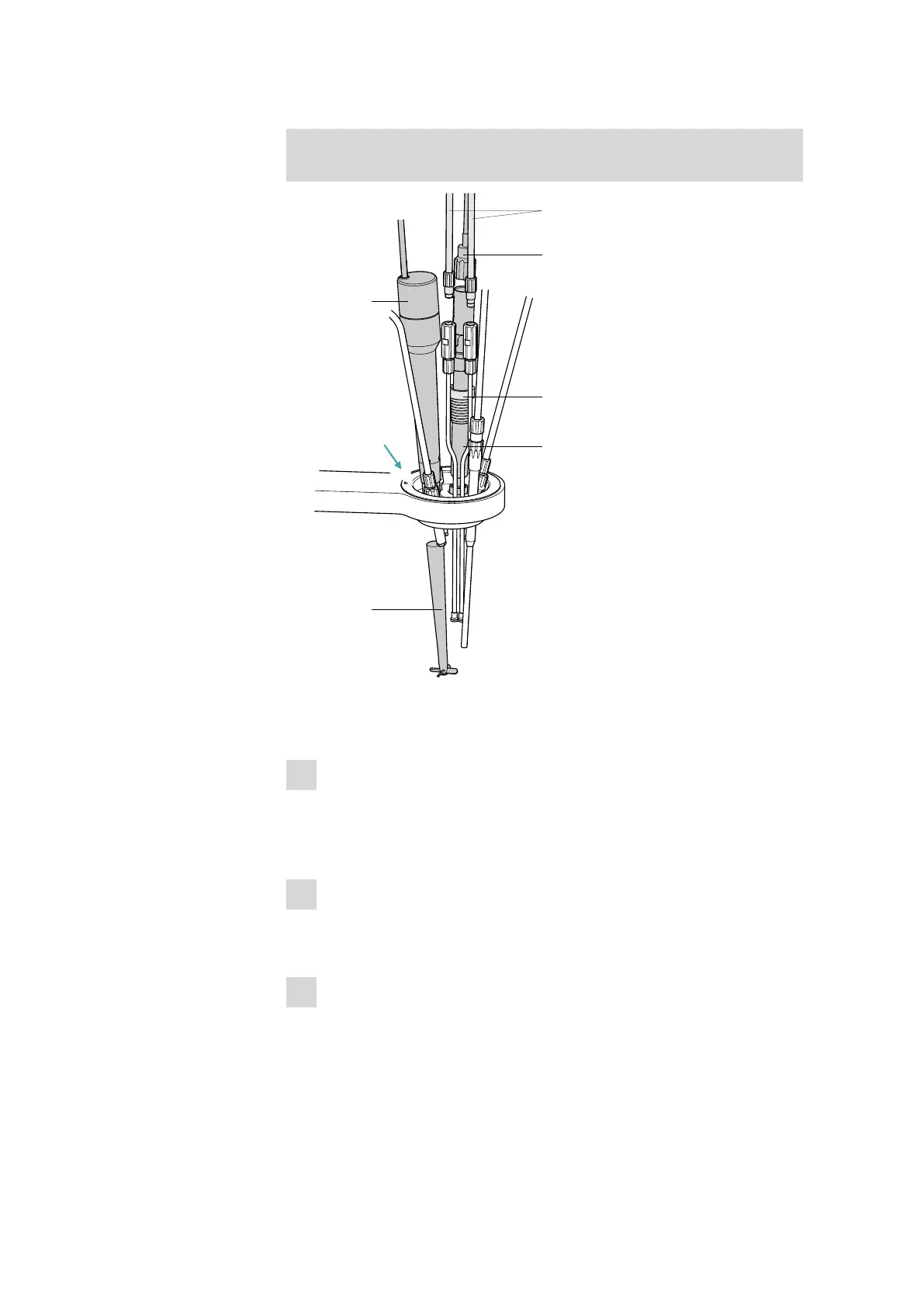

Figure 16 Installing stirrer and electrode
The equipment of the titration head is completed as follows:
1
Inserting the rod stirrer
￭ Insert the rod stirrer (802 Stirrer) into the rear opening of the
titration head (at the arrow).
￭ Insert the cable into the guide rail.
2
Mounting the stirring propeller
￭ Fasten the 6.1909.0XX stirring propeller to the rod stirrer from
below.
3
Inserting the electrode
￭ Insert the electrode (e.g., a 6.0229.100 Solvotrode) with a
6.1236.020 SGJ sleeve into the titration head.
