3 Installation
855 Robotic Titrosampler
￭￭￭￭￭￭￭￭
39
3.15 Mounting the base plate
If it is needed by an application that a determination is not carried out on
the sample rack but in an external measuring cell, a stand plate can be
mounted. It can be placed on the left or on the right of a tower of the
855 Robotic Titrosampler. Any accessories parts can be placed on the sup-
port rod of the stand plate.
Mounting the base plate

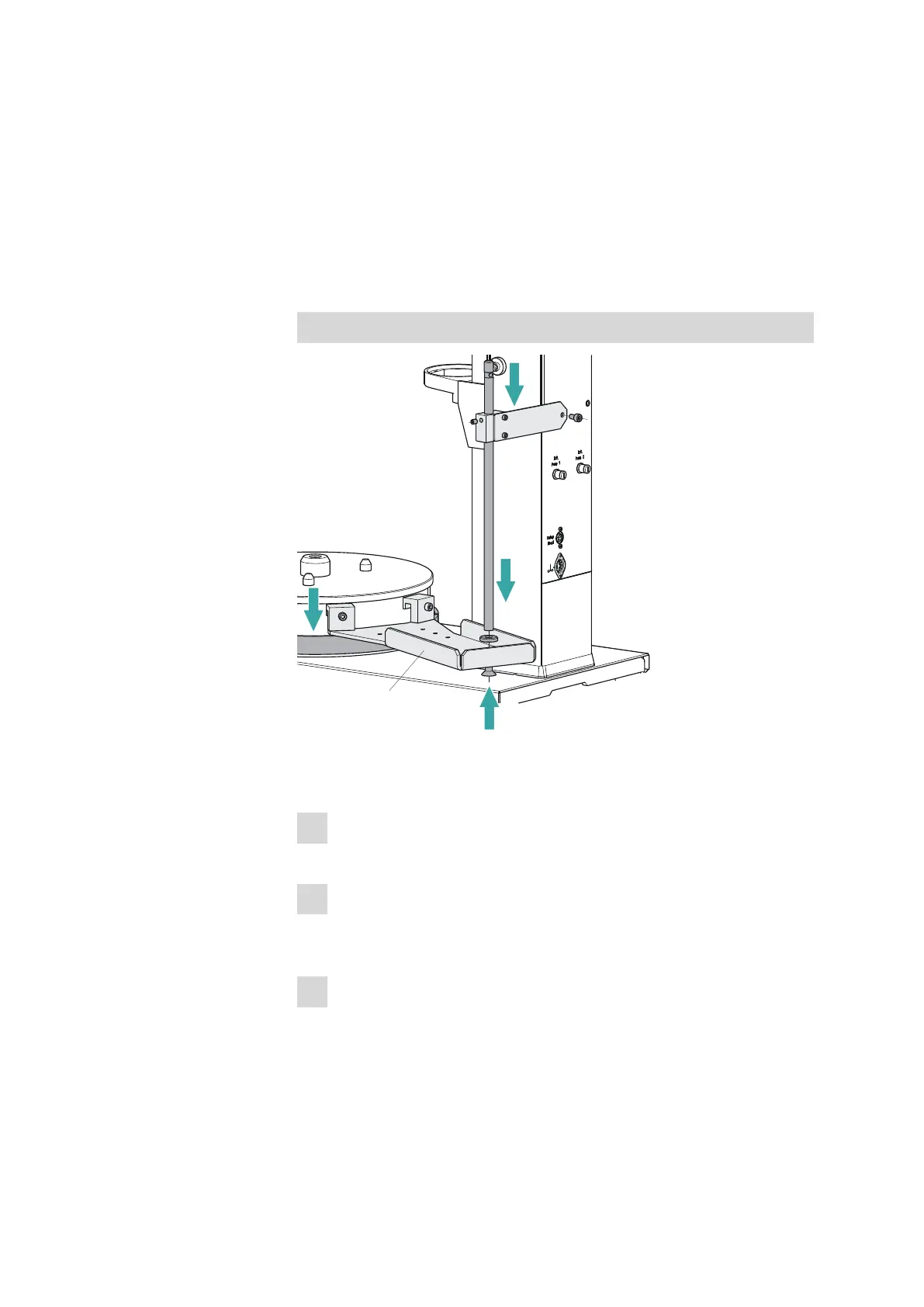

Figure 27
Mounting the base plate
Proceed as follows:
1
Insert the enclosed countersunk screw from below into the opening
on the very back of the base plate.
2
Place the washer (flat side upwards) over the countersunk screw and
tighten the support rod with the countersunk screw. The necessary
hexagon key is enclosed with the 855 Robotic Titrosampler.
3
Hang the base plate to the assembly rail of the turntable with the
holding clamps. Slide the whole stand plate as near to the tower as
possible. Fix the holding clamps with a hexagon key to the assembly
rail.
