3.18 Mounting the safety shield
WARNING
It is imperative that the safety shield be installed before the first time
the 855 Robotic Titrosampler is used. The device may not be operated
without a safety shield.

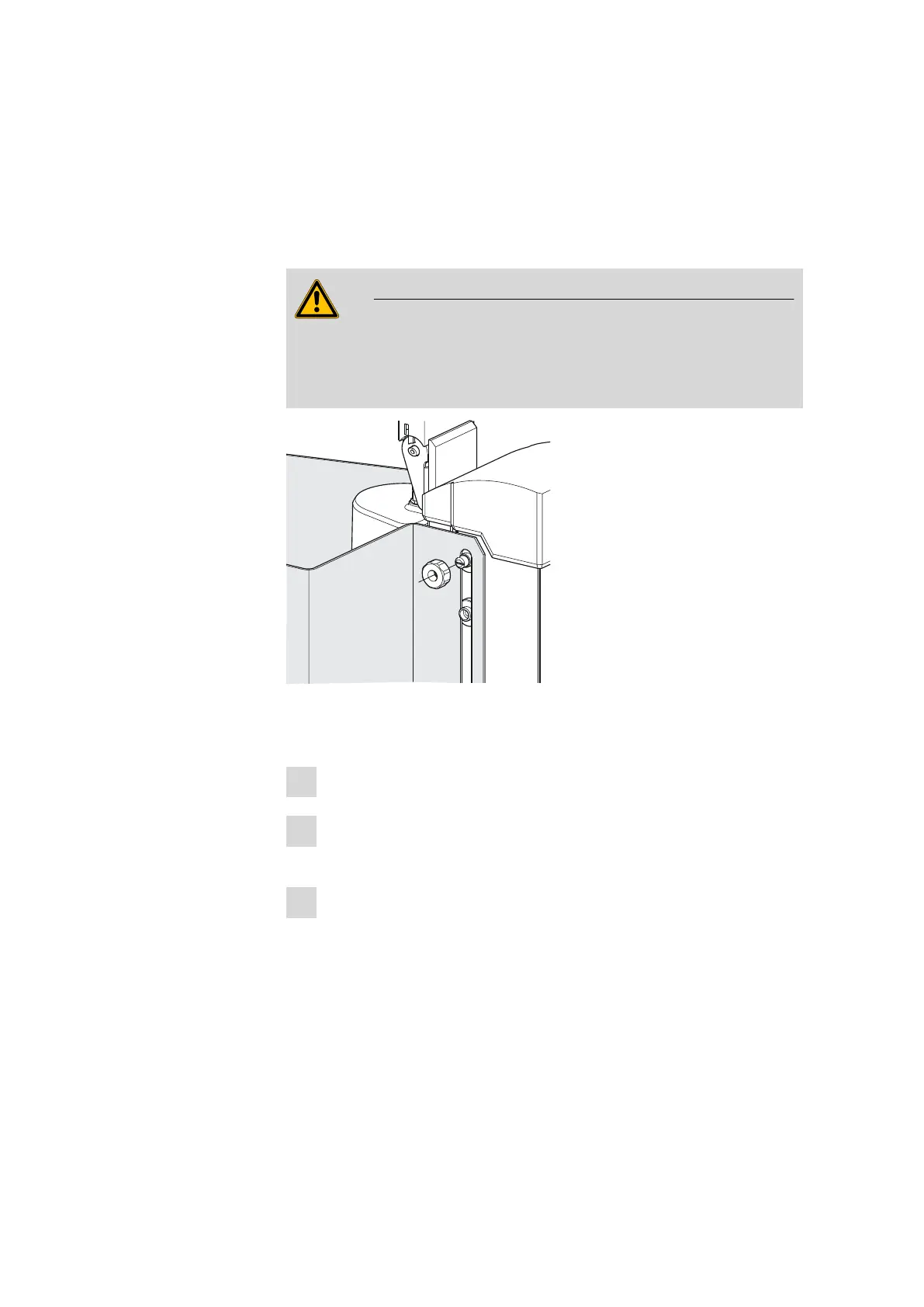

Figure 30 Mounting the safety shield
Proceed as follows.
1
Loosen the knurled screws on both sides of the tower.
2
Move the safety shield into position, starting from the top. Observe
the corresponding illustration at the top.
3
Fix the safety shield in place with the knurled screws.
