3.16 Mounting the drip pan
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
40
￭￭￭￭￭￭￭￭
855 Robotic Titrosampler
NOTICE
Before the stand plate is fixed to the tower, e.g. a magnetic stirrer
or a measuring cell can be mounted on the support rod.
4
Guide the bracing from above over the support rod.
5
Loosen the screw for fastening the bracing on the rear panel of the
tower (see figure) and fix the bracing with the enclosed hexagon
screw.
6
Fix the bracing to the support rod with a hexagon key, see figure.
3.16 Mounting the drip pan
Serious damage to the instrument or a danger to the user can occur if
chemicals or liquid samples are spilled.
The use of a suitable drip pan (6.2711.0X0) is recommended in order to
avoid such incidents.
Mounting the drip pan

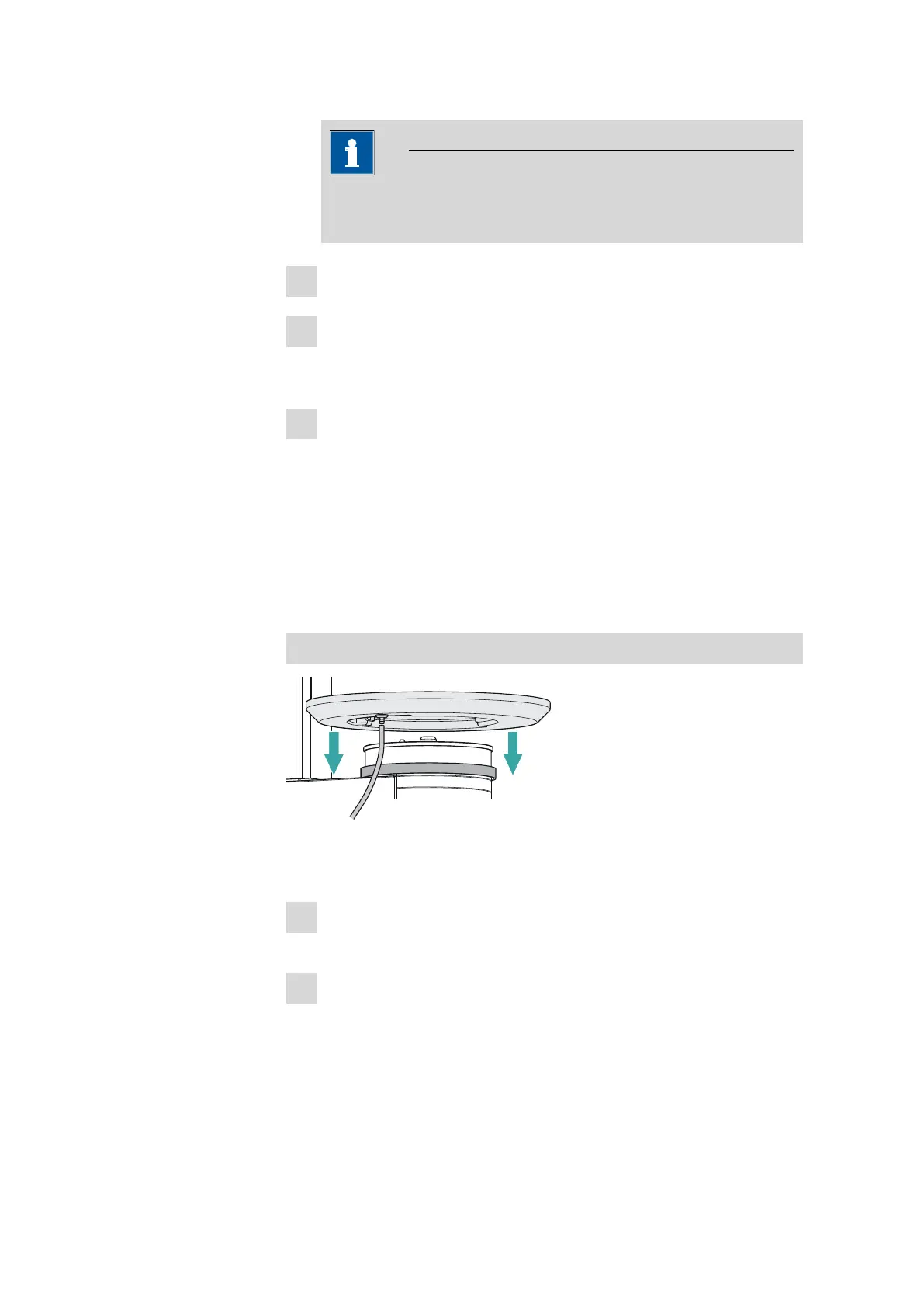

Figure 28
Installing the drip pan
Install the drip pan as follows:
1
Fasten the enclosed tubing to the drainage nipple on the drip pan
and then guide the free end of the tubing into a waste container.
2
Place the drip pan on the assembly rail of the turntable as shown in
the figure.
