3.8 Installing the rinsing and aspiration equipment
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
24
￭￭￭￭￭￭￭￭
855 Robotic Titrosampler
No separate LIFT command is required in such cases.
NOTICE
The work position of the lift must be configured in such a way that the
robotic arm is in place on the sample vessel. The robotic arm must bend
very slightly while doing so, so that the Piezo sensor will generate a sig-
nal.
3.8 Installing the rinsing and aspiration equipment
Various tubings are necessary for rinsing the electrode and the dosing tips
as well as for aspirating the sample solution after the titration. First,
mount the tubings on the distributor.
Mounting the rinsing and aspiration tubings
Install the tubings as follows:
6.1805.510
6.1805.060
6.1808.170
6.1812.000
1
2
3
4

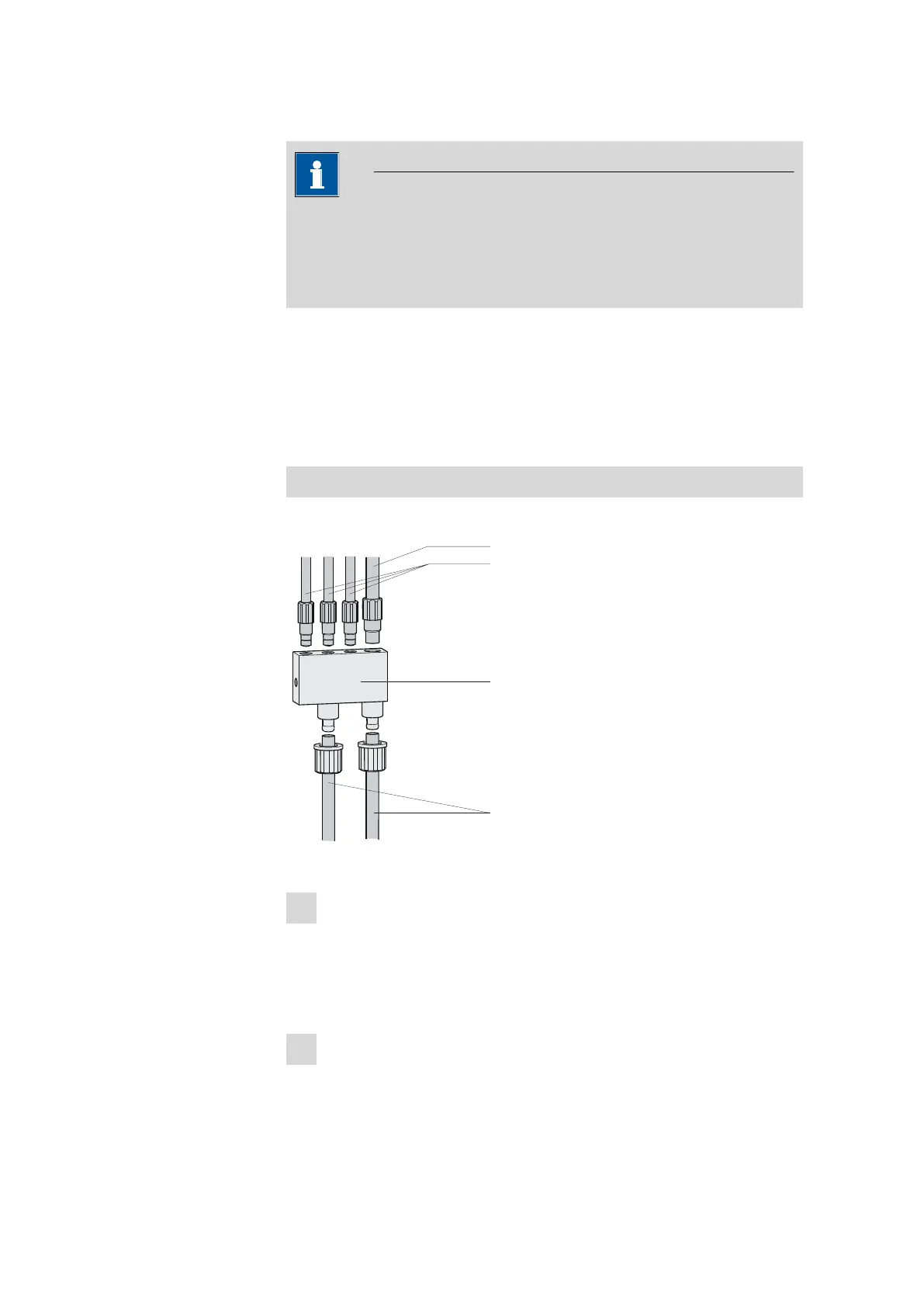

Figure 14 Mounting the rinsing and aspiration tubings
1
Mounting the rinsing tubing
￭ Manually tighten the three 6.1805.060 FEP tubings (60 cm) in
the M6 bore holes of the distributor. Place the tubings into the
guide chain (see chapter 3.9, page 27).
These are the feed lines for the spray nozzles.
2
Mounting the aspiration tubing
￭ Manually tighten the 6.1805.510 FEP aspiration tubing (60
cm) in the M8 bore hole of the distributor.
