3 Installation
855 Robotic Titrosampler
￭￭￭￭￭￭￭￭
31
4
Connecting the dosing tubings
￭ Connect two dosing tubings (e.g., 6.1805.120) to the pre-moun-
ted dosing tips on the titration head.

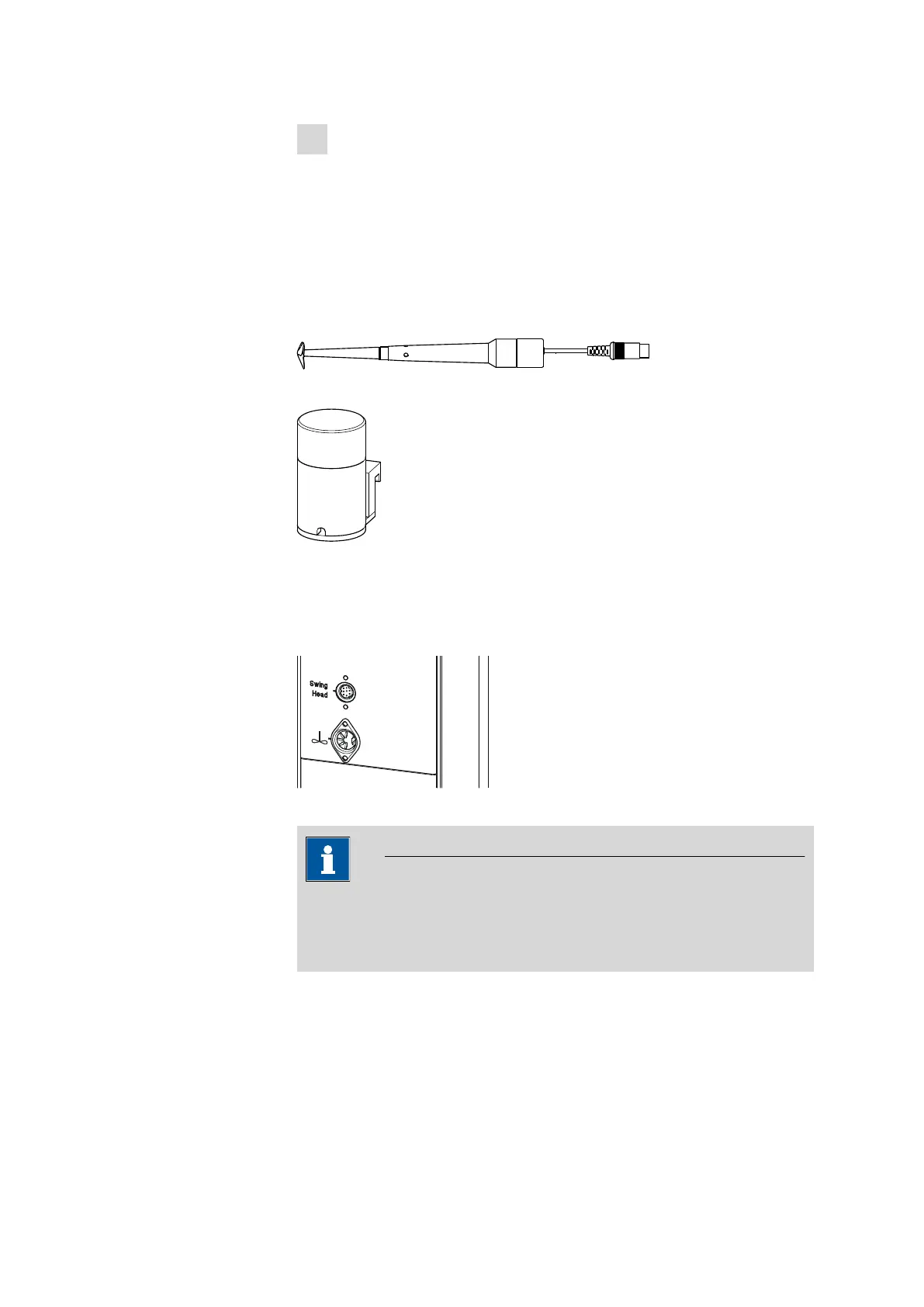

3.11 Connecting the tower stirrer
A DIN socket for connecting a rod stirrer (802 Stirrer) or a magnetic stir-
rer (741 Stirrer) is located on the rear side of the tower.
Figure 17 Rod stirrer 802 Stirrer
Figure 18 Magnetic stirrer 741 Stirrer
Take care to observe correct orientation of the contact pins when plug-
ging in the stirrer connection cable. The rib on the outside of the plug
must match the reference mark (on the left) on the socket.
Figure 19
Connecting the tower stirrer
NOTICE
If an MSB stirrer is connected to the MSB1 socket, then the stirrer con-
nector at tower 1 cannot be used, because both sockets are controlled
internally via MSB1.
