2.2 Back panel
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
12
￭￭￭￭￭￭￭￭
855 Robotic Titrosampler
2.2 Back panel
USB 2
USB 1
Contr.
MSB 1
MSB 2
MSB 3
Made by Metrohm
Herisau Switzerland
P: 115W U: 100 - 240 V f: 50 - 60 Hz
WARNING - Fire Hazard -
For continued protection replace only
with the same type and rating of fuse
Nr.
1 2 3 4 5

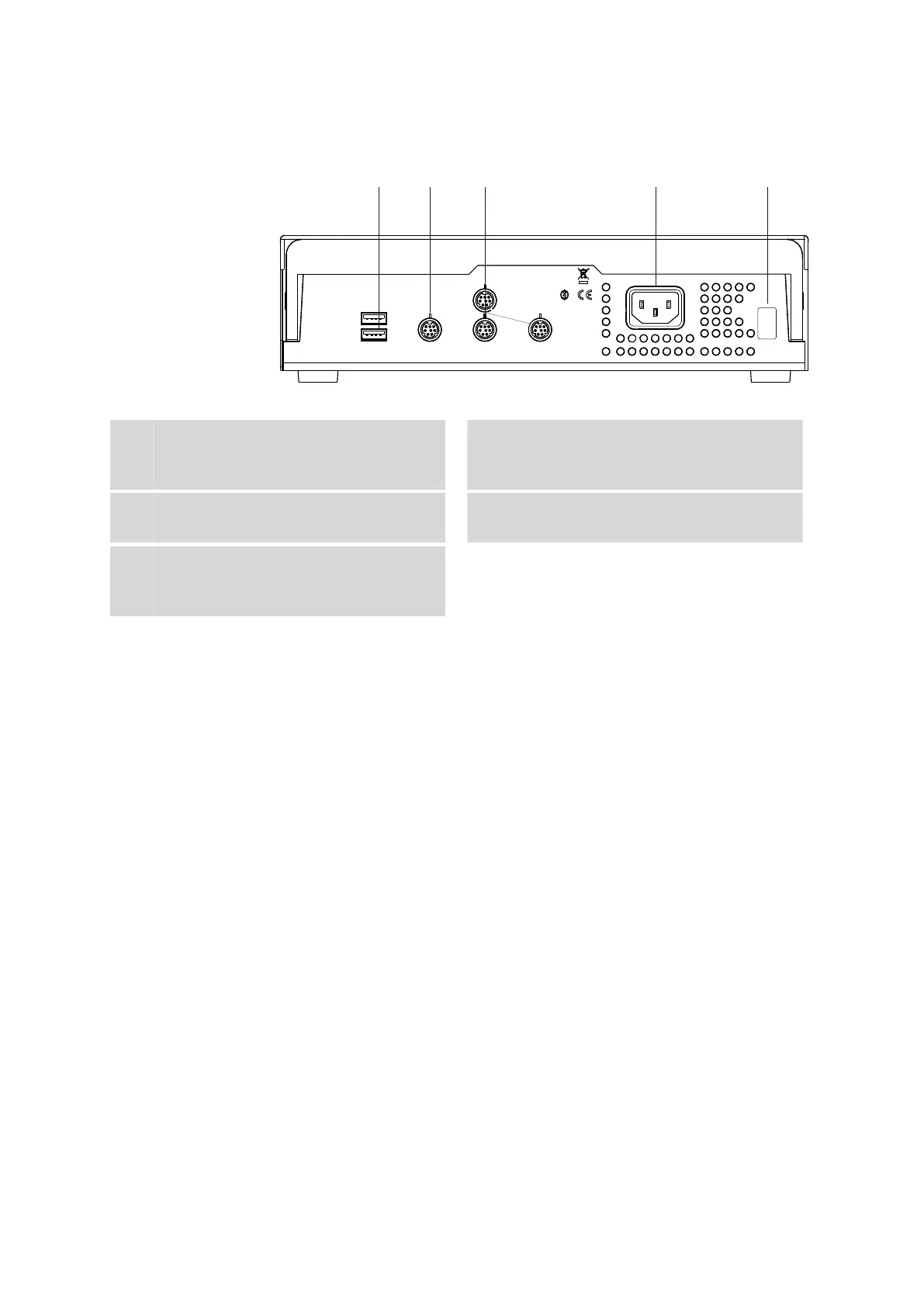

Figure 4 Connector strip
1
USB connector (USB 1 and USB 2)
2
Connector (Controller)
For the connection to the PC or Touch Con-
trol.
3
MSB connector (MSB 1 to MSB 3)
For stirrers, dosing devices, Remote Box.
4
Power socket
5
Type plate
Contains specifications concerning supply
voltage and serial number.
2.3 Sensor connectors
The connectors for electrodes and temperature sensors are on the rear of
the tower.
