3 Installation
855 Robotic Titrosampler
￭￭￭￭￭￭￭￭
41
3.17 Attaching a sample rack

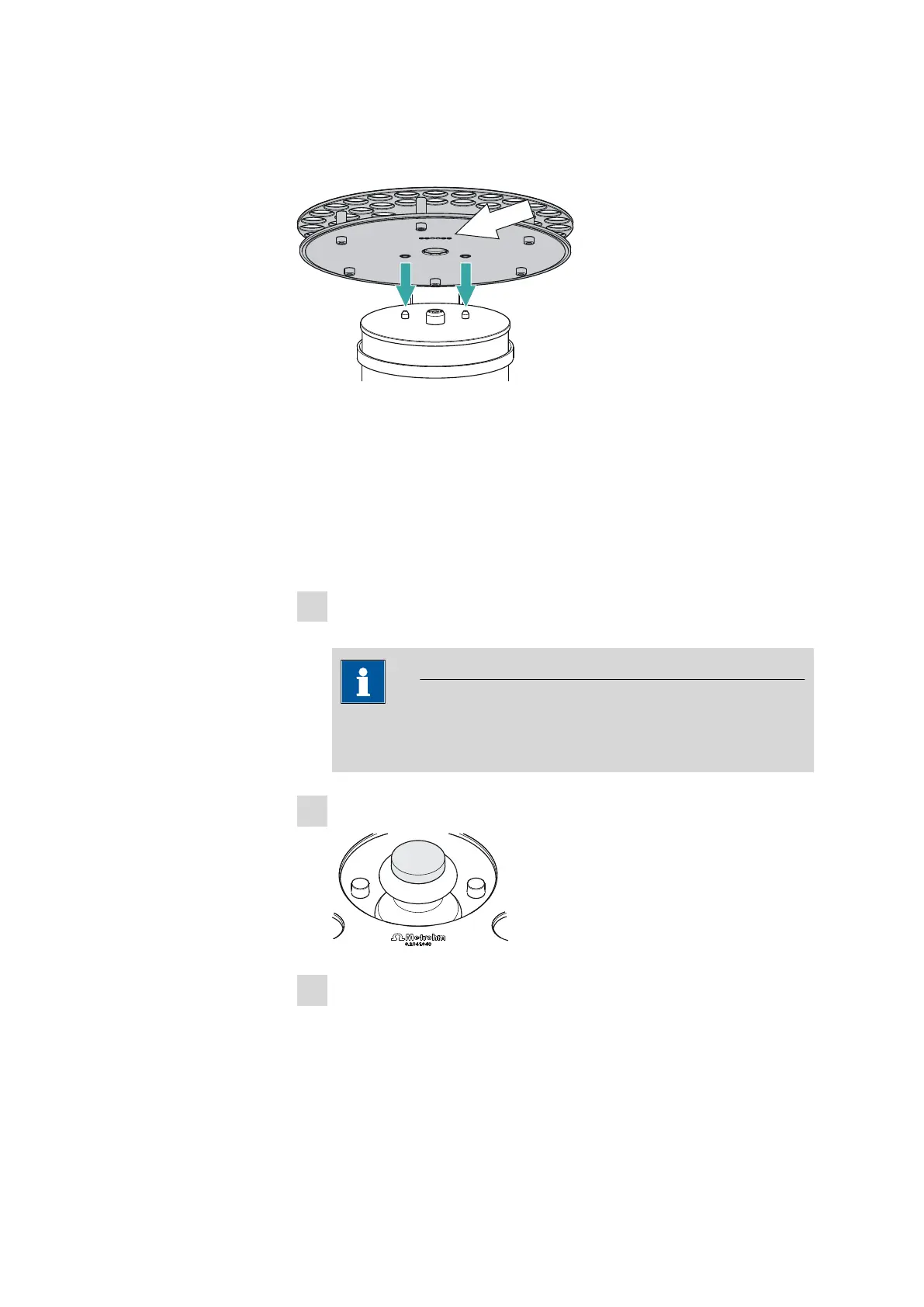

Figure 29 Attaching rack
The easiest way to put a sample rack into position is when the turntable is
in the starting position.
If the instrument is switched off, then the turntable can be rotated man-
ually into position. Both of the turntable guide bolts must be positioned so
that they are pointing towards the tower.
Put the rack into place as follows:
1
Carefully center the rack on the turntable. The guide bolts on the
turntable must engage with the openings in the bottom of the rack.
NOTICE
Hold the rack in such a way that the printed Metrohm logo is legi-
ble horizontally.
2
Screw the fixing screw in the handle tight by rotating it clockwise.
3
Carry out the [Rack reset] or [Initialize rack] function in the man-
ual control of the control software.
The rack is moved into starting position. The magnet code of the rack
is read out by the instrument during this process. The white arrow in
Figure 29 Figure indicates the position of the magnet holder. The six-
