3.8 Installing the rinsing and aspiration equipment
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
26
￭￭￭￭￭￭￭￭
855 Robotic Titrosampler
Mounting the distributor

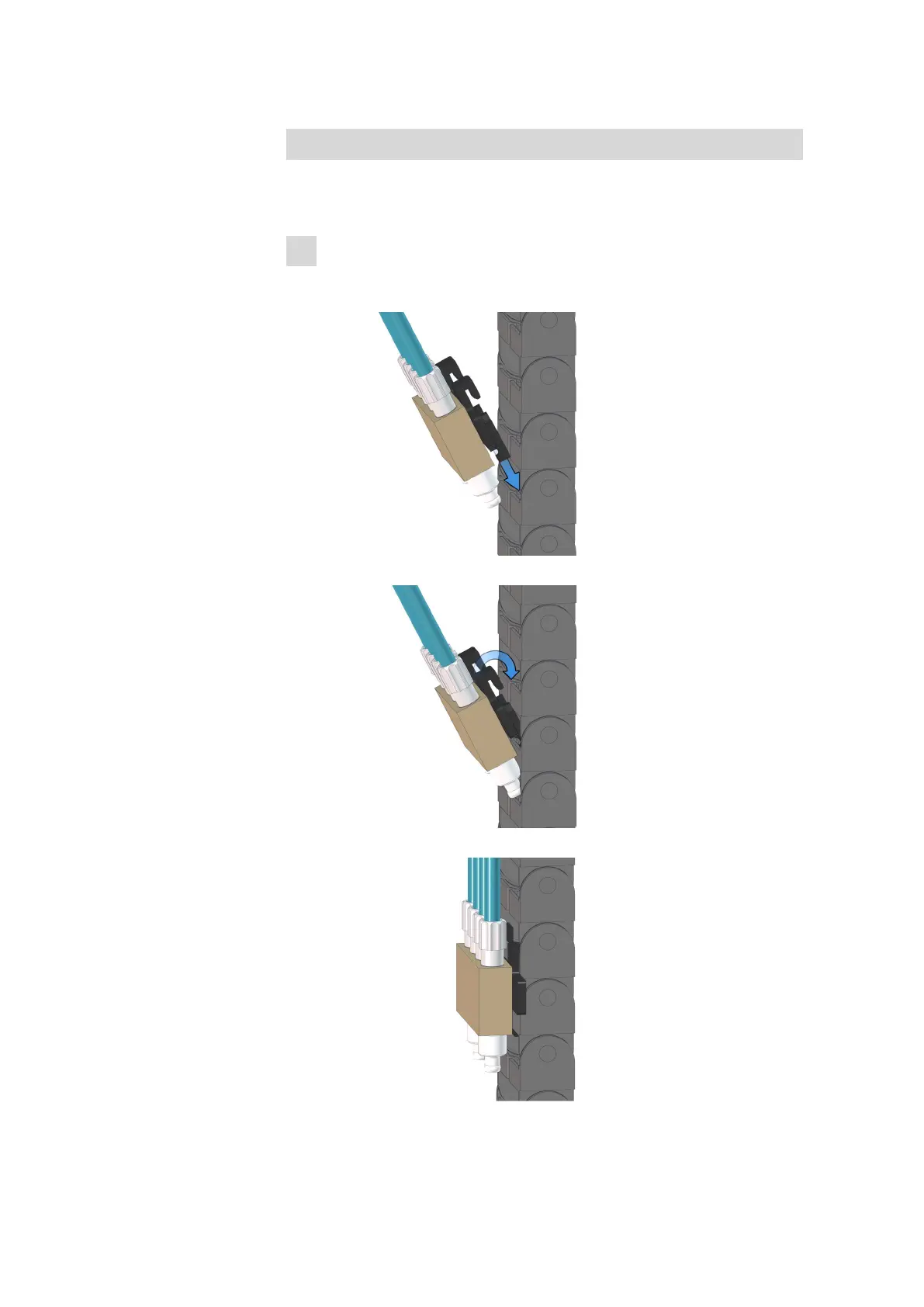

Proceed as follows to install the 6.1808.170 distributor on the guide
chain:
1
A
ttaching the distributor
￭
Insert the bottom part of the distributor holder between two clips
of the chain links. The tubing can remain connected.
￭
Insert the upper hook of the holder in the upper clip.
￭
Let the bottom part of the holder snap in the bottom clip.
33
35
