Metrohm 883 Basic IC plus User Manual

3.6 Installations on the rear of the instrument
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
20
￭￭￭￭￭￭￭￭
883 Basic IC plus
1
2
3
4
5
6

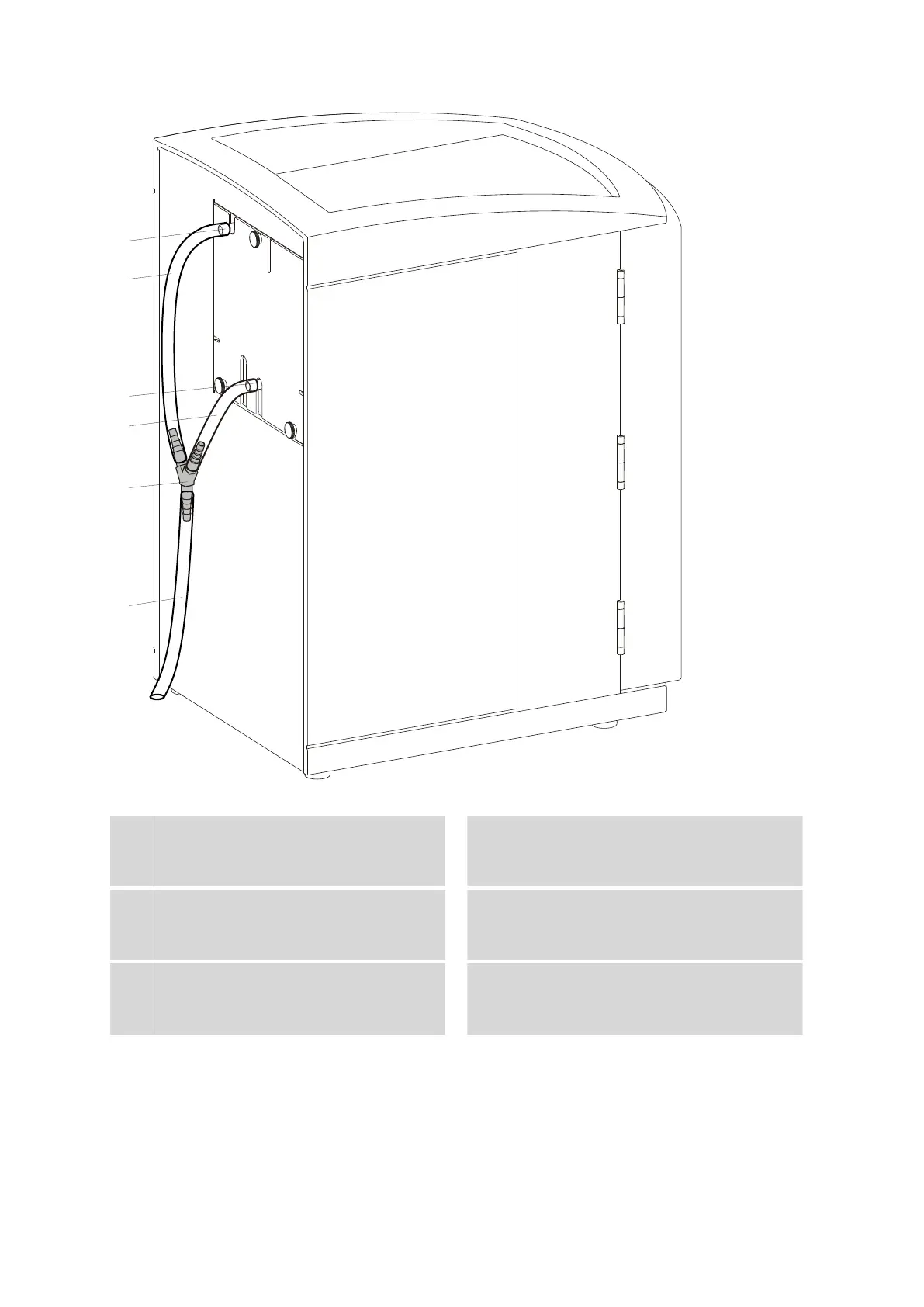

Figure 5 Drainage tubing
1
Drainage tubing connection
For draining leaked liquid from the bottle
holder.
2
Silicone tubing (6.1816.020)
Section. For draining leaked liquid from the
bottle holder.
3
Drainage tubing connection
For draining leaked liquid from the detector
chamber.
4
Silicone tubing (6.1816.020)
Section. For draining leaked liquid from the
detector chamber.
5
Y connector (6.1807.010)
For connecting the two drainage tubings
(5-2) and (5-4).
6
Silicone tubing (6.1816.020)
Section. Conveys the leaked liquid to the
waste container.
