3 Installation
883 Basic IC plus
￭￭￭￭￭￭￭￭
23
3.8 Connecting the eluent bottle
The eluent is aspirated out of the eluent bottle via the eluent aspiration
tubing . The eluent aspiration tubing is installed on the entry to the high-
pressure pump.
The tubing must be be fed out of the instrument through a suitable open-
ing before the loose end can be connected to the eluent bottle.
Accessories For this step, you need the following accessories:
￭ Eluent bottle (6.1608.070)
￭ The eluent bottle cap GL 45 accessory set (6.1602.160)
This accessory set contains the bottle cap, an M6 tubing nipple, an M8
tubing nipple, two O-rings and an M6 and M8 threaded stopper.
￭ The tubing adapter for aspiration filter accessory set (6.2744.210)
This accessory set contains a filter holder, a clamping screw and tubing
weighting.
￭ An aspiration filter (6.2821.090)
￭ The adsorber tube (6.1609.000)
￭ The SGJ clip (6.2023.020)
Connecting the eluent aspiration tubing
1
Installing the eluent bottle cap (6.1602.160)
￭ Start by pushing the M8 tubing nipple onto the loose end of the
eluent aspiration tubing, followed by the O-ring.
￭ Push the loose end of the eluent aspiration tubing through the
M8 opening of the bottle cap and screw it on for the time being.

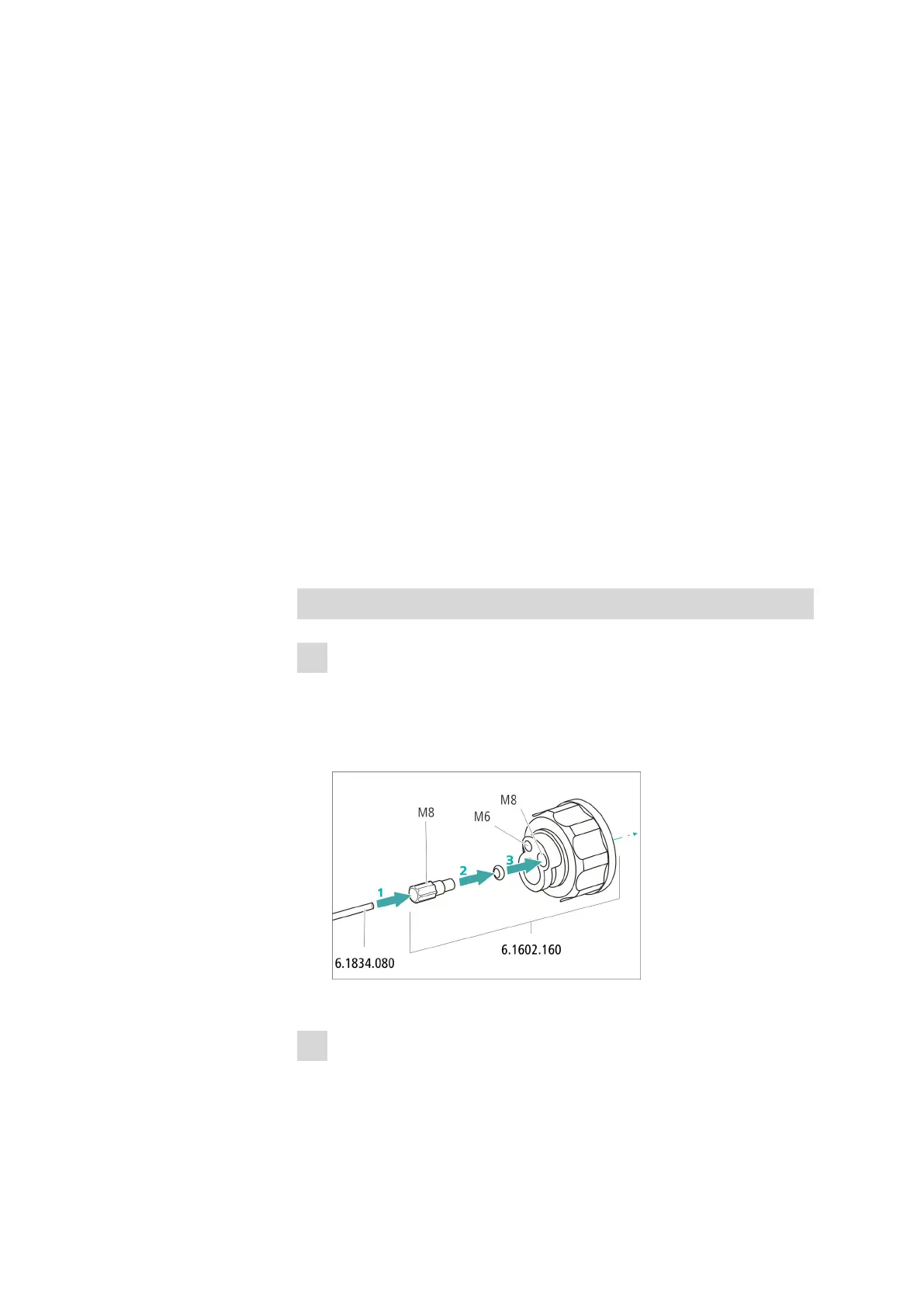

Figure 7 Installing the eluent bottle cap
2
Mounting the tubing adapter
Install the parts of the tubing adapter for aspiration filter
(6.2744.210) accessory set:
To Next Page
