4.7 Servicing the inline filter
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
74
￭￭￭￭￭￭￭￭
883 Basic IC plus
Removing the filter

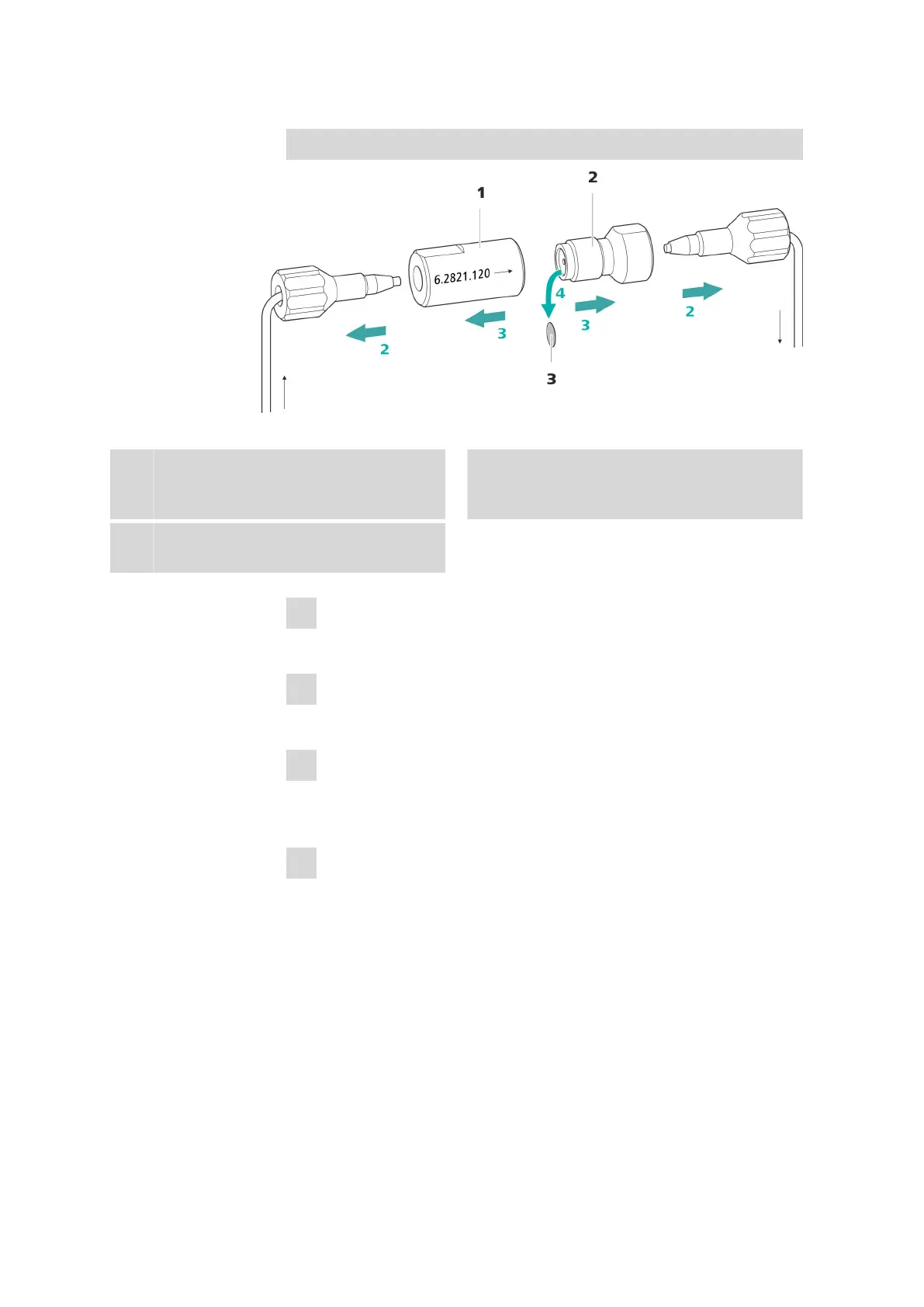

Figure 24 Inline filter – Removing the filter
1
Filter housing
Inline filter housing. Part of the accessories
(6.2821.120).
2
Filter screw
Screw for the inline filter. Part of the acces-
sories (6.2821.120).
3
Filter (6.2821.130)
Pack contains 10 pieces.
1
Shutting off the flow
Switch off the high-pressure pump in the software.
2
Removing the inline filter
Unscrew both pressure screws from the inline filter.
3
Unscrewing the filter screw
Use two adjustable wrenches (6.2621.000) to loosen the filter screw
(24-2) from the filter housing (24-1) and unscrew it by hand.
4
Removing the filter
Remove the old filter (24-3) using tweezers.
