3 Installation
883 Basic IC plus
￭￭￭￭￭￭￭￭
25

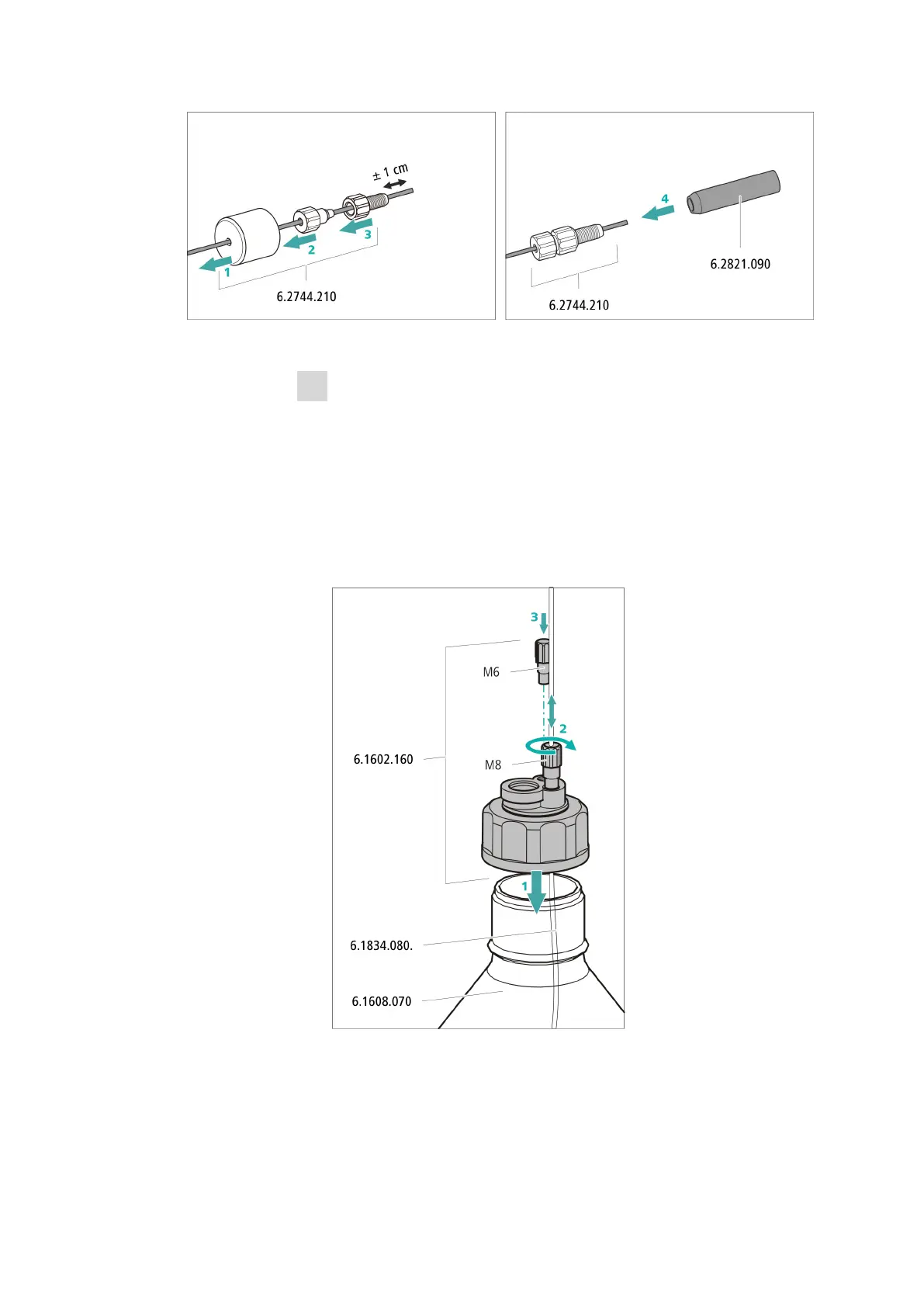

Figure 8 Installing tubing weighting and aspiration filter
5
Installing the eluent bottle cap on the eluent bottle
￭ Insert the eluent aspiration tubing into the eluent bottle
(6.1608.070).
￭ Tighten the bottle cap on the eluent bottle.
￭ Adjust the length of the eluent aspiration tubing so that the aspi-
ration filter is at the bottom of the eluent bottle. Then fix it in
place using the M8 tubing nipple.
￭ Seal the M6 opening on the bottle cap with the M6 threaded
stopper from the accessory set.
