3 Installation
883 Basic IC plus
￭￭￭￭￭￭￭￭
39
2
Select an adapter suitable for the pump tubing. The adapters are
included with the pump tubing connection with locking nut and filter
(6.2744.180).

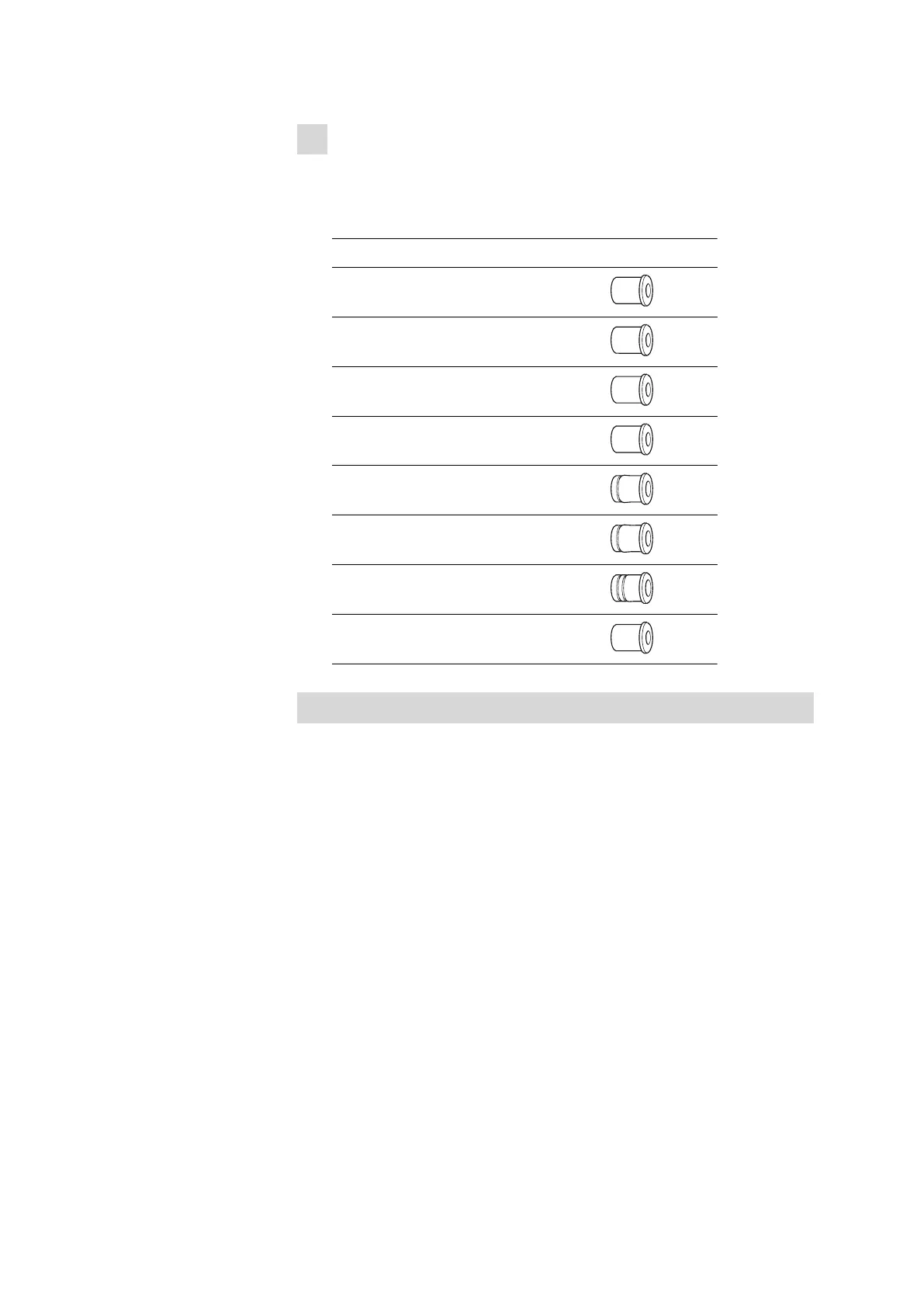

Table 3 Pump tubing and suitable adapters
Pump tubing Adapter
6.1826.310 (orange/green)
6.1826.320 (orange/yellow)
6.1826.330 (orange/white)
6.1826.340 (black/black)
6.1826.360 (white/white)
6.1826.380 (gray/gray)
6.1826.390 (yellow/yellow)
6.1826.420 (orange/yellow)
Installing the pump tubing
For this step, you need the following accessories:
￭ Tubing cartridge (6.2755.000)
￭ Pump tubing (6.1826.XXX)
￭ Coupling olive/UNF 10/32 (6.2744.034)
￭ Pump tubing connection with locking nut and filter (6.2744.180):
Includes a locknut, 3 adapters and a tubing olive with filter holder.
￭ 2 × pressure screw, short (6.2744.070)
