 Use a twisted pair for the connection of CAN-H and CAN-L
 The cores of the other pair are used jointly for CAN-GND
 The shield of the cable is led to the CAN shield connections for all nodes
 For suitable and Metronix-recommended cables please refer to chapter 8.10.4 Cable type and
design [X4]
 We advise against the use of plug adaptors for CAN bus cabling. Should this be necessary
nonetheless, make sure to use metal connector housings to connect the cable shield
 In order to keep interferences as low as possible make sure that
 Motor cables are not installed parallel to signal lines
 Motor cables comply with Metronix specifications
 Motor cables are properly shielded and grounded
 For further information on interference-free CAN bus cabling, please refer to the Controller Area
Network protocol specification, Version 2.0 by Robert Bosch GmbH, 1991

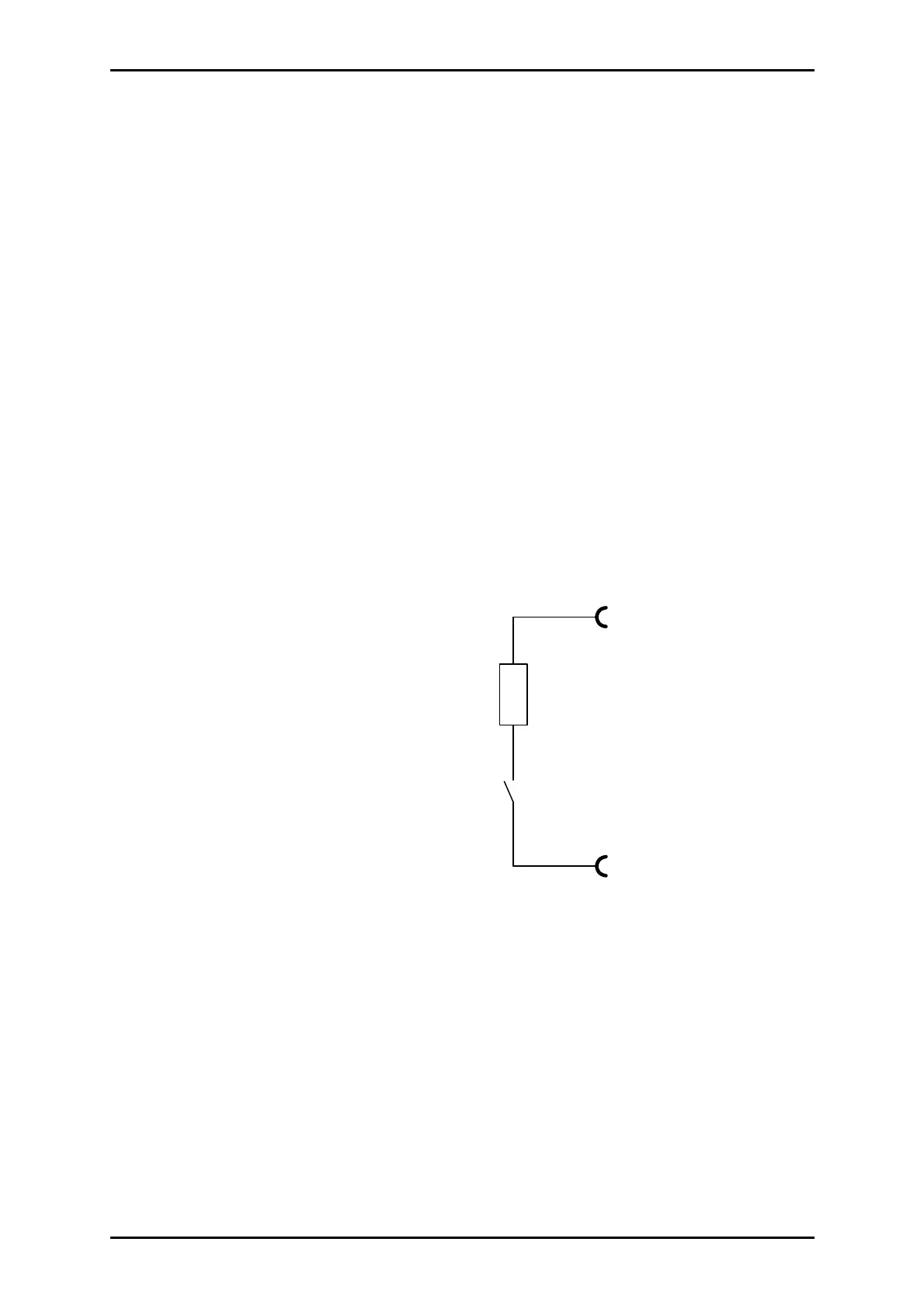

integrated
terminating resistor
120 
X4, Pin 7
(CAN-H)
X4, Pin 2
(CAN-L)
DIP switch
CAN TERM
Figure 26: Integrated CAN terminating resistor
