7.4 Mounting
The ARS 2100 SE series servo drives have attachment lugs on the top and the bottom of the device.
These lugs are used to mount the servo drive vertically to a control cabinet plate.
The lugs are part of the cooling body profile. This is why the best possible heat transfer to the control
cabinet plate has to be ensured.
Recommended tightening torque for an M5 screw of property class 5.6: 2.8 Nm.
Please use M5 screws for the mounting of the servo drives ARS 2102 SE, ARS 2105 SE and
ARS 2108 SE.
R2,5
R5
261 mm
21 mm
255,5 mm
28,8 mm
54,6 mm
4,5 mm
31,5 mm
247,3 mm
251 mm
R2,5 M4 flush head stud

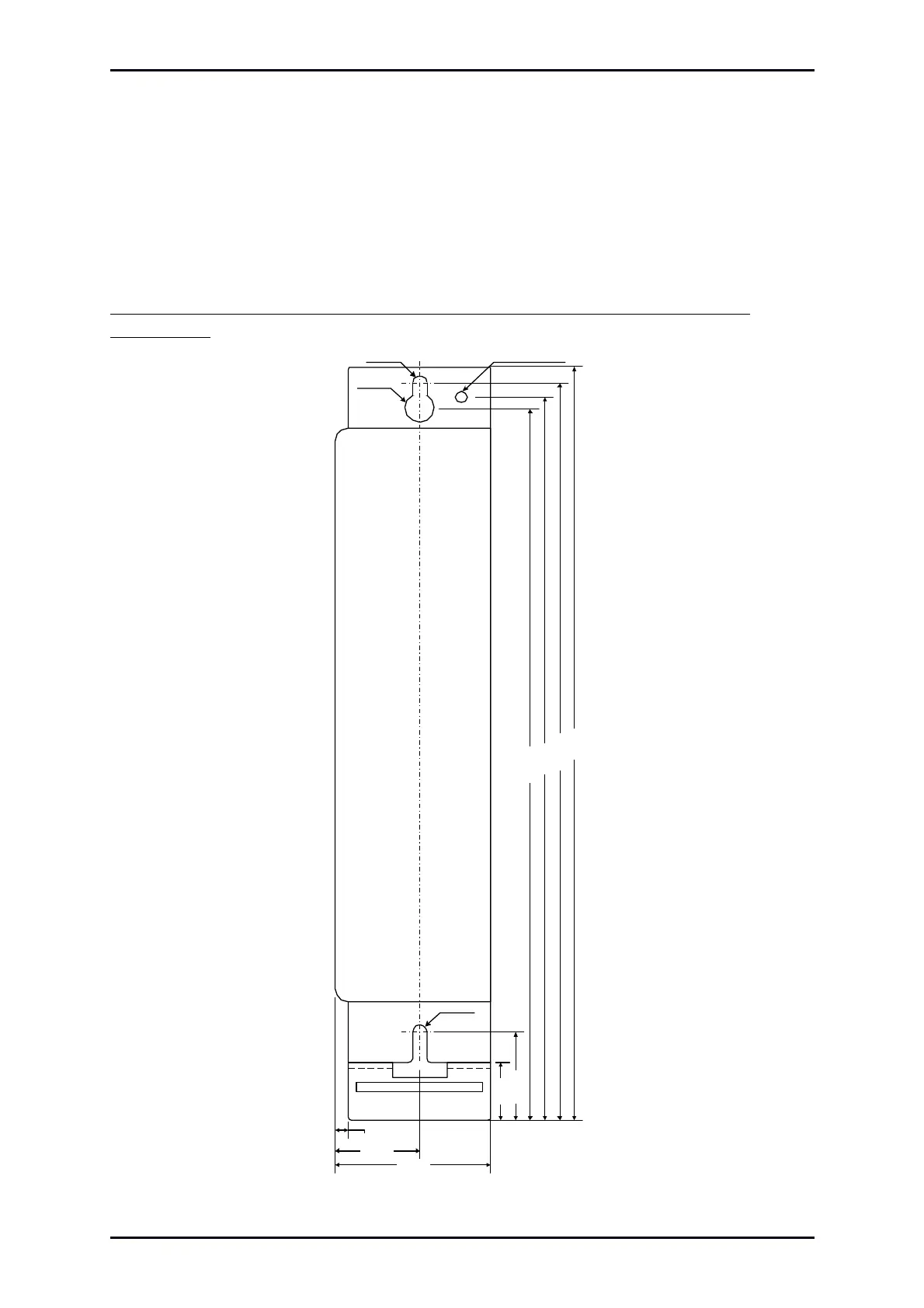

Figure 11: Servo drive ARS 2100 SE: Mounting plate
