8.3.5 Connection notes [X9]
PHOENIX
MINI-COMBICON
at X9
1
4
7
9
2
5
8
3
Power connector
6
PE
L
N
ZK+
GND24V
+24V
BR-INT
BR-CH
ZK-
PHOENIX
COMBICON
at X9
external
brake resistor
alternative !

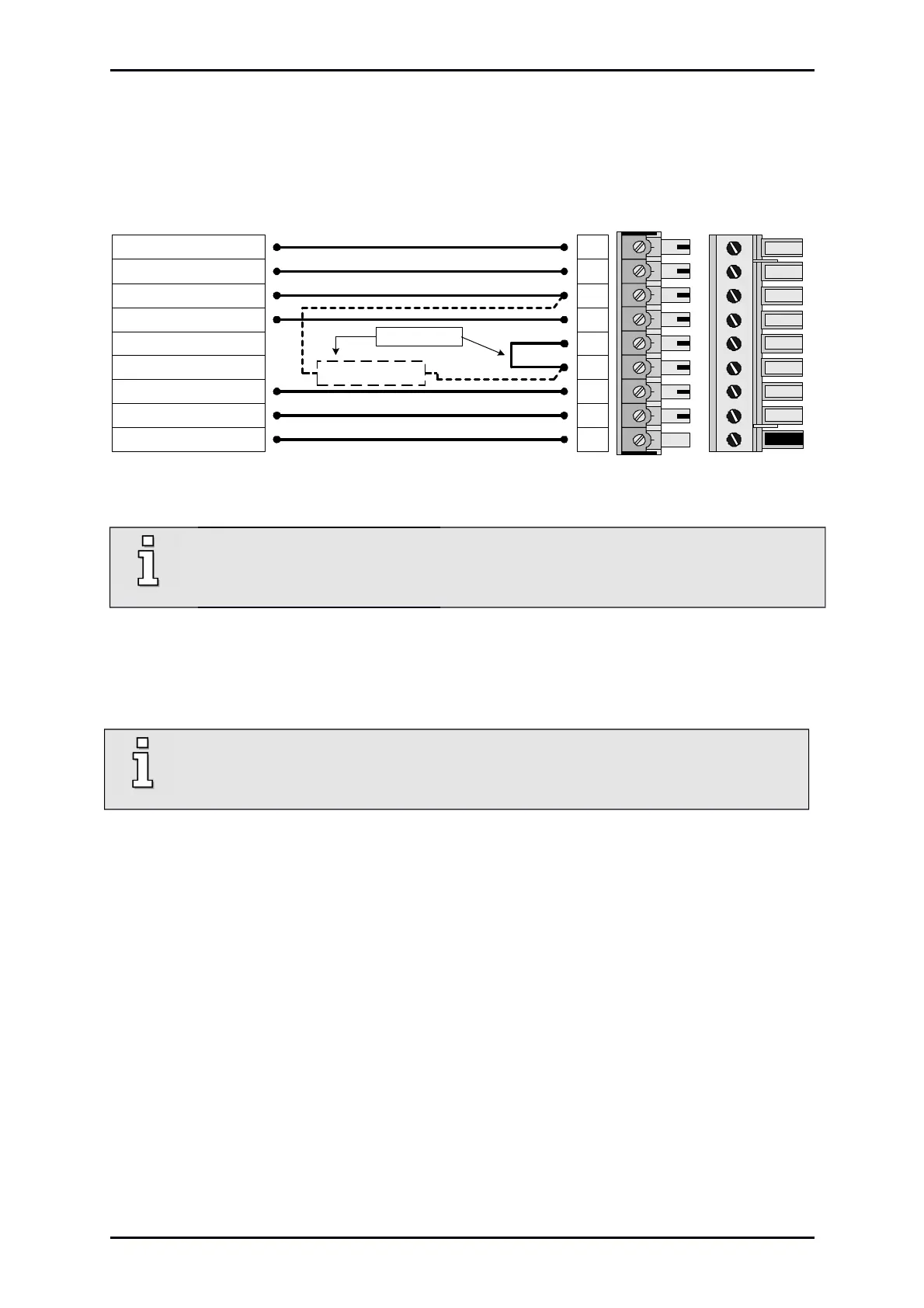

Figure 14: Supply [X9]
ARS 2102 SE and ARS 2105 SE:
ARS 2108 SE:
PHOENIX MINI-COMBICON MC 1,5/ 9-ST-5,08 BK
PHOENIX COMBICON MSTB 2,5/9-ST-5,08 BK
The servo drive ARS 2100 SE has an internal brake chopper with brake resistor. For more brake
power it is possible to connect an external brake resistor to the connector [X9].
If no external brake resistor is used, a bridge must be connected between PIN 5 and
PIN 6 so that the DC bus precharge, when the mains power supply is “ON”, and the DC
bus rapid discharge can function properly!
Product Manual „Servo drives ARS 2100 SE“ Version 5.0
