Page 70

[X1] I/O[X10] IN[X11] OUT

[X9]

[X9]: Power Supply

L: mains phase 230VAC

N: mains neutral conductor

ZK+: pos. DC bus voltage

ZK-: neg. DC bus voltage

BR-INT: intern brake chopper

BR-CH: brake chopper

PE: ground conductor from

mains

+24V: 24VDC

GND24V: GND 24VDC

[X11]: Incremental encoder output

[X10]: Incremental encoder input

[X1]: I/O interface

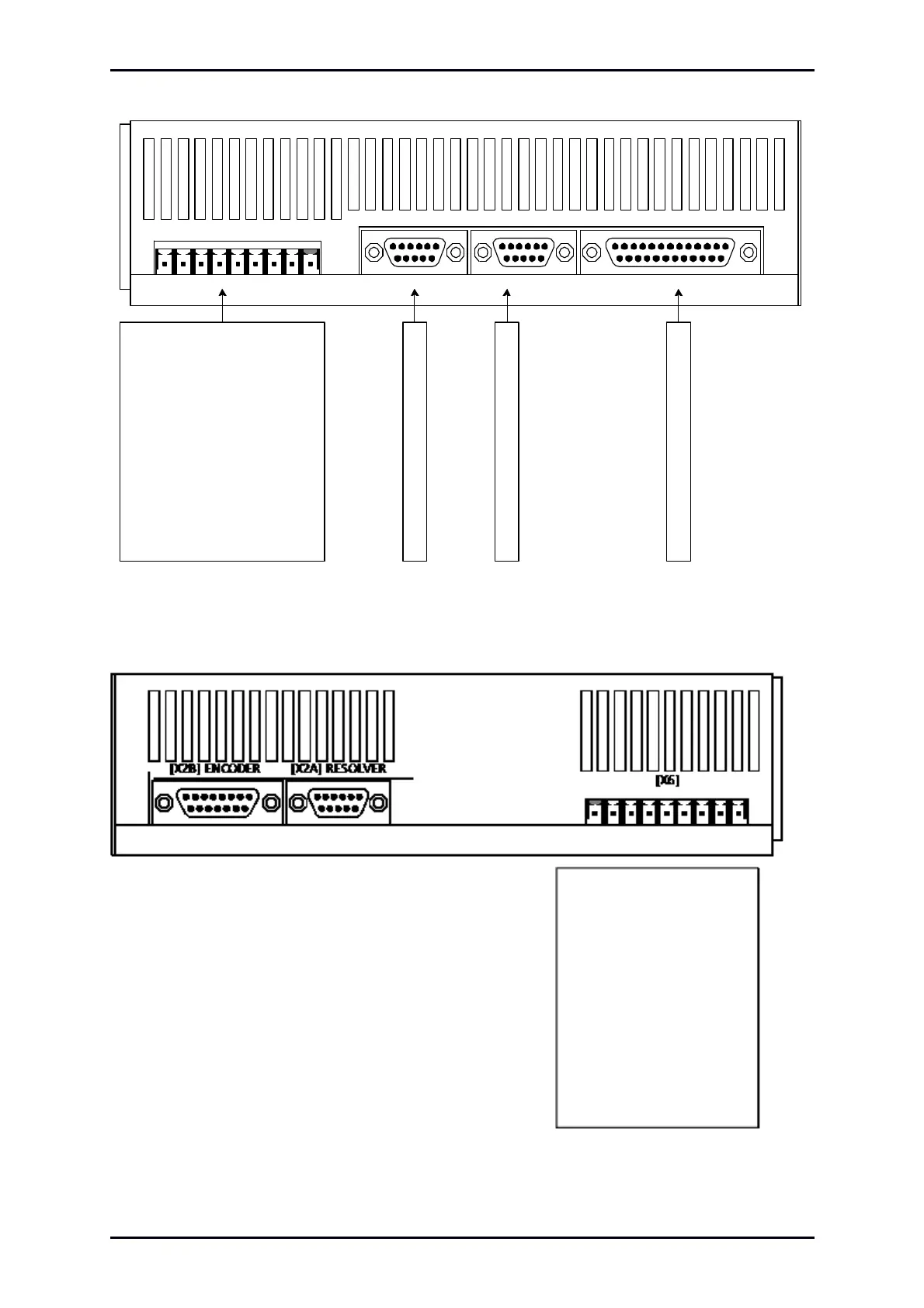

Figure 9: Servo drive ARS 2102 SE: Top view

Figure 10: Servo drive ARS 2102 SE: Bottom view

Product Manual „Servo drives ARS 2100 SE“ Version 5.0
