Micos Corvus ECO - Limit Switch Wiring

Manual Corvus-eco
Starting up 24

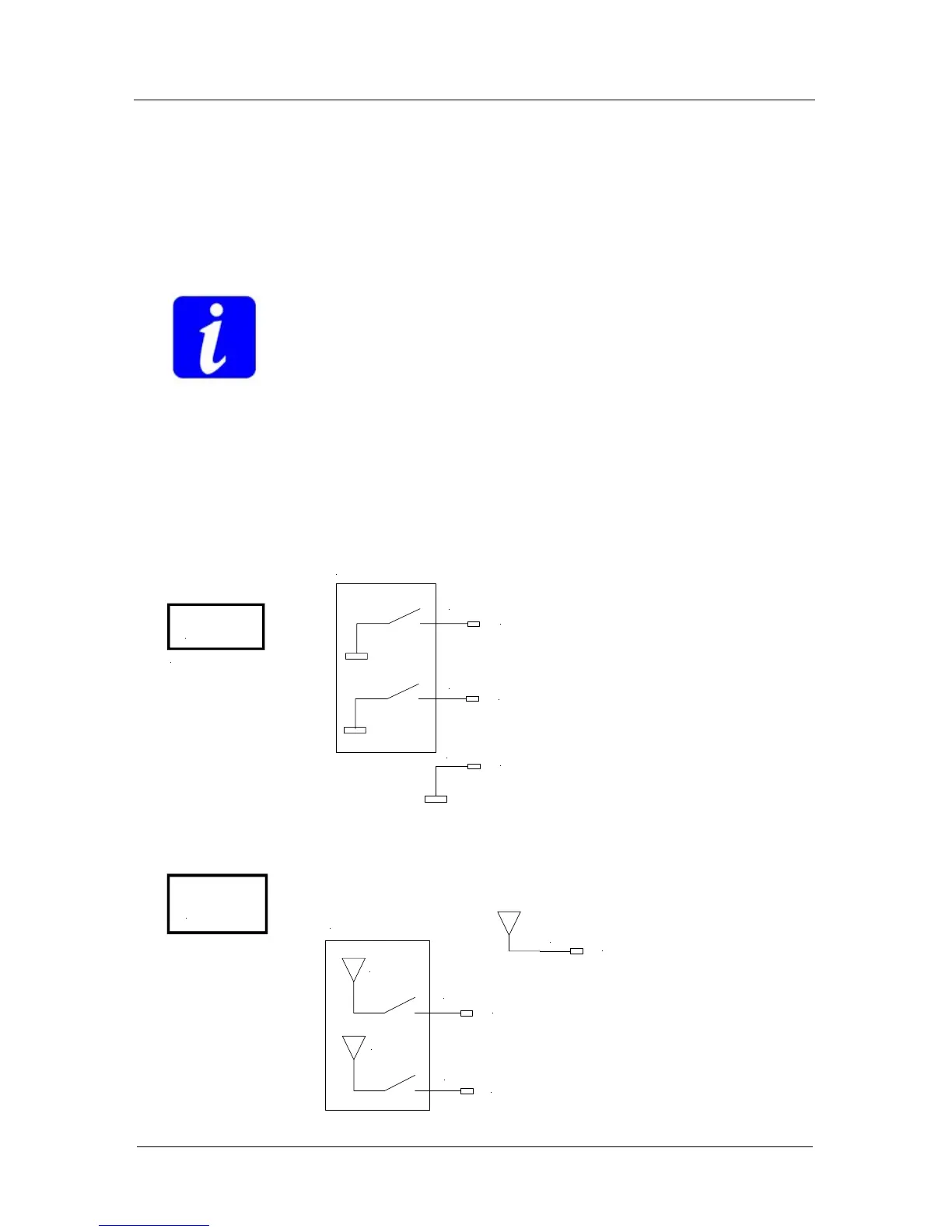

Limit switch wiring
Corvus-eco supports NPN and PNP limit switch wiring.
Default setting is NPN.
The settings NPN to PNP can only be changed from the
factory personal or from authorized experts.
Function of limit switch types:
• NPN = the limit switch closes or opens to Ground
• PNP = the limit switch closes or opens to VCC
The function op
ener or closer is determined with the Venus-1
command setsw.
NPN
factor
y
settin
g
cal-limit switch input
rm-limit switch input
6
7
5
GND
Limit switches
PNP
cal-limit switch input
rm-limit switch input
6
7
8
VCC
VCC
VCC
Limit switches
