Micos Corvus ECO - Motor and Limit Switch Connectors

Manual Corvus-eco
Connectors 87

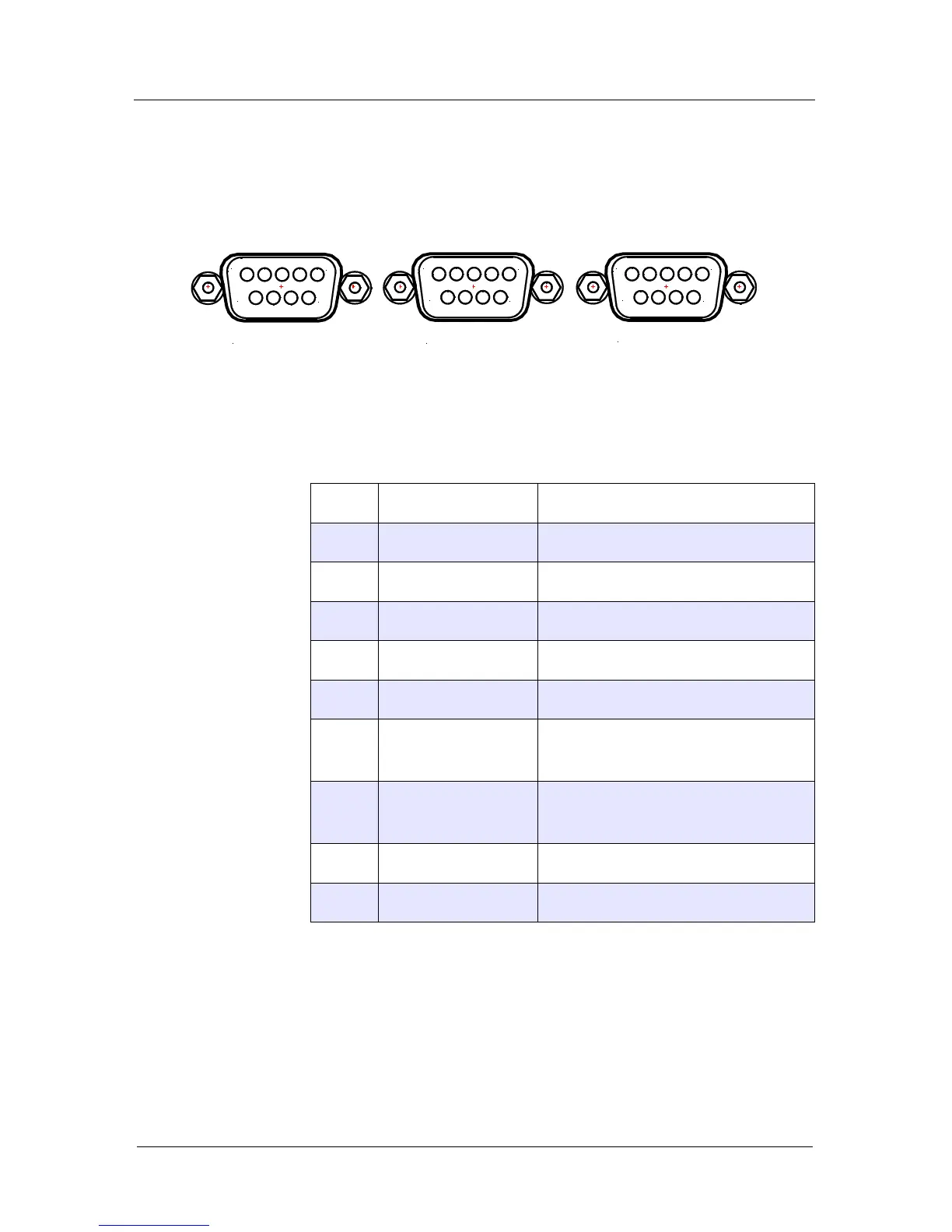

Motor and limit switch connectors
Motor control output and limit switch input a combined in this
connectors.
* factory setting: 5V
The settings can only be changed from the factory personal
or from authorized experts
Pin Name
Description
1 Ph 1A Motor Phase 1A
2 Ph 1B Motor Phase 1B
3 Ph 2A Motor Phase 2A
4 Ph 2B Motor Phase 2B
5 GND Ground
6cal
Limit switch input
(negative direction)
7 rm
Limit switch input
(positive direction)
8 * User 5V (12V) Output voltage 5V (12V)
9
TABLE 3. Motor connector
5
1
9
6
5
1
9
6
5
1
9
6
Motor Axis-2
Motor Axis-1
Motor Axis-3
