Micos Corvus ECO - Joystick Interface

Manual Corvus-eco
Connectors 93

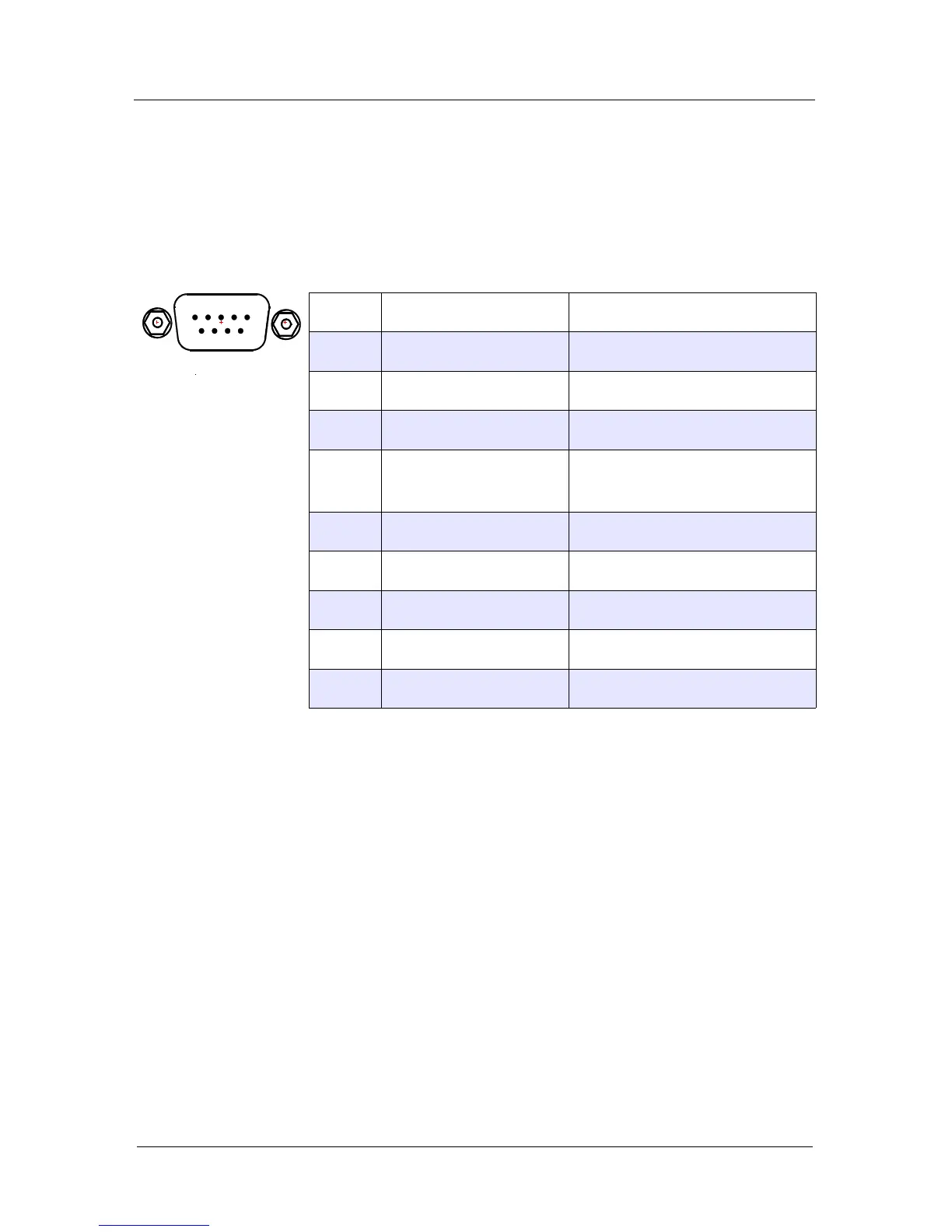

Joystick interface
Pin Name Function
1 Axis-1 (X) Analog input 0-3.3V
2 Axis-2 (Y) Analog input 0-3.3V
3 Axis-3 (Z) Analog input 0-3.3V
4
Joystick enable Enable input
GND = enables joystick
5 +5V (User) User output
6 SW Joystick button
7 GND GND
8 AGND analog GND
9 3.3V (analog) Power
TABLE 10. Joystick interface
Jo
y
stic
k
