Manual Corvus-eco

Connectors 91

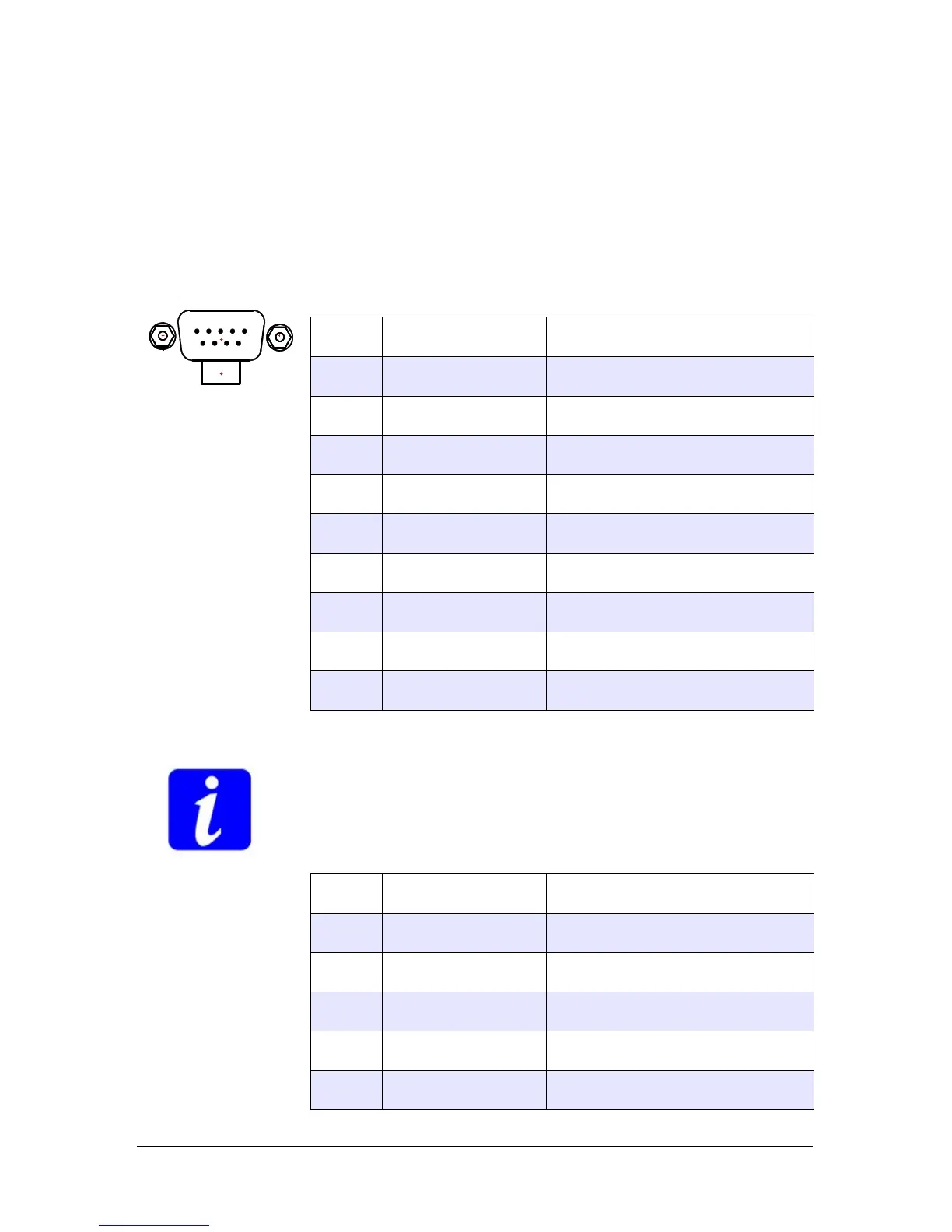

RS-232 / USB programming interface

This interface is used for the standard programming mode

The RS-232 interface is workin

g without flow control.

The handshake signals RTS and CTS are not supported.

DTR and DSR are internal connected.

Pin Name

Function

1 nc nc

2 RxD Corvus data input

3 TxD Corvus data output

4 DTR Connected with Pin6

5 GND GND

6 DSR Connected with Pin4

7 RTS

8CTS

TABLE 7. RS-232 programming interface

Pin Name Function

1 VCC USB +5V

2 D- Corvus data input

3 D+ Corvus data output

4nc

5 GND GND

TABLE 8. USB connector

RS-232 / Host

USB
