48

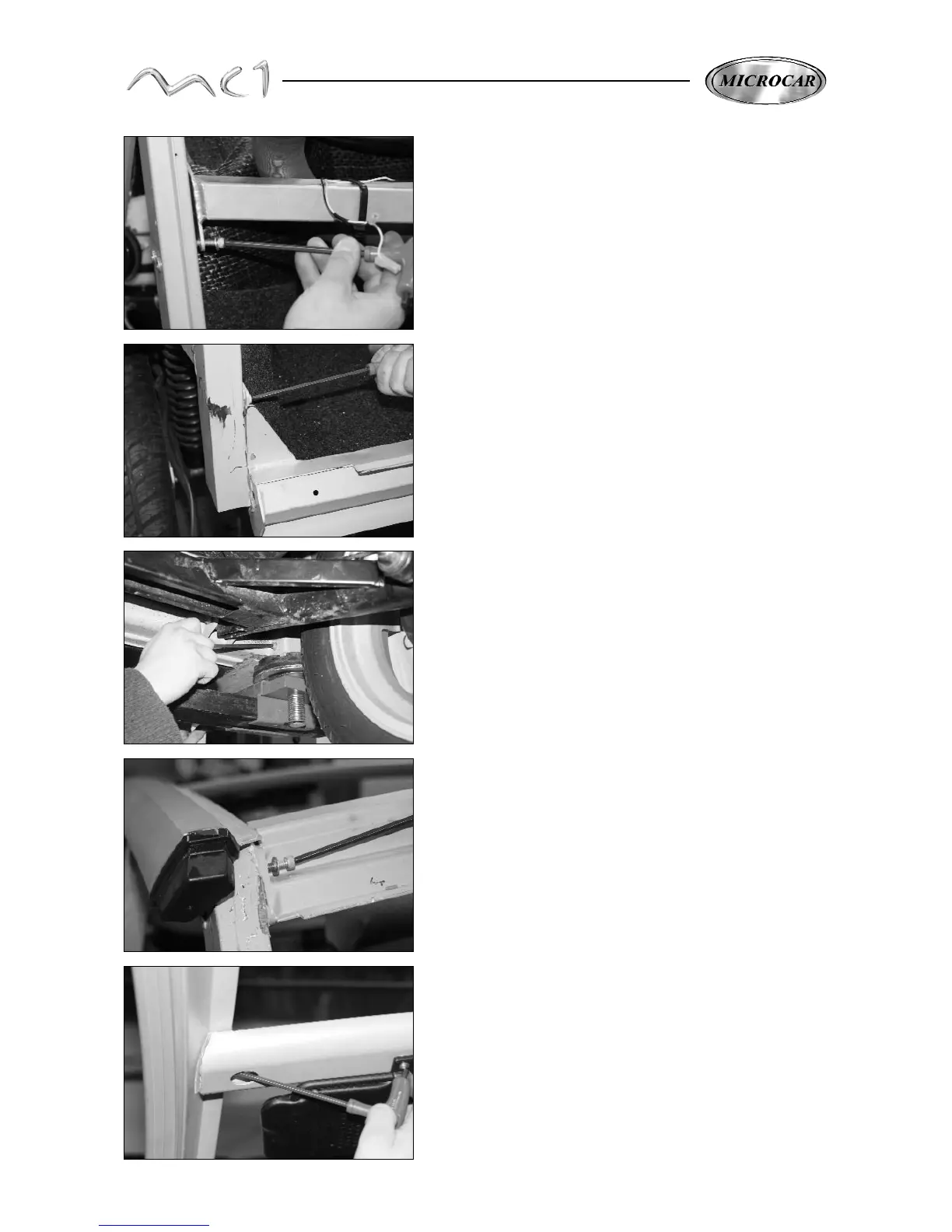

Remove the 2 fixing screws of the instrument panel cross beam
(set screw when fitting again 7N/m)
Remove the 2 fixing screws of the low back cross beam
(set screw when reassembly 9,5N/m)
Remove the 4 fixing screws of the rear axle support
(set screw when fitting again 9,5N/m)
Hold the body of the side and remove the fixing screw of the upper
cross beam of the windscreen (set screw when reassembly 9,5N/m)
Remove the 3 fixing screws of the upper back cross beam
(set screw when fitting again 9,5N/m)
